Suzuki DT 30C Parts Listings 1993 to 1997

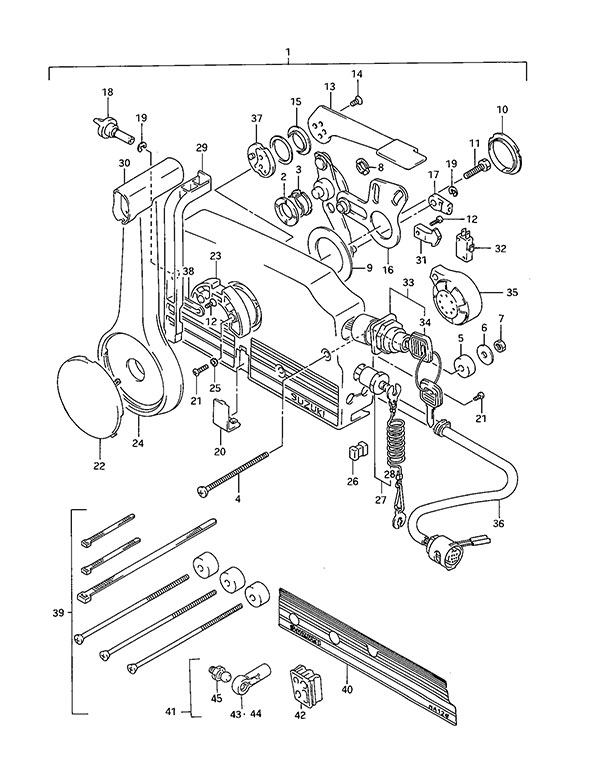

Fig. 41 - Opt: Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 67200-87D61 Side Mount Control Box (NLA)
SKU: 67200-87D61 Weight: 10.000000 Brand: Price: $ 617.61 |
Side Mount Control Box (NLA) | 1 | $ 617.61 | ||
| 1-2 | 67200-97E20-0ED Remote Control Box (NLA)
SKU: 67200-97E20-0ED Weight: 20.000000 Brand: Price: $ 335.40 |
Remote Control Box (NLA) | 1 | $ 335.40 | Std: DT30RC | |
| 2 | 67232-95600 Bushing
SKU: 67232-95600 Weight: 0.100000 Brand: Price: $ 6.50 |
Bushing | 1 | $ 6.50 | ||
| 3 | 67232-95620 Bushing (NLA)
SKU: 67232-95620 Weight: 0.060000 Brand: Price: $ 4.06 |
Bushing (NLA) | 1 | $ 4.06 | For Ref# 1-1 | |
| 4 | 67296-95600 Screw
SKU: 67296-95600 Weight: 0.060000 Brand: Price: $ 5.83 |
Screw | 3 | $ 5.83 | ||
| 5 | 67294-95600 Spacer
SKU: 67294-95600 Weight: 0.060000 Brand: Price: $ 4.67 |
Spacer | 3 | $ 4.67 | ||
| 6 | 09160-06104 Washer (6.5x24x2)
SKU: 09160-06104 Weight: 0.062500 Brand: Price: $ 2.64 |
Washer (6.5x24x2) | 3 | $ 2.64 | ||
| 7 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 3 | $ 1.82 | ||
| 8 | 67232-95610 Bushing (NLA)
SKU: 67232-95610 Weight: 0.060000 Brand: Price: $ 4.11 |
Bushing (NLA) | 2 | $ 4.11 | For Ref# 1-1 | |
| 9 | 67253-95600 Washer (NLA)
SKU: 67253-95600 Weight: 0.100000 Brand: Price: $ 2.64 |
Washer (NLA) | 1 | $ 2.64 | ||
| 10 | 67252-95600 Bushing
SKU: 67252-95600 Weight: 0.060000 Brand: Price: $ 5.10 |
Bushing | 2 | $ 5.10 | ||
| 11 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 1 | $ 3.57 | ||
| 12 | 67296-94300 Screw (4x10)
SKU: 67296-94300 Weight: 0.060000 Brand: Price: $ 1.31 |
Screw (4x10) | 3 | $ 1.31 | ||
| 13 | 67241-95680 Free Throttle Lever (Gray) (NLA)
SKU: 67241-95680 Weight: 0.100000 Brand: Price: $ 16.27 |
Free Throttle Lever (Gray) (NLA) | 1 | $ 16.27 | ||
| 14 | 09126-05003 Screw (5x12)
SKU: 09126-05003 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (5x12) | 2 | $ 2.06 | ||
| 15 | 67243-95600 Bushing (NLA)
SKU: 67243-95600 Weight: 0.060000 Brand: Price: $ 3.16 |
Bushing (NLA) | 1 | $ 3.16 | ||
| 16 | 67220-95620 Plate Assembly
SKU: 67220-95620 Weight: 0.500000 Brand: Price: $ 96.86 |
Plate Assembly | 1 | $ 96.86 | ||
| 17 | 67275-95600 Cable End
SKU: 67275-95600 Weight: 0.060000 Brand: Price: $ 8.02 |
Cable End | 2 | $ 8.02 | ||
| 18 | 67223-95600 Brake Adjustment Knob
SKU: 67223-95600 Weight: 0.100000 Brand: Price: $ 13.52 |
Brake Adjustment Knob | 1 | $ 13.52 | ||
| 19 | 67292-94300 E Ring
SKU: 67292-94300 Weight: 0.060000 Brand: Price: $ 1.22 |
E Ring | 3 | $ 1.22 | ||
| 20 | 67267-95610 Wire Cover (Black)
SKU: 67267-95610 Weight: 0.060000 Brand: Price: $ 6.14 |
Wire Cover (Black) | 1 | $ 6.14 | ||
| 21 | 67296-95610 Screw
SKU: 67296-95610 Weight: 0.060000 Brand: Price: $ 2.85 |
Screw | 7 | $ 2.85 | ||
| 22 | 67257-95610 Lever Cap (Black)
SKU: 67257-95610 Weight: 0.060000 Brand: Price: $ 7.01 |
Lever Cap (Black) | 1 | $ 7.01 | ||
| 23 | 67256-95600 Neutral Lock Holder
SKU: 67256-95600 Weight: 0.060000 Brand: Price: $ 10.73 |
Neutral Lock Holder | 1 | $ 10.73 | ||
| 24 | 67251-95680 Handle Lever (Gray) (NLA)
SKU: 67251-95680 Weight: 1.000000 Brand: Price: $ 59.68 |
Handle Lever (Gray) (NLA) | 1 | $ 59.68 | ||
| 25 | 67297-95600 Washer
SKU: 67297-95600 Weight: 0.060000 Brand: Price: $ 2.96 |
Washer | 2 | $ 2.96 | ||
| 26 | 67273-95600 Spacer
SKU: 67273-95600 Weight: 0.060000 Brand: Price: $ 3.88 |
Spacer | 1 | $ 3.88 | ||
| 27 | 37820-92E05 Emergency Stop Switch Assembly
SKU: 37820-92E05 Weight: 0.250000 Brand: Price: $ 42.80 |
Emergency Stop Switch Assembly | 1 | $ 42.80 | ||
| 28 | 37823-92E02 Stop Switch Lanyard
SKU: 37823-92E02 Weight: 0.250000 Brand: Price: $ 19.68 |
Stop Switch Lanyard | 1 | $ 19.68 | ||
| 29 | 67255-95600 Neutral Lock Arm
SKU: 67255-95600 Weight: 0.060000 Brand: Price: $ 14.78 |
Neutral Lock Arm | 1 | $ 14.78 | ||
| 30 | 67261-95610 Handle Grip no PTT
SKU: 67261-95610 Weight: 0.250000 Brand: Price: $ 15.24 |
Handle Grip no PTT | 1 | $ 15.24 | ||
| 31 | 67238-87D00 Drive Gear
SKU: 67238-87D00 Weight: 0.100000 Brand: Price: $ 48.50 |
Drive Gear | 1 | $ 48.50 | ||
| 32 | 37721-94601 Neutral Switch Assembly
SKU: 37721-94601 Weight: 0.060000 Brand: Price: $ 26.93 |
Neutral Switch Assembly | 1 | $ 26.93 | ||
| 33 | 37110-99E02 Ignition Switch Assembly
SKU: 37110-99E02 Weight: 0.300000 Brand: Price: $ 96.58 |
Ignition Switch Assembly | 1 | $ 96.58 | ||
| 34-1 | 37141-92E00 (11) Ignition Key
SKU: 37141-92E00 Weight: 0.060000 Brand: Price: $ 14.26 |
(11) Ignition Key | 1 | $ 14.26 | ||
| 34-2 | 37141-92E10 (12) Ignition Key
SKU: 37141-92E10 Weight: 0.060000 Brand: Price: $ 14.26 |
(12) Ignition Key | 1 | $ 14.26 | ||
| 34-3 | 37141-92E20 (13) Ignition Key
SKU: 37141-92E20 Weight: 0.060000 Brand: Price: $ 14.26 |
(13) Ignition Key | 1 | $ 14.26 | ||
| 34-4 | 37141-92E30 (14) Ignition Key
SKU: 37141-92E30 Weight: 0.060000 Brand: Price: $ 14.26 |
(14) Ignition Key | 1 | $ 14.26 | ||
| 34-5 | 37141-92E40 (15) Ignition Key
SKU: 37141-92E40 Weight: 0.060000 Brand: Price: $ 14.81 |
(15) Ignition Key | 1 | $ 14.81 | ||
| 34-6 | 37141-92E50 (16) Ignition Key
SKU: 37141-92E50 Weight: 0.060000 Brand: Price: $ 14.37 |
(16) Ignition Key | 1 | $ 14.37 | ||
| 34-7 | 37141-92E60 (17) Ignition Key
SKU: 37141-92E60 Weight: 0.060000 Brand: Price: $ 14.26 |
(17) Ignition Key | 1 | $ 14.26 | ||
| 34-8 | 37141-92E70 (18) Ignition Key
SKU: 37141-92E70 Weight: 0.060000 Brand: Price: $ 13.79 |
(18) Ignition Key | 1 | $ 13.79 | ||
| 34-9 | 37141-92E80 (19) Ignition Key
SKU: 37141-92E80 Weight: 0.060000 Brand: Price: $ 14.26 |
(19) Ignition Key | 1 | $ 14.26 | ||
| 34-10 | 37141-92E90 (20) Ignition Key
SKU: 37141-92E90 Weight: 0.060000 Brand: Price: $ 14.81 |
(20) Ignition Key | 1 | $ 14.81 | ||
| 35 | 38500-92X50 Warning Buzzer
SKU: 38500-92X50 Weight: 0.260000 Brand: Price: $ 68.71 |
Warning Buzzer | 1 | $ 68.71 | ||
| 36-1 | 36620-92E00 21' Main Wire Harness (NLA)
SKU: 36620-92E00 Weight: 3.860000 Brand: Price: $ 165.49 |
21' Main Wire Harness (NLA) | 1 | $ 165.49 | For Ref# 1-1 | |
| 36-2 | 36620-95D00 Wiring Harness (NLA)
SKU: 36620-95D00 Weight: 0.100000 Brand: Price: $ 141.74 |
Wiring Harness (NLA) | 1 | $ 141.74 | For Ref# 1-2 | |
| 37 | 67245-95600 Free Throttle Drum (NLA)
SKU: 67245-95600 Weight: 0.100000 Brand: Price: $ 14.51 |
Free Throttle Drum (NLA) | 1 | $ 14.51 | ||
| 38 | 67258-87D00 Neutral Arm Bracket
SKU: 67258-87D00 Weight: 0.060000 Brand: Price: $ 4.76 |
Neutral Arm Bracket | 1 | $ 4.76 | ||
| 39 | 67140-95600 Replaced by 67140-95601
SKU: 67140-95600 Weight: 0.300000 Brand: Price: $ 35.78 |
Replaced by 67140-95601 | 1 | $ 35.78 | ||
| 40 | 67282-95610 Port Decal (Black) (NLA)
SKU: 67282-95610 Weight: 0.060000 Brand: Price: $ 7.05 |
Port Decal (Black) (NLA) | 1 | $ 7.05 | ||
| 41 | 67130-95810 Remocon Parts Assembly (NLA)
SKU: 67130-95810 Weight: 0.100000 Brand: Price: $ 10.18 |
Remocon Parts Assembly (NLA) | 1 | $ 10.18 | ||
| 42 | 61124-95D20 Cable Grommet
SKU: 61124-95D20 Weight: 0.060000 Brand: Price: $ 10.91 |
Cable Grommet | 1 | $ 10.91 | ||
| 43 | 67466-95200 Cable Connector
SKU: 67466-95200 Weight: 0.060000 Brand: Price: $ 5.35 |
Cable Connector | 1 | $ 5.35 | Throttle | |
| 44 | 67467-94404 Cable Connector
SKU: 67467-94404 Weight: 0.060000 Brand: Price: $ 9.56 |
Cable Connector | 1 | $ 9.56 | Clutch | |
| 45 | 09119-06047 Pivot Ball
SKU: 09119-06047 Weight: 0.060000 Brand: Price: $ 6.99 |
Pivot Ball | 1 | $ 6.99 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
