Suzuki DT 30C Parts Listings 1988 to 1997

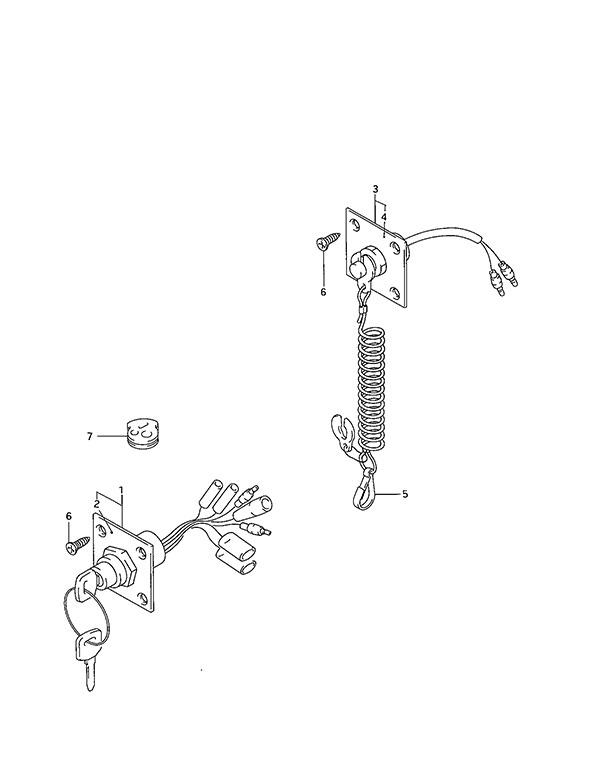

Fig. 39 - Opt: Panel Switch
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 37100-92E00 Ignition Switch Panel Assembly (NLA)
SKU: 37100-92E00 Weight: 0.100000 Brand: Price: $ 60.05 |
Ignition Switch Panel Assembly (NLA) | 1 | $ 60.05 | ||
| 2 | 37139-92E01 Single Ingition Switch Panel
SKU: 37139-92E01 Weight: 0.100000 Brand: Price: $ 45.23 |
Single Ingition Switch Panel | 1 | $ 45.23 | ||
| 3 | 37803-92E00 Emergency Stop Switch Assembly (NLA)
SKU: 37803-92E00 Weight: 0.260000 Brand: Price: $ 47.40 |
Emergency Stop Switch Assembly (NLA) | 1 | $ 47.40 | ||
| 4 | 37825-92E00 Emergency Switch Panel
SKU: 37825-92E00 Weight: 0.100000 Brand: Price: $ 42.14 |
Emergency Switch Panel | 1 | $ 42.14 | ||
| 5 | 37823-92E02 Stop Switch Lanyard
SKU: 37823-92E02 Weight: 0.250000 Brand: Price: $ 19.68 |
Stop Switch Lanyard | 1 | $ 19.68 | ||
| 6 | 03112-05203 Screw (NLA)
SKU: 03112-05203 Weight: 0.100000 Brand: Price: $ 0.98 |
Screw (NLA) | 4 | $ 0.98 | ||
| 7 | 36658-95600 Cable Grommet (NLA)
SKU: 36658-95600 Weight: 0.100000 Brand: Price: $ 5.94 |
Cable Grommet (NLA) | 1 | $ 5.94 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
