Suzuki DT 30C Parts Listings 1988 to 1997

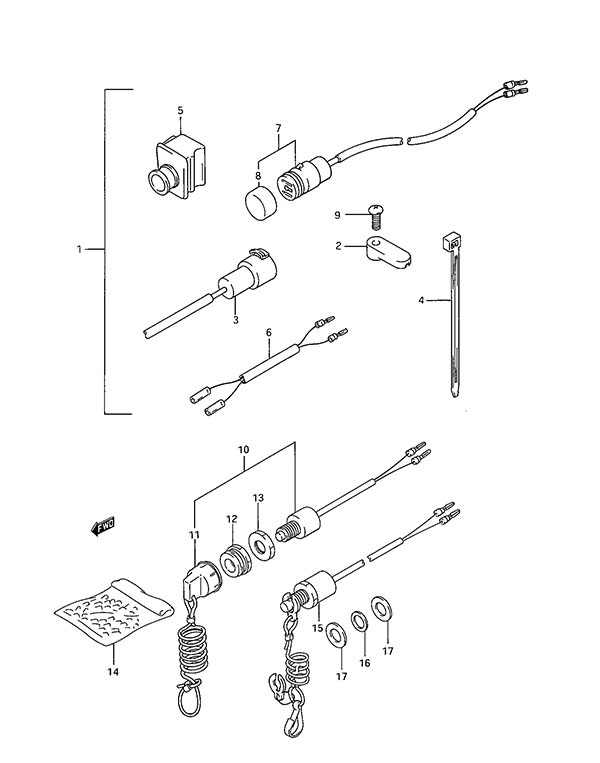

Fig. 36 - Opt: Electrical (Manual Starter 3)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 39600-95D11 Receptacle Set (NLA)
SKU: 39600-95D11 Weight: 0.500000 Brand: Price: $ 61.97 |
Receptacle Set (NLA) | 1 | $ 61.97 | ||
| 2 | 33815-87D00 Cable Stopper (NLA)
SKU: 33815-87D00 Weight: 0.100000 Brand: Price: $ 2.93 |
Cable Stopper (NLA) | 1 | $ 2.93 | ||
| 3 | 39602-93900 Lamp Cord Plug Assembly
SKU: 39602-93900 Weight: 0.500000 Brand: Price: $ 41.23 |
Lamp Cord Plug Assembly | 1 | $ 41.23 | ||
| 4 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 5 | 39603-95D01 Grommet (NLA)
SKU: 39603-95D01 Weight: 0.100000 Brand: Price: $ 6.16 |
Grommet (NLA) | 1 | $ 6.16 | ||
| 7 | 39601-95D00 Lighting Receptacle Assembly
SKU: 39601-95D00 Weight: 0.250000 Brand: Price: $ 39.79 |
Lighting Receptacle Assembly | 1 | $ 39.79 | ||
| 8 | 36634-93910 Connector Cap
SKU: 36634-93910 Weight: 0.060000 Brand: Price: $ 4.66 |
Connector Cap | 1 | $ 4.66 | ||
| 9 | 02142-06257 SCREW
SKU: 02142-06257 Weight: 0.060000 Brand: Price: $ 0.26 |
SCREW | 1 | $ 0.26 | ||
| 10 | 37820-94461 Emergency Stop Switch Assembly
SKU: 37820-94461 Weight: 0.150000 Brand: Price: $ 51.84 |
Emergency Stop Switch Assembly | 1 | $ 51.84 | 1988 to 1992 | |
| 11 | 37823-94401 Emergency Stop Switch Cap
SKU: 37823-94401 Weight: 0.080000 Brand: Price: $ 16.35 |
Emergency Stop Switch Cap | 1 | $ 16.35 | ||
| 12 | 37825-89E00 Upper Nut (NLA)
SKU: 37825-89E00 Weight: 0.100000 Brand: Price: $ 3.55 |
Upper Nut (NLA) | 1 | $ 3.55 | ||
| 13 | 37826-89E00 Lower Nut (NLA)
SKU: 37826-89E00 Weight: 0.100000 Brand: Price: $ 3.10 |
Lower Nut (NLA) | 1 | $ 3.10 | ||
| 14 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 | ||
| 15 | 37830-95D03 Emergency Stop Switch Assembly
SKU: 37830-95D03 Weight: 0.250000 Brand: Price: $ 45.92 |
Emergency Stop Switch Assembly | 1 | $ 45.92 | 1993 to 1997 | |
| 16 | 09160-12087 Washer
SKU: 09160-12087 Weight: 0.200000 Brand: Price: $ 1.99 |
Washer | 1 | $ 1.99 | 1993 to 1997 | |
| 17 | 09160-12067 Washer (12.5x23x1.0)
SKU: 09160-12067 Weight: 0.060000 Brand: Price: $ 3.13 |
Washer (12.5x23x1.0) | 2 | $ 3.13 | 1993 to 1997 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
