Suzuki DT 30C Parts Listings 1988 to 1997

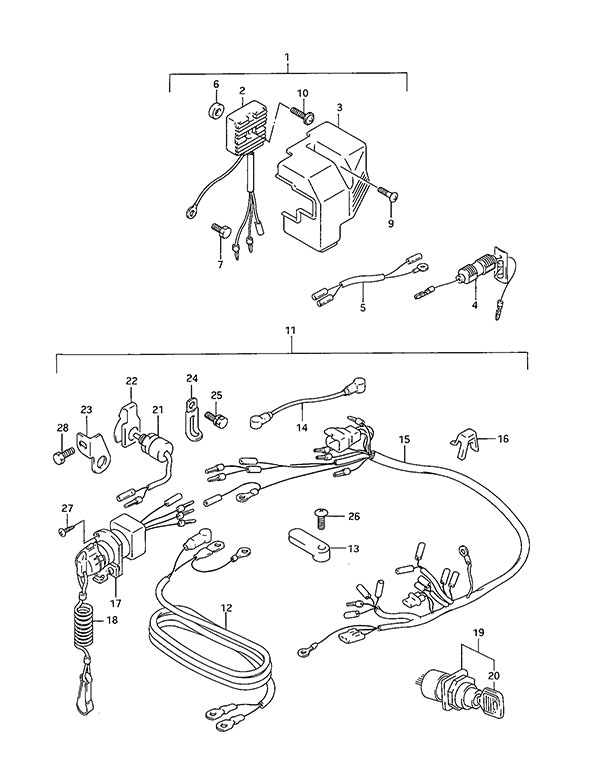

Fig. 35 - Opt: Electrical (Manual Starter 2)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 32801-95D12 Rectifier Set (NLA)
SKU: 32801-95D12 Weight: 0.550000 Brand: Price: $ 77.43 |
Rectifier Set (NLA) | 1 | $ 77.43 | 1991 to 1993 | |
| 1-2 | 32801-95D00 Rectifier Set (NLA)
SKU: 32801-95D00 Weight: 0.100000 Brand: Price: $ 125.63 |
Rectifier Set (NLA) | 1 | $ 125.63 | 1988 to 1990 1994 to 1997 | |
| 2-1 | 32800-95D10 Rectifier & Regulator Assembly (NLA)
SKU: 32800-95D10 Weight: 0.200000 Brand: Price: $ 124.48 |
Rectifier & Regulator Assembly (NLA) | 1 | $ 124.48 | 1991 to 1993 | |
| 2-2 | 32800-95D02 Rectifier & Regulator Assembly
SKU: 32800-95D02 Weight: 0.250000 Brand: Price: $ 89.98 |
Rectifier & Regulator Assembly | 1 | $ 89.98 | 1988 to 1990 1994 to 1997 | |
| 3 | 32825-95D00 Rectifier & Relay Cover (NLA)
SKU: 32825-95D00 Weight: 0.500000 Brand: Price: $ 8.47 |
Rectifier & Relay Cover (NLA) | 1 | $ 8.47 | ||
| 4 | 36740-95253 Fuse Case Assembly
SKU: 36740-95253 Weight: 0.100000 Brand: Price: $ 18.47 |
Fuse Case Assembly | 1 | $ 18.47 | ||
| 5 | 36895-95D00 Lead (NLA)
SKU: 36895-95D00 Weight: 0.100000 Brand: Price: $ 7.85 |
Lead (NLA) | 1 | $ 7.85 | ||
| 6 | 09180-06232 Spacer (NLA)
SKU: 09180-06232 Weight: 0.100000 Brand: Price: $ 1.86 |
Spacer (NLA) | 1 | $ 1.86 | 1988 to 1993 | |
| 7 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 | ||
| 9 | 09125-05115 Screw (5x16)
SKU: 09125-05115 Weight: 0.062500 Brand: Price: $ 3.26 |
Screw (5x16) | 2 | $ 3.26 | ||
| 10 | 02142-05257 SCREW 5 X 20
SKU: 02142-05257 Weight: 0.062500 Brand: Price: $ 1.48 |
SCREW 5 X 20 | 1 | $ 1.48 | ||
| 11-1 | 33800-95D21 Starter Cable/Switch Set (NLA)
SKU: 33800-95D21 Weight: 5.000000 Brand: Price: $ 269.41 |
Starter Cable/Switch Set (NLA) | 1 | $ 269.41 | 1988 to 1992 | |
| 11-2 | 33800-95D33 Starter Cable/Switch Set (NLA)
SKU: 33800-95D33 Weight: 5.000000 Brand: Price: $ 287.86 |
Starter Cable/Switch Set (NLA) | 1 | $ 287.86 | 1993 to 1997 | |
| 12 | 33810-95D02 Starter Motor Cable (NLA)
SKU: 33810-95D02 Weight: 5.000000 Brand: Price: $ 72.45 |
Starter Motor Cable (NLA) | 1 | $ 72.45 | ||
| 13 | 33815-87D00 Cable Stopper (NLA)
SKU: 33815-87D00 Weight: 0.100000 Brand: Price: $ 2.93 |
Cable Stopper (NLA) | 1 | $ 2.93 | ||
| 14 | 33820-93900 Cable Assembly
SKU: 33820-93900 Weight: 0.500000 Brand: Price: $ 15.24 |
Cable Assembly | 1 | $ 15.24 | ||
| 15-1 | 36610-95D32 Wiring Harness Assembly (NLA)
SKU: 36610-95D32 Weight: 5.000000 Brand: Price: $ 55.27 |
Wiring Harness Assembly (NLA) | 1 | $ 55.27 | 1988 to 1992 | |
| 15-2 | 36610-95DC0 Wiring Harness Assembly (NLA)
SKU: 36610-95DC0 Weight: 5.000000 Brand: Price: $ 115.13 |
Wiring Harness Assembly (NLA) | 1 | $ 115.13 | 1993 to 1997 | |
| 16 | 36641-94710 Cable Stopper (NLA)
SKU: 36641-94710 Weight: 0.100000 Brand: Price: $ 2.53 |
Cable Stopper (NLA) | 1 | $ 2.53 | ||
| 17 | 37110-95D03 Ignition Switch Assembly (NLA)
SKU: 37110-95D03 Weight: 0.500000 Brand: Price: $ 179.74 |
Ignition Switch Assembly (NLA) | 1 | $ 179.74 | 1988 to 1992 | |
| 18-1 | 37141-95D10 (101) Ignition Key (NLA)
SKU: 37141-95D10 Weight: 0.200000 Brand: Price: $ 18.64 |
(101) Ignition Key (NLA) | 1 | $ 18.64 | 1988 to 1992 | |
| 18-2 | 37141-95D50 (105) Ignition Key (NLA)
SKU: 37141-95D50 Weight: 0.100000 Brand: Price: $ 32.28 |
(105) Ignition Key (NLA) | 1 | $ 32.28 | 1988 to 1992 | |
| 19 | 37110-95D21 Ignition Switch Assembly (NLA)
SKU: 37110-95D21 Weight: 0.500000 Brand: Price: $ 76.76 |
Ignition Switch Assembly (NLA) | 1 | $ 76.76 | 1993 to 1997 | |
| 20-1 | 37141-92E00 (11) Ignition Key
SKU: 37141-92E00 Weight: 0.060000 Brand: Price: $ 14.26 |
(11) Ignition Key | 1 | $ 14.26 | 1993 to 1997 | |
| 20-2 | 37141-92E10 (12) Ignition Key
SKU: 37141-92E10 Weight: 0.060000 Brand: Price: $ 14.26 |
(12) Ignition Key | 1 | $ 14.26 | 1993 to 1997 | |
| 20-3 | 37141-92E20 (13) Ignition Key
SKU: 37141-92E20 Weight: 0.060000 Brand: Price: $ 14.26 |
(13) Ignition Key | 1 | $ 14.26 | 1993 to 1997 | |
| 20-4 | 37141-92E30 (14) Ignition Key
SKU: 37141-92E30 Weight: 0.060000 Brand: Price: $ 14.26 |
(14) Ignition Key | 1 | $ 14.26 | 1993 to 1997 | |
| 20-5 | 37141-92E40 (15) Ignition Key
SKU: 37141-92E40 Weight: 0.060000 Brand: Price: $ 14.81 |
(15) Ignition Key | 1 | $ 14.81 | 1993 to 1997 | |
| 20-6 | 37141-92E50 (16) Ignition Key
SKU: 37141-92E50 Weight: 0.060000 Brand: Price: $ 14.37 |
(16) Ignition Key | 1 | $ 14.37 | 1993 to 1997 | |
| 21 | 37721-94406 Neutral Switch Assembly
SKU: 37721-94406 Weight: 0.200000 Brand: Price: $ 29.49 |
Neutral Switch Assembly | 1 | $ 29.49 | ||
| 22 | 37725-95300 Neutral Switch Actuator
SKU: 37725-95300 Weight: 0.125000 Brand: Price: $ 5.67 |
Neutral Switch Actuator | 1 | $ 5.67 | ||
| 23 | 37726-95D02 Switch Bracket
SKU: 37726-95D02 Weight: 0.100000 Brand: Price: $ 6.21 |
Switch Bracket | 1 | $ 6.21 | ||
| 24 | 09404-08206 Clamp (L:82)
SKU: 09404-08206 Weight: 0.060000 Brand: Price: $ 3.21 |
Clamp (L:82) | 1 | $ 3.21 | ||
| 25 | 01580-06167 BOLT
SKU: 01580-06167 Weight: 0.100000 Brand: Price: $ 2.88 |
BOLT | 1 | $ 2.88 | ||
| 26 | 02142-06257 SCREW
SKU: 02142-06257 Weight: 0.060000 Brand: Price: $ 0.26 |
SCREW | 1 | $ 0.26 | ||
| 27 | 03242-0412B SCREW
SKU: 03242-0412B Weight: 0.125000 Brand: Price: $ 2.59 |
SCREW | 3 | $ 2.59 | 1988 to 1992 | |
| 28 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
