Suzuki DT 30C Parts Listings 1988 to 1997

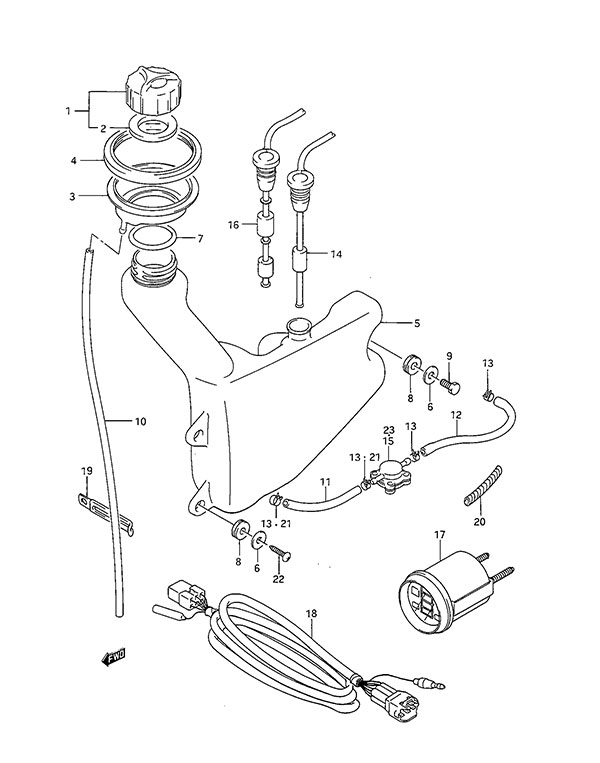

Fig. 33 - Oil Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 69200-94510 Suzuki Oil Tank Cap
SKU: 69200-94510 Weight: 0.120000 Brand: Price: $ 30.84 |
Suzuki Oil Tank Cap | 1 | $ 30.84 | ||
| 2 | 69241-94500 Oil Tank Cap Gasket
SKU: 69241-94500 Weight: 0.060000 Brand: Price: $ 3.02 |
Oil Tank Cap Gasket | 1 | $ 3.02 | ||
| 3 | 69355-95D02 Oil Tank Gutter (NLA)
SKU: 69355-95D02 Weight: 0.125000 Brand: Price: $ 6.57 |
Oil Tank Gutter (NLA) | 1 | $ 6.57 | ||
| 4 | 69357-95D11 Oil Tank Gutter Seal (NLA)
SKU: 69357-95D11 Weight: 0.200000 Brand: Price: $ 8.91 |
Oil Tank Gutter Seal (NLA) | 1 | $ 8.91 | ||
| 5 | 69110-95D01 Oil Tank (NLA)
SKU: 69110-95D01 Weight: 5.000000 Brand: Price: $ 70.79 |
Oil Tank (NLA) | 1 | $ 70.79 | ||
| 6 | 09160-06054 Washer (6.5x22.1.6)
SKU: 09160-06054 Weight: 0.062500 Brand: Price: $ 1.63 |
Washer (6.5x22.1.6) | 2 | $ 1.63 | ||
| 7 | 09280-40008 O-Ring (NLA)
SKU: 09280-40008 Weight: 0.060000 Brand: Price: $ 1.83 |
O-Ring (NLA) | 1 | $ 1.83 | ||
| 8 | 09320-12027 Cushion
SKU: 09320-12027 Weight: 0.060000 Brand: Price: $ 2.15 |
Cushion | 3 | $ 2.15 | ||
| 9 | 09136-06134 Bolt
SKU: 09136-06134 Weight: 0.060000 Brand: Price: $ 2.65 |
Bolt | 1 | $ 2.65 | ||
| 10 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->540 | |
| 11-1 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.26 |
Hose (5x8x2000) | 1 | $ 9.26 | Tank to Sensor 1988 to 1990 L:2000->50 | |
| 11-2 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Tank to Sensor 1991 to 1997 L:600->50 | |
| 12 | 16921-95D00 Hose (NLA)
SKU: 16921-95D00 Weight: 0.100000 Brand: Price: $ 14.14 |
Hose (NLA) | 1 | $ 14.14 | Filter to Pump | |
| 13-1 | 09401-08409 Clamp
SKU: 09401-08409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 4 | $ 2.02 | 1988 to 1990 | |
| 13-2 | 09401-08409 Clamp
SKU: 09401-08409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 2 | $ 2.02 | 1991 to 1997 | |
| 14 | 34860-94402 Oil Level Switch Assembly
SKU: 34860-94402 Weight: 0.100000 Brand: Price: $ 31.69 |
Oil Level Switch Assembly | 1 | $ 31.69 | ||
| 15 | 16250-94710 Oil Filter/Flow Sensor
SKU: 16250-94710 Weight: 0.080000 Brand: Price: $ 32.05 |
Oil Filter/Flow Sensor | 1 | $ 32.05 | 1988 to 1994 | |
| 16 | 34860-94431 Oil Level Switch Assembly (NLA)
SKU: 34860-94431 Weight: 1.000000 Brand: Price: $ 115.02 |
Oil Level Switch Assembly (NLA) | 1 | $ 115.02 | Optional | |
| 17-1 | 34701-92X50 Monitor Gauge Assembly (NLA)
SKU: 34701-92X50 Weight: 1.060000 Brand: Price: $ 239.95 |
Monitor Gauge Assembly (NLA) | 1 | $ 239.95 | Optional | |
| 17-2 | 34700-92E11 Monitor Gauge Assembly (NLA)
SKU: 34700-92E11 Weight: 7.000000 Brand: Price: $ 229.95 |
Monitor Gauge Assembly (NLA) | 1 | $ 229.95 | Optional 1993 to 1997 | |
| 18-1 | 36660-94610 Monitor Gauge Harness (21 ft) (NLA)
SKU: 36660-94610 Weight: 1.900000 Brand: Price: $ 102.41 |
Monitor Gauge Harness (21 ft) (NLA) | 1 | $ 102.41 | Optional L:6500 | |
| 18-2 | 36660-94690 Monitor Wiring Harness (NLA)
SKU: 36660-94690 Weight: 0.100000 Brand: Price: $ 55.72 |
Monitor Wiring Harness (NLA) | 1 | $ 55.72 | Optional L:2000 | |
| 18-3 | 36660-95610 Monitor Gauge Harness (21 ft)
SKU: 36660-95610 Weight: 0.100000 Brand: Price: $ 205.70 |
Monitor Gauge Harness (21 ft) | 1 | $ 205.70 | Optional 1993 to 1997 L:7200 | |
| 18-4 | 36660-92E90 Monitor Gauge Harness (6 ft) (NLA)
SKU: 36660-92E90 Weight: 0.100000 Brand: Price: $ 69.95 |
Monitor Gauge Harness (6 ft) (NLA) | 1 | $ 69.95 | Optional 1993 to 1997 | |
| 19 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 20 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | L:540->210 | |
| 21 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 2 | $ 1.78 | 1991 to 1997 | |
| 22 | 03511-0616B SCREW
SKU: 03511-0616B Weight: 0.060000 Brand: Price: $ 1.88 |
SCREW | 2 | $ 1.88 | ||
| 23 | 16810-95D00 Oil Filter (NLA)
SKU: 16810-95D00 Weight: 0.060000 Brand: Price: $ 22.04 |
Oil Filter (NLA) | 1 | $ 22.04 | 1995 to 1997 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
