Suzuki DT 30C Parts Listings 1993 to 1997

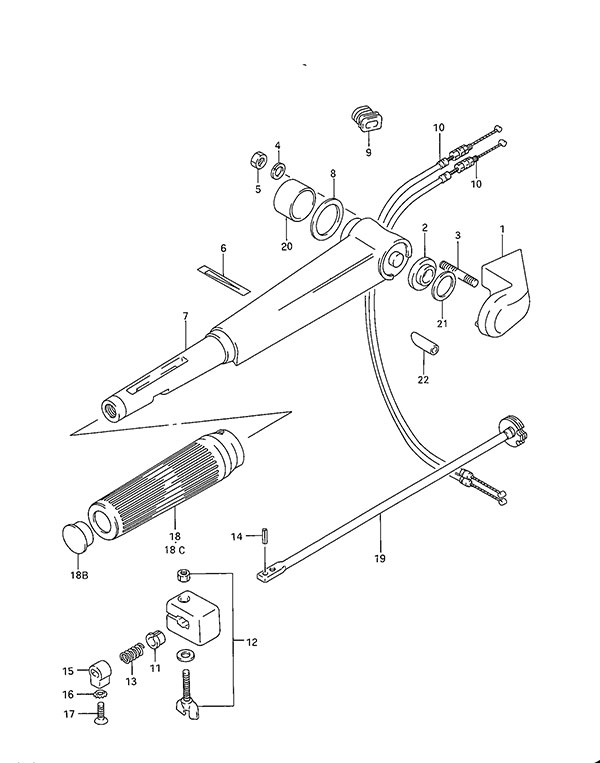

Fig. 29 - Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 63121-96320-0ED Tiller Handle Cover (NLA)
SKU: 63121-96320-0ED Weight: 0.100000 Brand: Price: $ 37.95 |
Tiller Handle Cover (NLA) | 1 | $ 37.95 | ||
| 1-2 | 63121-96401-0ED Tiller Handle Cover (NLA)
SKU: 63121-96401-0ED Weight: 0.600000 Brand: Price: $ 71.95 |
Tiller Handle Cover (NLA) | 1 | $ 71.95 | 1995 to 1997 | |
| 2 | 63114-95L00 Handle Cover Spacer
SKU: 63114-95L00 Weight: 0.060000 Brand: Price: $ 5.65 |
Handle Cover Spacer | 1 | $ 5.65 | ||
| 3 | 09108-08147 Stud Bolt (8x61)
SKU: 09108-08147 Weight: 0.060000 Brand: Price: $ 7.17 |
Stud Bolt (8x61) | 2 | $ 7.17 | ||
| 4 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 | ||
| 5 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | ||
| 6 | 63215-93110 Handle Grip Mark
SKU: 63215-93110 Weight: 0.060000 Brand: Price: $ 3.19 |
Handle Grip Mark | 1 | $ 3.19 | ||
| 7 | 63111-96332-0ED Tiller Handle
SKU: 63111-96332-0ED Weight: 2.000000 Brand: Price: $ 101.77 |
Tiller Handle | 1 | $ 101.77 | ||
| 8 | 63115-96310 Handle Cover Inside Spacer
SKU: 63115-96310 Weight: 0.060000 Brand: Price: $ 6.26 |
Handle Cover Inside Spacer | 1 | $ 6.26 | ||
| 9 | 63625-96300 Throttle Cable Grommet
SKU: 63625-96300 Weight: 0.180000 Brand: Price: $ 3.21 |
Throttle Cable Grommet | 1 | $ 3.21 | ||
| 10 | 63610-95D02 Throttle Cable Assembly (NLA)
SKU: 63610-95D02 Weight: 0.200000 Brand: Price: $ 17.36 |
Throttle Cable Assembly (NLA) | 2 | $ 17.36 | ||
| 11 | 63225-93200 Handle Rod Bushing
SKU: 63225-93200 Weight: 0.060000 Brand: Price: $ 4.05 |
Handle Rod Bushing | 1 | $ 4.05 | ||
| 12 | 63240-97E20 Handle Grip Adjuster
SKU: 63240-97E20 Weight: 0.250000 Brand: Price: $ 27.71 |
Handle Grip Adjuster | 1 | $ 27.71 | ||
| 13 | 09440-12027 Spring
SKU: 09440-12027 Weight: 0.060000 Brand: Price: $ 1.39 |
Spring | 1 | $ 1.39 | ||
| 14 | 63227-93200 Handle Rod Pin
SKU: 63227-93200 Weight: 0.062500 Brand: Price: $ 2.18 |
Handle Rod Pin | 1 | $ 2.18 | ||
| 15 | 63223-92D00 Handle Rod Stopper
SKU: 63223-92D00 Weight: 0.060000 Brand: Price: $ 4.49 |
Handle Rod Stopper | 1 | $ 4.49 | ||
| 16 | 09163-06001 Lock Washer (6.4x12x0.5)
SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
| 17 | 09126-06015 Screw (6x23)
SKU: 09126-06015 Weight: 0.060000 Brand: Price: $ 2.62 |
Screw (6x23) | 1 | $ 2.62 | ||
| 18 | 63210-93E30 Handle Grip
SKU: 63210-93E30 Weight: 1.500000 Brand: Price: $ 34.82 |
Handle Grip | 1 | $ 34.82 | ||
| 18B | 63213-94400 Stop Switch Cap
SKU: 63213-94400 Weight: 0.060000 Brand: Price: $ 7.13 |
Stop Switch Cap | 1 | $ 7.13 | ||
| 18C | 63210-93E30 Handle Grip
SKU: 63210-93E30 Weight: 1.500000 Brand: Price: $ 34.82 |
Handle Grip | 1 | $ 34.82 | 1996 to 1997 | |
| 19 | 63220-96302 Handle Rod
SKU: 63220-96302 Weight: 1.000000 Brand: Price: $ 29.78 |
Handle Rod | 1 | $ 29.78 | ||
| 20 | 63116-96301 Tiller Handle Bushing
SKU: 63116-96301 Weight: 0.060000 Brand: Price: $ 5.98 |
Tiller Handle Bushing | 1 | $ 5.98 | ||
| 21-1 | 63118-94300 Tiller Handle Shim (0.3)
SKU: 63118-94300 Weight: 0.062500 Brand: Price: $ 3.57 |
Tiller Handle Shim (0.3) | 1 | $ 3.57 | ||
| 21-2 | 63118-94310 Tiller Handle Shim (0.5)
SKU: 63118-94310 Weight: 0.060000 Brand: Price: $ 4.55 |
Tiller Handle Shim (0.5) | 1 | $ 4.55 | Optional | |
| 22 | 63117-96301 Stop Switch Wire Cover
SKU: 63117-96301 Weight: 0.060000 Brand: Price: $ 3.72 |
Stop Switch Wire Cover | 1 | $ 3.72 | Manual Starter 1993 | |
| 23-1 | 63300-93900 Extension Bar Assembly (NLA)
SKU: 63300-93900 Weight: 0.100000 Brand: Price: $ 122.61 |
Extension Bar Assembly (NLA) | 1 | $ 122.61 | Optional | |
| 23-2 | 63300-93E00 Extension Bar Assembly (NLA)
SKU: 63300-93E00 Weight: 0.100000 Brand: Price: $ 193.86 |
Extension Bar Assembly (NLA) | 1 | $ 193.86 | Optional 1996 to 1997 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
