Suzuki DT 30C Parts Listings 1994 to 1997

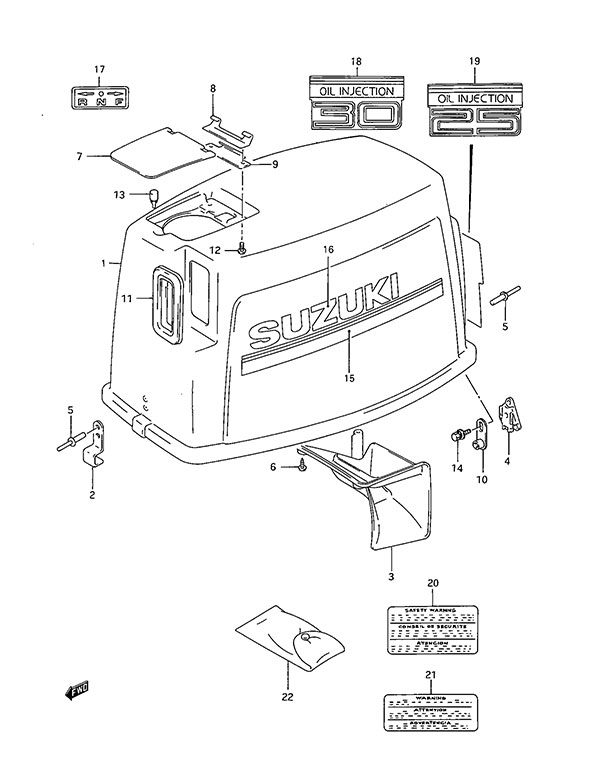

Fig. 26 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61420-95844-0ED Engine Cover (NLA)
SKU: 61420-95844-0ED Weight: 50.000000 Brand: Price: $ 504.72 |
Engine Cover (NLA) | 1 | $ 504.72 | ||
| 2 | 61412-95D00 Engine Cover Hook (NLA)
SKU: 61412-95D00 Weight: 0.100000 Brand: Price: $ 4.37 |
Engine Cover Hook (NLA) | 1 | $ 4.37 | ||
| 3 | 61433-95D00 Air Intake Inner Cover (NLA)
SKU: 61433-95D00 Weight: 1.000000 Brand: Price: $ 22.36 |
Air Intake Inner Cover (NLA) | 1 | $ 22.36 | ||
| 4 | 61621-96303 Fastener Bracket (NLA)
SKU: 61621-96303 Weight: 0.060000 Brand: Price: $ 15.26 |
Fastener Bracket (NLA) | 1 | $ 15.26 | ||
| 5 | 09229-04029 Rivet (NLA)
SKU: 09229-04029 Weight: 0.100000 Brand: Price: $ 1.16 |
Rivet (NLA) | 5 | $ 1.16 | ||
| 6 | 03242-0412B SCREW
SKU: 03242-0412B Weight: 0.125000 Brand: Price: $ 2.59 |
SCREW | 4 | $ 2.59 | ||
| 7 | 61481-95D01-0ED Oil Tank Filler Lid (NLA)
SKU: 61481-95D01-0ED Weight: 0.100000 Brand: Price: $ 17.24 |
Oil Tank Filler Lid (NLA) | 1 | $ 17.24 | ||
| 8 | 61482-95D00 Oil Filler Lid Hinge (NLA)
SKU: 61482-95D00 Weight: 0.100000 Brand: Price: $ 6.60 |
Oil Filler Lid Hinge (NLA) | 1 | $ 6.60 | ||
| 9 | 61485-94400 Oil Filler Lid Spring
SKU: 61485-94400 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Spring | 1 | $ 4.67 | ||
| 10 | 61610-94420 Fastener
SKU: 61610-94420 Weight: 0.080000 Brand: Price: $ 16.13 |
Fastener | 1 | $ 16.13 | ||
| 11 | 61622-95500 Recoil Starter Seal
SKU: 61622-95500 Weight: 0.125000 Brand: Price: $ 10.05 |
Recoil Starter Seal | 1 | $ 10.05 | ||
| 12 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 13 | 09321-05019 Cushion
SKU: 09321-05019 Weight: 0.060000 Brand: Price: $ 2.74 |
Cushion | 2 | $ 2.74 | ||
| 14 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 | ||
| 15 | 61440-91D00 Engine Cover Stripe Set
SKU: 61440-91D00 Weight: 0.200000 Brand: Price: $ 31.10 |
Engine Cover Stripe Set | 1 | $ 31.10 | ||
| 16 | 68181-33C20-1RR Suzuki Emblem (NLA)
SKU: 68181-33C20-1RR Weight: 0.060000 Brand: Price: $ 17.24 |
Suzuki Emblem (NLA) | 2 | $ 17.24 | ||
| 17 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 | ||
| 18 | 61435-95D61 Rear Emblem Mark (NLA)
SKU: 61435-95D61 Weight: 0.060000 Brand: Price: $ 13.41 |
Rear Emblem Mark (NLA) | 1 | $ 13.41 | ||
| 20 | 61581-98620 Engine Cover Label
SKU: 61581-98620 Weight: 0.060000 Brand: Price: $ 9.56 |
Engine Cover Label | 1 | $ 9.56 | ||
| 21 | 61582-98100 Warning Mark (NLA)
SKU: 61582-98100 Weight: 0.060000 Brand: Price: $ 4.70 |
Warning Mark (NLA) | 1 | $ 4.70 | ||
| 22 | 09800-01016 Tool Set
SKU: 09800-01016 Weight: 0.600000 Brand: Price: $ 20.72 |
Tool Set | 1 | $ 20.72 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
