Suzuki DT 30C Parts Listings 1988 to 1997

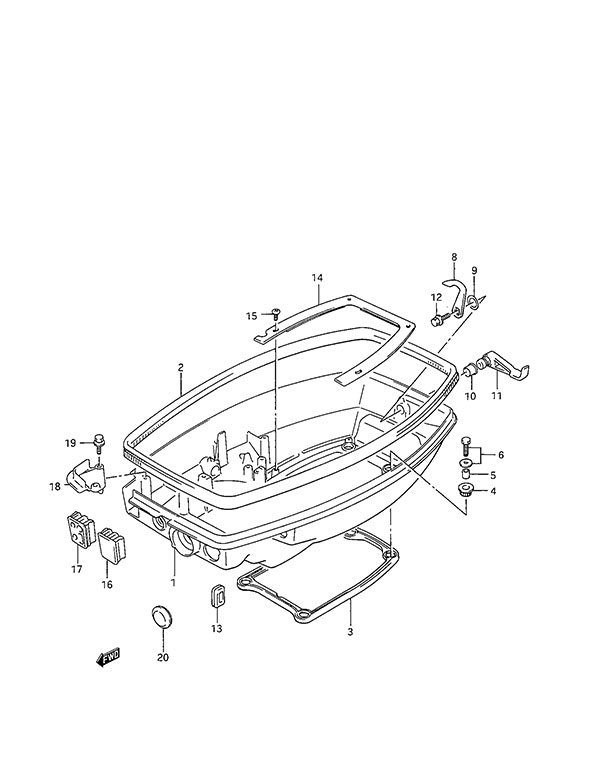

Fig. 23 - Under Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61111-95D12-0ED Under Engine Cover
SKU: 61111-95D12-0ED Weight: 10.000000 Brand: Price: $ 392.05 |
Under Engine Cover | 1 | $ 392.05 | ||
| 2 | 61112-96302 Engine Cover Seal (NLA)
SKU: 61112-96302 Weight: 0.100000 Brand: Price: $ 34.87 |
Engine Cover Seal (NLA) | 1 | $ 34.87 | ||
| 3 | 61113-95D00 Under Cover Seal (NLA)
SKU: 61113-95D00 Weight: 0.100000 Brand: Price: $ 12.16 |
Under Cover Seal (NLA) | 1 | $ 12.16 | ||
| 4 | 09320-10031 Under Cover Cushion (NLA)
SKU: 09320-10031 Weight: 0.100000 Brand: Price: $ 1.63 |
Under Cover Cushion (NLA) | 4 | $ 1.63 | ||
| 5 | 09180-06289 Spacer
SKU: 09180-06289 Weight: 0.100000 Brand: Price: $ 2.56 |
Spacer | 4 | $ 2.56 | ||
| 6 | 09116-06133 Bolt (6x25)
SKU: 09116-06133 Weight: 0.250000 Brand: Price: $ 2.60 |
Bolt (6x25) | 4 | $ 2.60 | ||
| 8 | 61631-94410 Lower Engine Cover Hook (NLA)
SKU: 61631-94410 Weight: 0.060000 Brand: Price: $ 6.60 |
Lower Engine Cover Hook (NLA) | 1 | $ 6.60 | ||
| 9 | 09164-14008 Wave Washer
SKU: 09164-14008 Weight: 0.060000 Brand: Price: $ 2.04 |
Wave Washer | 1 | $ 2.04 | ||
| 10 | 09307-13006 Bushing
SKU: 09307-13006 Weight: 0.060000 Brand: Price: $ 7.10 |
Bushing | 1 | $ 7.10 | ||
| 11 | 61633-93930-0ED Hook Lever
SKU: 61633-93930-0ED Weight: 0.125000 Brand: Price: $ 52.45 |
Hook Lever | 1 | $ 52.45 | ||
| 12-1 | 09116-06127 Bolt (6x12)
SKU: 09116-06127 Weight: 0.060000 Brand: Price: $ 2.98 |
Bolt (6x12) | 1 | $ 2.98 | ||
| 12-2 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 | 1995 to 1997 | |
| 13 | 63625-94300 Throttle Cable Cap
SKU: 63625-94300 Weight: 0.060000 Brand: Price: $ 3.35 |
Throttle Cable Cap | 1 | $ 3.35 | DT30RC | |
| 14 | 61138-95D00 Water Cover (NLA)
SKU: 61138-95D00 Weight: 0.100000 Brand: Price: $ 7.01 |
Water Cover (NLA) | 1 | $ 7.01 | ||
| 15 | 03241-0510A SCREW
SKU: 03241-0510A Weight: 0.200000 Brand: Price: $ 1.27 |
SCREW | 4 | $ 1.27 | ||
| 16 | 61124-95D01 Cable Grommet (NLA)
SKU: 61124-95D01 Weight: 0.125000 Brand: Price: $ 9.16 |
Cable Grommet (NLA) | 1 | $ 9.16 | ||
| 17 | 61124-95D20 Cable Grommet
SKU: 61124-95D20 Weight: 0.060000 Brand: Price: $ 10.91 |
Cable Grommet | 1 | $ 10.91 | DT30RC | |
| 18 | 61125-95D00-0ED Cable Grommet Plate (NLA)
SKU: 61125-95D00-0ED Weight: 0.200000 Brand: Price: $ 40.87 |
Cable Grommet Plate (NLA) | 1 | $ 40.87 | ||
| 19 | 09116-06204 Bolt (6x20)
SKU: 09116-06204 Weight: 0.060000 Brand: Price: $ 3.10 |
Bolt (6x20) | 2 | $ 3.10 | ||
| 20 | 09250-21003 Plug
SKU: 09250-21003 Weight: 0.060000 Brand: Price: $ 4.39 |
Plug | 1 | $ 4.39 | DT30RC |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
