Suzuki DT 30C Parts Listings 1988 to 1997

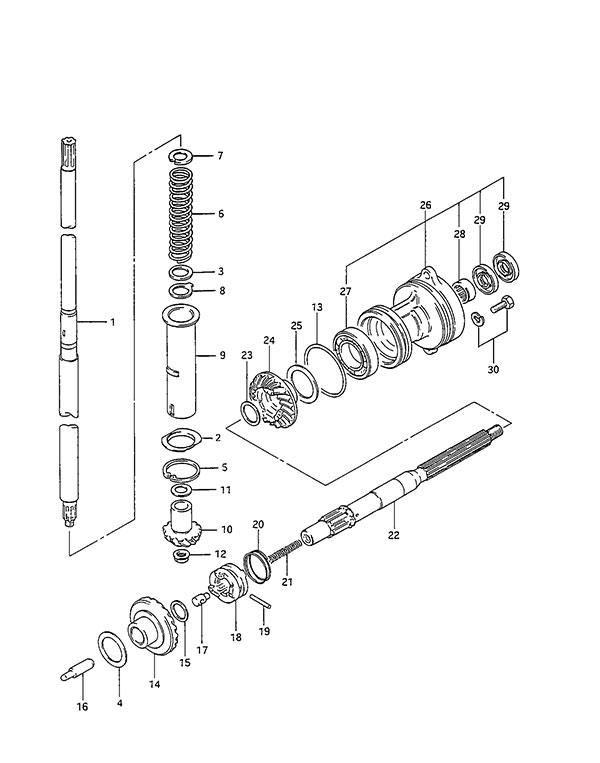

Fig. 22 - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 57110-95D13 Drive Shaft (S) (NLA)
SKU: 57110-95D13 Weight: 10.000000 Brand: Price: $ 203.14 |
Drive Shaft (S) (NLA) | 1 | $ 203.14 | w/Transom (S) | |
| 1-2 | 57110-95D03 Drive Shaft (L)(NLA)
SKU: 57110-95D03 Weight: 10.000000 Brand: Price: $ 252.84 |
Drive Shaft (L)(NLA) | 1 | $ 252.84 | Type: L | |
| 2 | 57134-96301 Gear Oil Barrier
SKU: 57134-96301 Weight: 0.250000 Brand: Price: $ 4.67 |
Gear Oil Barrier | 1 | $ 4.67 | ||
| 3 | 08211-20253 Thrust Washer (NLA)
SKU: 08211-20253 Weight: 0.060000 Brand: Price: $ 1.82 |
Thrust Washer (NLA) | 1 | $ 1.82 | ||
| 4-1 | 09181-25190 Shim (0.80)
SKU: 09181-25190 Weight: 0.100000 Brand: Price: $ 3.40 |
Shim (0.80) | 1 | $ 3.40 | ||
| 4-2 | 09181-25248 Shim (0.90)
SKU: 09181-25248 Weight: 0.200000 Brand: Price: $ 3.40 |
Shim (0.90) | 1 | $ 3.40 | ||
| 4-3 | 09181-25251 Shim (1.00)
SKU: 09181-25251 Weight: 0.200000 Brand: Price: $ 3.34 |
Shim (1.00) | 1 | $ 3.34 | ||
| 4-4 | 09160-25032 Thrust Washer (1.10)
SKU: 09160-25032 Weight: 0.200000 Brand: Price: $ 4.78 |
Thrust Washer (1.10) | 1 | $ 4.78 | ||
| 4-5 | 09160-25033 Thrust Washer (1.20)
SKU: 09160-25033 Weight: 0.200000 Brand: Price: $ 4.78 |
Thrust Washer (1.20) | 1 | $ 4.78 | ||
| 4-6 | 09160-25034 Thrust Washer (1.30) (NLA)
SKU: 09160-25034 Weight: 0.200000 Brand: Price: $ 3.59 |
Thrust Washer (1.30) (NLA) | 1 | $ 3.59 | ||
| 4-7 | 09160-25035 Thrust Washer (1.40)
SKU: 09160-25035 Weight: 0.200000 Brand: Price: $ 4.61 |
Thrust Washer (1.40) | 1 | $ 4.61 | ||
| 4-8 | 09181-25268 Shim (1.50)
SKU: 09181-25268 Weight: 0.200000 Brand: Price: $ 3.22 |
Shim (1.50) | 1 | $ 3.22 | ||
| 5 | 08331-41406 Circlip
SKU: 08331-41406 Weight: 0.100000 Brand: Price: $ 3.19 |
Circlip | 1 | $ 3.19 | ||
| 6 | 09440-25002 Drive Shaft Spring
SKU: 09440-25002 Weight: 0.200000 Brand: Price: $ 8.72 |
Drive Shaft Spring | 1 | $ 8.72 | ||
| 7 | 09166-17005 Washer (17.1x26x3.0)
SKU: 09166-17005 Weight: 0.060000 Brand: Price: $ 6.07 |
Washer (17.1x26x3.0) | 1 | $ 6.07 | ||
| 8 | 09167-20021 Washer (20.5x25.5x2.0)
SKU: 09167-20021 Weight: 0.100000 Brand: Price: $ 2.99 |
Washer (20.5x25.5x2.0) | 1 | $ 2.99 | ||
| 9 | 57133-96302 Drive Shaft Spring Collar
SKU: 57133-96302 Weight: 0.100000 Brand: Price: $ 12.66 |
Drive Shaft Spring Collar | 1 | $ 12.66 | ||
| 10 | 57311-91L00 Pinion Gear
SKU: 57311-91L00 Weight: 0.060000 Brand: Price: $ 100.29 |
Pinion Gear | 1 | $ 100.29 | ||
| 11-1 | 09160-15030 Washer (1.7)
SKU: 09160-15030 Weight: 0.100000 Brand: Price: $ 2.59 |
Washer (1.7) | 1 | $ 2.59 | ||
| 11-2 | 09160-15031 Washer (1.8) (NLA)
SKU: 09160-15031 Weight: 0.100000 Brand: Price: $ 1.93 |
Washer (1.8) (NLA) | 1 | $ 1.93 | ||
| 11-3 | 09160-15032 Washer (1.9) (NLA)
SKU: 09160-15032 Weight: 0.100000 Brand: Price: $ 1.93 |
Washer (1.9) (NLA) | 1 | $ 1.93 | ||
| 11-4 | 08211-15203 Washer (2.0)
SKU: 08211-15203 Weight: 0.060000 Brand: Price: $ 3.83 |
Washer (2.0) | 1 | $ 3.83 | ||
| 11-5 | 09160-15033 Washer (2.1) (NLA)
SKU: 09160-15033 Weight: 0.100000 Brand: Price: $ 1.93 |
Washer (2.1) (NLA) | 1 | $ 1.93 | ||
| 11-6 | 08211-15204 Washer (2.2)
SKU: 08211-15204 Weight: 0.060000 Brand: Price: $ 3.02 |
Washer (2.2) | 1 | $ 3.02 | ||
| 12 | 09159-08046 Nut
SKU: 09159-08046 Weight: 0.125000 Brand: Price: $ 7.01 |
Nut | 1 | $ 7.01 | ||
| 13 | 09280-75002 O-Ring
SKU: 09280-75002 Weight: 0.060000 Brand: Price: $ 2.81 |
O-Ring | 1 | $ 2.81 | ||
| 14 | 57510-94L00 Forward Gear
SKU: 57510-94L00 Weight: 0.500000 Brand: Price: $ 100.29 |
Forward Gear | 1 | $ 100.29 | ||
| 15 | 09181-16184 Shim (1.5)
SKU: 09181-16184 Weight: 0.060000 Brand: Price: $ 2.83 |
Shim (1.5) | 1 | $ 2.83 | ||
| 16 | 57631-96301 Push Rod
SKU: 57631-96301 Weight: 0.060000 Brand: Price: $ 10.73 |
Push Rod | 1 | $ 10.73 | ||
| 17 | 09209-08016 Push Pin
SKU: 09209-08016 Weight: 0.060000 Brand: Price: $ 3.99 |
Push Pin | 1 | $ 3.99 | ||
| 18 | 57621-91L10 Clutch Dog Shifter
SKU: 57621-91L10 Weight: 0.250000 Brand: Price: $ 27.04 |
Clutch Dog Shifter | 1 | $ 27.04 | ||
| 16 | 09202-05021 Clutch Dog Shifter Pin
SKU: 09202-05021 Weight: 0.060000 Brand: Price: $ 1.88 |
Clutch Dog Shifter Pin | 1 | $ 1.88 | ||
| 20 | 09440-35004 Spring
SKU: 09440-35004 Weight: 0.060000 Brand: Price: $ 1.99 |
Spring | 1 | $ 1.99 | ||
| 21 | 09440-07041 Return Spring
SKU: 09440-07041 Weight: 0.125000 Brand: Price: $ 2.05 |
Return Spring | 1 | $ 2.05 | ||
| 22 | 57610-96311 Propeller Shaft Assembly
SKU: 57610-96311 Weight: 1.120000 Brand: Price: $ 247.02 |
Propeller Shaft Assembly | 1 | $ 247.02 | ||
| 23-1 | 09160-20068 Washer (1.6)
SKU: 09160-20068 Weight: 0.200000 Brand: Price: $ 3.46 |
Washer (1.6) | 1 | $ 3.46 | ||
| 23-2 | 09160-20069 Washer (1.8)
SKU: 09160-20069 Weight: 0.200000 Brand: Price: $ 3.46 |
Washer (1.8) | 1 | $ 3.46 | ||
| 23-3 | 09160-20070 Washer (2.0)
SKU: 09160-20070 Weight: 0.062500 Brand: Price: $ 4.08 |
Washer (2.0) | 1 | $ 4.08 | ||
| 23-4 | 09160-20071 Washer (2.2)
SKU: 09160-20071 Weight: 0.200000 Brand: Price: $ 4.08 |
Washer (2.2) | 1 | $ 4.08 | ||
| 23-5 | 09160-20072 Washer (2.4)
SKU: 09160-20072 Weight: 0.200000 Brand: Price: $ 4.08 |
Washer (2.4) | 1 | $ 4.08 | ||
| 23-6 | 09160-20073 Washer (2.6)
SKU: 09160-20073 Weight: 0.062500 Brand: Price: $ 4.08 |
Washer (2.6) | 1 | $ 4.08 | ||
| 24 | 57521-94L00 Reverse Gear
SKU: 57521-94L00 Weight: 0.500000 Brand: Price: $ 97.08 |
Reverse Gear | 1 | $ 97.08 | ||
| 25-1 | 09181-30167 Shim (1.00)
SKU: 09181-30167 Weight: 0.060000 Brand: Price: $ 3.18 |
Shim (1.00) | 1 | $ 3.18 | ||
| 25-2 | 08221-30404 Shim (0.2)
SKU: 08221-30404 Weight: 0.060000 Brand: Price: $ 2.45 |
Shim (0.2) | 1 | $ 2.45 | ||
| 35-3 | 09181-30158 Shim (0.50)
SKU: 09181-30158 Weight: 0.060000 Brand: Price: $ 3.13 |
Shim (0.50) | 1 | $ 3.13 | ||
| 25-4 | 09181-30162 Shim (0.8)
SKU: 09181-30162 Weight: 0.100000 Brand: Price: $ 3.24 |
Shim (0.8) | 1 | $ 3.24 | ||
| 26 | 56120-96332-0ED Propeller Shaft Bearing Housing
SKU: 56120-96332-0ED Weight: 1.140000 Brand: Price: $ 189.45 |
Propeller Shaft Bearing Housing | 1 | $ 189.45 | ||
| 27 | 08113-60060 B1 30X55X13 BEA
SKU: 08113-60060 Weight: 0.250000 Brand: Price: $ 24.61 |
B1 30X55X13 BEA | 1 | $ 24.61 | ||
| 28 | 09263-20047 Bearing (20x26x20)
SKU: 09263-20047 Weight: 0.080000 Brand: Price: $ 16.93 |
Bearing (20x26x20) | 1 | $ 16.93 | ||
| 29 | 09289-20009 Oil Seal
SKU: 09289-20009 Weight: 0.125000 Brand: Price: $ 5.11 |
Oil Seal | 2 | $ 5.11 | ||
| 30 | 09117-06049 Bolt (6x25)
SKU: 09117-06049 Weight: 0.060000 Brand: Price: $ 3.08 |
Bolt (6x25) | 2 | $ 3.08 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
