Suzuki DT 30C Parts Listings 1988 to 1997

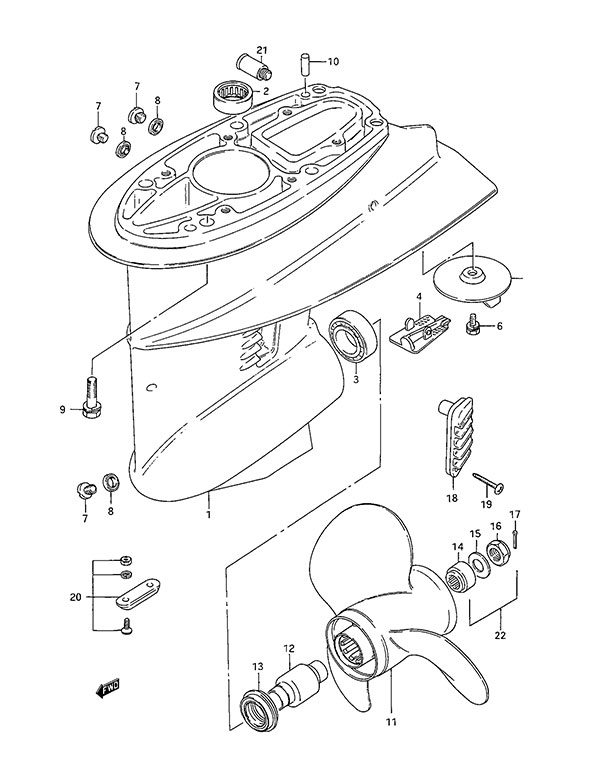

Fig. 21 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55100-91L00-0ED Gear Case Housing
SKU: 55100-91L00-0ED Weight: 10.500000 Brand: Price: $ 631.63 |
Gear Case Housing | 1 | $ 631.63 | ||
| 2 | 09263-20046 Bearing (20.6x27x25.4)
SKU: 09263-20046 Weight: 0.100000 Brand: Price: $ 70.16 |
Bearing (20.6x27x25.4) | 1 | $ 70.16 | ||
| 3 | 09265-25015 Bearing (25x52x16.25)
SKU: 09265-25015 Weight: 0.360000 Brand: Price: $ 53.81 |
Bearing (25x52x16.25) | 1 | $ 53.81 | ||
| 4 | 55114-96310 Gear Case Under Cover
SKU: 55114-96310 Weight: 5.000000 Brand: Price: $ 7.52 |
Gear Case Under Cover | 1 | $ 7.52 | ||
| 5 | 55125-96310 Trim Tab Anode
SKU: 55125-96310 Weight: 0.300000 Brand: Price: $ 12.28 |
Trim Tab Anode | 1 | $ 12.28 | ||
| 6 | 09117-08109 Bolt (8x16)
SKU: 09117-08109 Weight: 0.060000 Brand: Price: $ 3.09 |
Bolt (8x16) | 1 | $ 3.09 | ||
| 7 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 3 | $ 6.59 | ||
| 8 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 3 | $ 1.60 | ||
| 9 | 09117-08056-XC0 Bolt (8x40)
SKU: 09117-08056-XC0 Weight: 0.060000 Brand: Price: $ 7.86 |
Bolt (8x40) | 6 | $ 7.86 | ||
| 10 | 09202-06015 Knock Pin
SKU: 09202-06015 Weight: 0.125000 Brand: Price: $ 2.14 |
Knock Pin | 2 | $ 2.14 | ||
| 11-1 | 58100-96372-019 P911 Propeller 3x10-1/4x9
SKU: 58100-96372-019 Weight: 8.000000 Brand: Price: $ 216.93 |
P911 Propeller 3x10-1/4x9 | 1 | $ 216.93 | ||
| 11-2 | 58100-96472-019 P1001 Propeller 3x10-1/4x10
SKU: 58100-96472-019 Weight: 4.000000 Brand: Price: $ 194.80 |
P1001 Propeller 3x10-1/4x10 | 1 | $ 194.80 | ||
| 11-3 | 58100-91L50-019 P1101 Propeller 3x10-1/4x11
SKU: 58100-91L50-019 Weight: 3.250000 Brand: Price: $ 194.80 |
P1101 Propeller 3x10-1/4x11 | 1 | $ 194.80 | ||
| 11-4 | 58100-96482-019 P1201 Propeller 3x10-1/4x12
SKU: 58100-96482-019 Weight: 2.880000 Brand: Price: $ 194.80 |
P1201 Propeller 3x10-1/4x12 | 1 | $ 194.80 | ||
| 11-5 | 58100-96492-019 P1311 Propeller 3x10-1/4x13
SKU: 58100-96492-019 Weight: 3.000000 Brand: Price: $ 194.80 |
P1311 Propeller 3x10-1/4x13 | 1 | $ 194.80 | ||
| 11-6 | 58100-95D01-019 P1401 Propeller 3x10-1/4x14
SKU: 58100-95D01-019 Weight: 2.600000 Brand: Price: $ 194.80 |
P1401 Propeller 3x10-1/4x14 | 1 | $ 194.80 | ||
| 11-7 | 58100-96462-019 P1501 Propeller 3x10-1/4x15
SKU: 58100-96462-019 Weight: 3.000000 Brand: Price: $ 194.80 |
P1501 Propeller 3x10-1/4x15 | 1 | $ 194.80 | ||
| 11-8 | 99105-00600-13P S/S Propeller 3x10-1/4x13 (NLA)
SKU: 99105-00600-13P Weight: 8.000000 Brand: Price: $ 339.37 |
S/S Propeller 3x10-1/4x13 (NLA) | 1 | $ 339.37 | ||
| 12 | 58120-96401 Type P Propeller Bushing
SKU: 58120-96401 Weight: 0.300000 Brand: Price: $ 45.01 |
Type P Propeller Bushing | 1 | $ 45.01 | ||
| 13 | 57632-96400 Propeller Bushing Stopper
SKU: 57632-96400 Weight: 0.240000 Brand: Price: $ 41.34 |
Propeller Bushing Stopper | 1 | $ 41.34 | ||
| 14 | 57633-96300 Propeller Nut Spacer
SKU: 57633-96300 Weight: 0.180000 Brand: Price: $ 20.17 |
Propeller Nut Spacer | 1 | $ 20.17 | ||
| 15 | 09160-14028 Propeller Nut Washer
SKU: 09160-14028 Weight: 0.060000 Brand: Price: $ 3.14 |
Propeller Nut Washer | 1 | $ 3.14 | ||
| 16 | 09141-14008 Nut 14mm
SKU: 09141-14008 Weight: 0.060000 Brand: Price: $ 10.70 |
Nut 14mm | 1 | $ 10.70 | ||
| 17 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 18 | 17631-96320 Water Filter
SKU: 17631-96320 Weight: 0.060000 Brand: Price: $ 7.63 |
Water Filter | 2 | $ 7.63 | ||
| 19 | 03142-04259 SCREW
SKU: 03142-04259 Weight: 0.060000 Brand: Price: $ 2.20 |
SCREW | 2 | $ 2.20 | ||
| 20 | 55300-95500 Zinc Anode
SKU: 55300-95500 Weight: 0.240000 Brand: Price: $ 16.96 |
Zinc Anode | 1 | $ 16.96 | Optional | |
| 21 | 55181-95200 Flush Hose Attachment
SKU: 55181-95200 Weight: 0.080000 Brand: Price: $ 7.16 |
Flush Hose Attachment | 1 | $ 7.16 | Optional | |
| 22 | 57630-96300 Propeller Hardware Kit DT20/30/25c/30c
DF25/DF30
SKU: 57630-96300 Weight: 0.240000 Brand: Price: $ 16.14 |
Propeller Hardware Kit DT20/30/25c/30c DF25/DF30 | 1 | $ 16.14 | Optional | |
| 23 | 25700-95D03 Gear Case Seal Kit DT25c / DT30c - DF25 / DF30
SKU: 25700-95D03 Weight: 0.250000 Brand: Price: $ 34.42 |
Gear Case Seal Kit DT25c / DT30c - DF25 / DF30 | 1 | $ 34.42 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
