Suzuki DT 30C Parts Listings 1988 to 1997

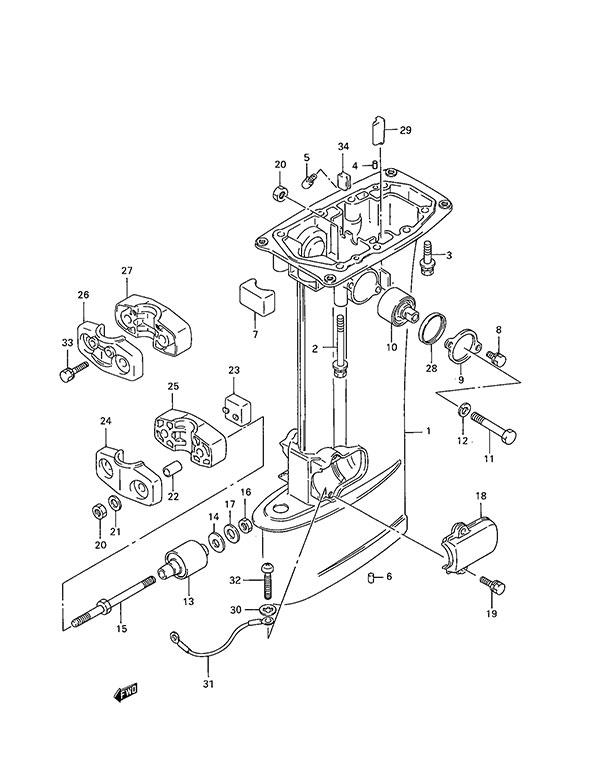

Fig. 20 - Drive Shaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 52111-95D13-0ED Drive Shaft Housing (S) (NLA)
SKU: 52111-95D13-0ED Weight: 10.000000 Brand: Price: $ 358.04 |
Drive Shaft Housing (S) (NLA) | 1 | $ 358.04 | w/Transom (S) | |
| 1-2 | 52111-95D02-0ED Drive Shaft Housing (L) (NLA)
SKU: 52111-95D02-0ED Weight: 10.000000 Brand: Price: $ 328.07 |
Drive Shaft Housing (L) (NLA) | 1 | $ 328.07 | Type: L | |
| 2 | 09118-08172 Bolt (8x85)
SKU: 09118-08172 Weight: 0.150000 Brand: Price: $ 7.03 |
Bolt (8x85) | 4 | $ 7.03 | ||
| 3 | 09118-08090 Bolt (8x52)
SKU: 09118-08090 Weight: 0.100000 Brand: Price: $ 6.91 |
Bolt (8x52) | 4 | $ 6.91 | ||
| 4 | 09202-06023 Knock Pin (6x10)
SKU: 09202-06023 Weight: 0.060000 Brand: Price: $ 3.00 |
Knock Pin (6x10) | 2 | $ 3.00 | ||
| 5 | 52117-94400 Water Inspection Tube
SKU: 52117-94400 Weight: 0.060000 Brand: Price: $ 3.13 |
Water Inspection Tube | 1 | $ 3.13 | ||
| 6 | 09202-06015 Knock Pin
SKU: 09202-06015 Weight: 0.125000 Brand: Price: $ 2.14 |
Knock Pin | 2 | $ 2.14 | ||
| 7 | 54121-96301 Upper Thrust Reverse Mount (NLA)
SKU: 54121-96301 Weight: 0.100000 Brand: Price: $ 4.17 |
Upper Thrust Reverse Mount (NLA) | 1 | $ 4.17 | ||
| 8 | 09117-06030 Bolt (6x16)
SKU: 09117-06030 Weight: 0.100000 Brand: Price: $ 2.84 |
Bolt (6x16) | 4 | $ 2.84 | ||
| 9 | 54137-96301-0ED Upper Mount Cover (NLA)
SKU: 54137-96301-0ED Weight: 0.100000 Brand: Price: $ 6.93 |
Upper Mount Cover (NLA) | 2 | $ 6.93 | ||
| 10 | 54130-95D01 Upper Mount (NLA)
SKU: 54130-95D01 Weight: 0.200000 Brand: Price: $ 49.66 |
Upper Mount (NLA) | 2 | $ 49.66 | ||
| 11 | 09100-10220 Bolt (10x35)
SKU: 09100-10220 Weight: 0.250000 Brand: Price: $ 8.40 |
Bolt (10x35) | 2 | $ 8.40 | ||
| 12 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 2 | $ 1.86 | ||
| 13 | 54160-95D00 Lower Mount
SKU: 54160-95D00 Weight: 1.000000 Brand: Price: $ 41.92 |
Lower Mount | 2 | $ 41.92 | ||
| 14 | 54165-96310 Reverse Stopper Damper (NLA)
SKU: 54165-96310 Weight: 0.100000 Brand: Price: $ 2.38 |
Reverse Stopper Damper (NLA) | 2 | $ 2.38 | ||
| 15 | 54166-96311 Lower Mount Bolt
SKU: 54166-96311 Weight: 0.250000 Brand: Price: $ 24.17 |
Lower Mount Bolt | 2 | $ 24.17 | ||
| 16 | 09140-10032 Nut
SKU: 09140-10032 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut | 2 | $ 2.04 | ||
| 17 | 09160-10083 Washer (NLA)
SKU: 09160-10083 Weight: 0.060000 Brand: Price: $ 1.51 |
Washer (NLA) | 2 | $ 1.51 | ||
| 18 | 54221-96301-0ED Lower Mount Cover (NLA)
SKU: 54221-96301-0ED Weight: 10.000000 Brand: Price: $ 26.35 |
Lower Mount Cover (NLA) | 2 | $ 26.35 | ||
| 19 | 09117-06032 Bolt (6x30)
SKU: 09117-06032 Weight: 0.060000 Brand: Price: $ 3.21 |
Bolt (6x30) | 4 | $ 3.21 | ||
| 20 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 2 | $ 2.59 | ||
| 21 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 22 | 09180-10152 Spacer (NLA)
SKU: 09180-10152 Weight: 0.100000 Brand: Price: $ 2.59 |
Spacer (NLA) | 2 | $ 2.59 | 1988 to 1990 | |
| 23 | 54151-96300 Lower Thrust Mount (NLA)
SKU: 54151-96300 Weight: 1.000000 Brand: Price: $ 4.54 |
Lower Thrust Mount (NLA) | 1 | $ 4.54 | ||
| 24 | 54211-96321-0ED Lower Mount Forward Bracket (NLA)
SKU: 54211-96321-0ED Weight: 1.000000 Brand: Price: $ 63.71 |
Lower Mount Forward Bracket (NLA) | 1 | $ 63.71 | 1988 to 1991 | |
| 25 | 54212-96311-0ED Lower Mount Aft Bracket
SKU: 54212-96311-0ED Weight: 1.000000 Brand: Price: $ 65.05 |
Lower Mount Aft Bracket | 1 | $ 65.05 | 1988 to 1991 | |
| 26 | 54211-96321-0ED Lower Mount Forward Bracket (NLA)
SKU: 54211-96321-0ED Weight: 1.000000 Brand: Price: $ 63.71 |
Lower Mount Forward Bracket (NLA) | 1 | $ 63.71 | 1992 to 1997 | |
| 27 | 54212-96311-0ED Lower Mount Aft Bracket
SKU: 54212-96311-0ED Weight: 1.000000 Brand: Price: $ 65.05 |
Lower Mount Aft Bracket | 1 | $ 65.05 | 1992 to 1997 | |
| 28 | 54138-96300 Upper Mounting Sleeve
SKU: 54138-96300 Weight: 0.060000 Brand: Price: $ 2.96 |
Upper Mounting Sleeve | 2 | $ 2.96 | ||
| 29 | 17568-96300 Water Plug (NLA)
SKU: 17568-96300 Weight: 0.060000 Brand: Price: $ 4.34 |
Water Plug (NLA) | 1 | $ 4.34 | 1988 | |
| 30 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 2 | $ 2.90 | ||
| 31 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | ||
| 32 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 | ||
| 33 | 09117-08056-XC0 Bolt (8x40)
SKU: 09117-08056-XC0 Weight: 0.060000 Brand: Price: $ 7.86 |
Bolt (8x40) | 2 | $ 7.86 | 1993 to 1997 | |
| 34 | 52112-95D00 Driveshaft Housing Grommet (NLA)
SKU: 52112-95D00 Weight: 0.100000 Brand: Price: $ 2.92 |
Driveshaft Housing Grommet (NLA) | 1 | $ 2.92 | 1995 to 1997 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
