Suzuki DT 30C Parts Listings 1988 to 1997

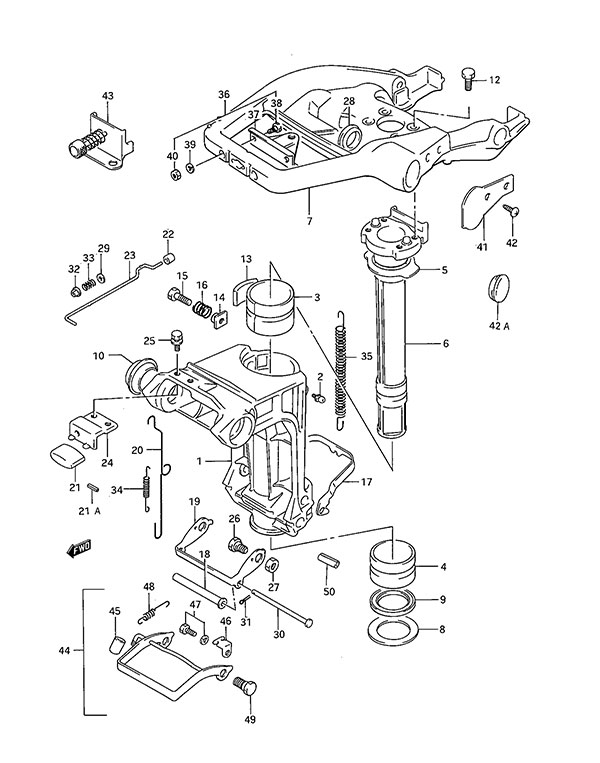

Fig. 19 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 43111-96352-0ED Swivel Bracket (NLA)
SKU: 43111-96352-0ED Weight: 4.600000 Brand: Price: $ 343.88 |
Swivel Bracket (NLA) | 1 | $ 343.88 | Requires Ref# 4 9 S/N 132492 Older | |
| 1-2 | 43111-96352-0ED Swivel Bracket (NLA)
SKU: 43111-96352-0ED Weight: 4.600000 Brand: Price: $ 343.88 |
Swivel Bracket (NLA) | 1 | $ 343.88 | Requires Ref# 51, 52, 53 54 S/N 132493 Newer | |
| 1-3 | 43111-96352-0ED Swivel Bracket (NLA)
SKU: 43111-96352-0ED Weight: 4.600000 Brand: Price: $ 343.88 |
Swivel Bracket (NLA) | 1 | $ 343.88 | 1995 to 1997 | |
| 2 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 4 | $ 3.36 | ||
| 3 | 43710-91L00 Steering Bushing Set
SKU: 43710-91L00 Weight: 0.200000 Brand: Price: $ 32.56 |
Steering Bushing Set | 1 | $ 32.56 | Includes Ref# 4 | |
| 4 | 43710-91L00 Steering Bushing Set
SKU: 43710-91L00 Weight: 0.200000 Brand: Price: $ 32.56 |
Steering Bushing Set | 1 | $ 32.56 | Includes Ref# 3 | |
| 5 | 43721-96302 Upper Bushing Plate (NLA)
SKU: 43721-96302 Weight: 0.100000 Brand: Price: $ 5.42 |
Upper Bushing Plate (NLA) | 1 | $ 5.42 | ||
| 6-1 | 43741-96304-0ED Pilot Shaft (NLA)
SKU: 43741-96304-0ED Weight: 5.000000 Brand: Price: $ 111.88 |
Pilot Shaft (NLA) | 1 | $ 111.88 | Requires Ref# 4 9 S/N 132492 Older | |
| 6-2 | 43741-96304-0ED Pilot Shaft (NLA)
SKU: 43741-96304-0ED Weight: 5.000000 Brand: Price: $ 111.88 |
Pilot Shaft (NLA) | 1 | $ 111.88 | S/N 132493 Newer | |
| 7-2 | 43751-95D50-0ED Steering Bracket (NLA)
SKU: 43751-95D50-0ED Weight: 0.100000 Brand: Price: $ 145.25 |
Steering Bracket (NLA) | 1 | $ 145.25 | 1993 to 1994 | |
| 7-3 | 43751-95D60-0ED Steering Bracket (NLA)
SKU: 43751-95D60-0ED Weight: 10.000000 Brand: Price: $ 146.08 |
Steering Bracket (NLA) | 1 | $ 146.08 | 1995 to 1997 | |
| 8 | 09160-40005 Washer (40x58x2)
SKU: 09160-40005 Weight: 0.125000 Brand: Price: $ 6.23 |
Washer (40x58x2) | 1 | $ 6.23 | ||
| 9 | 09284-40001 Oil Seal
SKU: 09284-40001 Weight: 0.060000 Brand: Price: $ 6.38 |
Oil Seal | 1 | $ 6.38 | S/N 132493 Newer | |
| 10 | 09306-22004 Swivel Bracket Bushing
SKU: 09306-22004 Weight: 0.060000 Brand: Price: $ 5.23 |
Swivel Bracket Bushing | 2 | $ 5.23 | ||
| 12 | 09117-08074 Bolt (8x22) (NLA)
SKU: 09117-08074 Weight: 0.100000 Brand: Price: $ 2.33 |
Bolt (8x22) (NLA) | 4 | $ 2.33 | ||
| 13 | 43411-96300 Steering Adjuster (NLA)
SKU: 43411-96300 Weight: 0.100000 Brand: Price: $ 4.98 |
Steering Adjuster (NLA) | 1 | $ 4.98 | ||
| 14 | 43421-96302 Adjuster Bushing
SKU: 43421-96302 Weight: 0.100000 Brand: Price: $ 7.82 |
Adjuster Bushing | 1 | $ 7.82 | ||
| 15 | 09119-08044 Bolt (8x23) (NLA)
SKU: 09119-08044 Weight: 0.100000 Brand: Price: $ 1.98 |
Bolt (8x23) (NLA) | 1 | $ 1.98 | ||
| 16-1 | 09440-13045 Spring (NLA)
SKU: 09440-13045 Weight: 0.100000 Brand: Price: $ 1.26 |
Spring (NLA) | 1 | $ 1.26 | 1989 to 1990 | |
| 16-2 | 09440-12036 Spring (NLA)
SKU: 09440-12036 Weight: 0.100000 Brand: Price: $ 1.62 |
Spring (NLA) | 1 | $ 1.62 | 1991 to 1997 | |
| 17 | 45231-96302 Reverse Lock Arm (NLA)
SKU: 45231-96302 Weight: 0.100000 Brand: Price: $ 0.00 |
Reverse Lock Arm (NLA) | 1 | $ 0.00 | ||
| 18 | 45246-96302 Spacer (NLA)
SKU: 45246-96302 Weight: 0.100000 Brand: Price: $ 1.67 |
Spacer (NLA) | 1 | $ 1.67 | ||
| 19 | 45241-96303 Reverse Lock Arm Link (NLA)
SKU: 45241-96303 Weight: 0.100000 Brand: Price: $ 7.49 |
Reverse Lock Arm Link (NLA) | 1 | $ 7.49 | ||
| 20 | 45252-96303 Release Lever Link
SKU: 45252-96303 Weight: 0.200000 Brand: Price: $ 7.45 |
Release Lever Link | 1 | $ 7.45 | ||
| 21 | 45255-96302 Release Lever Knob
SKU: 45255-96302 Weight: 0.060000 Brand: Price: $ 6.38 |
Release Lever Knob | 1 | $ 6.38 | ||
| 21A | 09205-02006 Spring Pin (2x12)
SKU: 09205-02006 Weight: 0.060000 Brand: Price: $ 1.07 |
Spring Pin (2x12) | 1 | $ 1.07 | ||
| 22 | 45257-96300 Release Lever Bushing
SKU: 45257-96300 Weight: 0.060000 Brand: Price: $ 1.57 |
Release Lever Bushing | 1 | $ 1.57 | ||
| 23 | 45260-96300 Release Lever
SKU: 45260-96300 Weight: 0.060000 Brand: Price: $ 6.06 |
Release Lever | 1 | $ 6.06 | ||
| 24 | 45311-96303-0ED Release Lever Bracket
SKU: 45311-96303-0ED Weight: 0.250000 Brand: Price: $ 20.74 |
Release Lever Bracket | 1 | $ 20.74 | ||
| 25 | 09116-05010 Bolt (5x12)
SKU: 09116-05010 Weight: 0.060000 Brand: Price: $ 2.14 |
Bolt (5x12) | 2 | $ 2.14 | ||
| 26 | 09111-10034 Bolt (10x16.5) (NLA)
SKU: 09111-10034 Weight: 0.100000 Brand: Price: $ 3.07 |
Bolt (10x16.5) (NLA) | 2 | $ 3.07 | ||
| 27 | 09140-10032 Nut
SKU: 09140-10032 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut | 2 | $ 2.04 | ||
| 28 | 43753-94400 Steering Bracket Grommet (NLA)
SKU: 43753-94400 Weight: 0.100000 Brand: Price: $ 2.76 |
Steering Bracket Grommet (NLA) | 1 | $ 2.76 | ||
| 29 | 09160-04012 Washer (4.2x10x1)
SKU: 09160-04012 Weight: 0.100000 Brand: Price: $ 1.47 |
Washer (4.2x10x1) | 1 | $ 1.47 | ||
| 30 | 09200-05011 Pin (NLA)
SKU: 09200-05011 Weight: 0.100000 Brand: Price: $ 5.64 |
Pin (NLA) | 1 | $ 5.64 | ||
| 31 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 32 | 09319-04001 Bushing
SKU: 09319-04001 Weight: 0.100000 Brand: Price: $ 1.26 |
Bushing | 1 | $ 1.26 | ||
| 33 | 09440-04021 Release Spring (NLA)
SKU: 09440-04021 Weight: 0.060000 Brand: Price: $ 0.88 |
Release Spring (NLA) | 1 | $ 0.88 | ||
| 34 | 09443-05013 Spring
SKU: 09443-05013 Weight: 0.060000 Brand: Price: $ 3.71 |
Spring | 1 | $ 3.71 | ||
| 35 | 09443-09036 Spring (NLA)
SKU: 09443-09036 Weight: 0.100000 Brand: Price: $ 7.01 |
Spring (NLA) | 1 | $ 7.01 | ||
| 36 | 67100-96300 Steering Bracket Attachment Set (NLA)
SKU: 67100-96300 Weight: 0.300000 Brand: Price: $ 30.28 |
Steering Bracket Attachment Set (NLA) | 1 | $ 30.28 | Optional | |
| 37 | 43755-96320 Steering Bracket Attachment (NLA)
SKU: 43755-96320 Weight: 0.250000 Brand: Price: $ 125.03 |
Steering Bracket Attachment (NLA) | 1 | $ 125.03 | Optional | |
| 38 | 09100-08224-XC0 Bolt (8x35)
SKU: 09100-08224-XC0 Weight: 0.060000 Brand: Price: $ 5.06 |
Bolt (8x35) | 2 | $ 5.06 | Optional | |
| 39 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 | Optional | |
| 40 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | Optional | |
| 41 | 43754-94301-0ED Steering Cover (NLA)
SKU: 43754-94301-0ED Weight: 1.500000 Brand: Price: $ 9.43 |
Steering Cover (NLA) | 1 | $ 9.43 | DT30RC 1988 to 1994 | |
| 42 | 03142-05103 Screw (NLA)
SKU: 03142-05103 Weight: 0.100000 Brand: Price: $ 1.21 |
Screw (NLA) | 2 | $ 1.21 | DT30RC | |
| 42A | 09250-33001 Cap
SKU: 09250-33001 Weight: 0.100000 Brand: Price: $ 3.72 |
Cap | 1 | $ 3.72 | DT30RC 1995 to 1997 | |
| 43 | 67100-99700 Remote Control Attachment (NLA)
SKU: 67100-99700 Weight: 0.100000 Brand: Price: $ 22.58 |
Remote Control Attachment (NLA) | 1 | $ 22.58 | Optional | |
| 44 | 45700-96313 Shallow Water Drive Assy
SKU: 45700-96313 Weight: 0.500000 Brand: Price: $ 85.26 |
Shallow Water Drive Assy | 1 | $ 85.26 | ||
| 45 | 45255-95500 Knob (NLA)
SKU: 45255-95500 Weight: 0.100000 Brand: Price: $ 2.64 |
Knob (NLA) | 1 | $ 2.64 | ||
| 46 | 45731-96312 Spring Bracket
SKU: 45731-96312 Weight: 0.100000 Brand: Price: $ 5.71 |
Spring Bracket | 1 | $ 5.71 | ||
| 47 | 09117-06038 Bolt (6x16) (NLA)
SKU: 09117-06038 Weight: 0.100000 Brand: Price: $ 1.51 |
Bolt (6x16) (NLA) | 1 | $ 1.51 | ||
| 48 | 09443-08031 Spring
SKU: 09443-08031 Weight: 0.060000 Brand: Price: $ 7.57 |
Spring | 1 | $ 7.57 | ||
| 49 | 09111-10045 Bolt (10x20.8) (NLA)
SKU: 09111-10045 Weight: 0.100000 Brand: Price: $ 3.66 |
Bolt (10x20.8) (NLA) | 2 | $ 3.66 | ||
| 50 | 09205-06013 Pin
SKU: 09205-06013 Weight: 0.060000 Brand: Price: $ 1.57 |
Pin | 1 | $ 1.57 | ||
| 51 | 41130-91L01 Clamp Bracket Shaft
SKU: 41130-91L01 Weight: 2.000000 Brand: Price: $ 165.37 |
Clamp Bracket Shaft | 1 | $ 165.37 | Not Shown | |
| 52 | 41310-96310 Clamp Bracket Lower Rod
SKU: 41310-96310 Weight: 0.100000 Brand: Price: $ 18.63 |
Clamp Bracket Lower Rod | 1 | $ 18.63 | Not Shown | |
| 53 | 45420-95D04 Tilt Lock Pin
SKU: 45420-95D04 Weight: 0.240000 Brand: Price: $ 28.32 |
Tilt Lock Pin | 1 | $ 28.32 | Not Shown | |
| 54 | 09100-08295 Bolt (8x165) (NLA)
SKU: 09100-08295 Weight: 0.100000 Brand: Price: $ 4.40 |
Bolt (8x165) (NLA) | 1 | $ 4.40 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
