Suzuki DT 30C Parts Listings 1988 to 1997

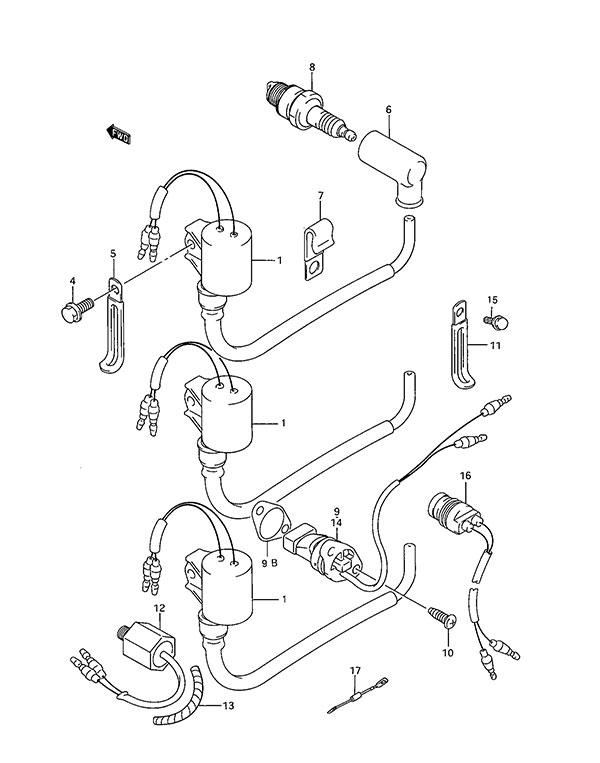

Fig. 17 - Ignition Coil
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33410-95D11 Ignition Coil Assembly
SKU: 33410-95D11 Weight: 0.260000 Brand: Price: $ 65.91 |
Ignition Coil Assembly | 3 | $ 65.91 | ||
| 4 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 5 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 3 | $ 1.86 | ||
| 6 | 33510-95520 Spark Plug Cap
SKU: 33510-95520 Weight: 0.060000 Brand: Price: $ 18.63 |
Spark Plug Cap | 3 | $ 18.63 | ||
| 7 | 09403-09320 Clamp (NLA)
SKU: 09403-09320 Weight: 0.100000 Brand: Price: $ 0.88 |
Clamp (NLA) | 3 | $ 0.88 | ||
| 8 | 09482-00277 NGK BR7HS Spark Plug
SKU: 09482-00277 Weight: 0.187500 Brand: Price: $ 3.51 |
NGK BR7HS Spark Plug | 3 | $ 3.51 | ||
| 9 | 34870-87D10 Cooling Water Sensor (NLA)
SKU: 34870-87D10 Weight: 0.080000 Brand: Price: $ 83.37 |
Cooling Water Sensor (NLA) | 1 | $ 83.37 | 1988 to 1991 | |
| 9B | 34875-94660 Cooling Water Sensor Gasket (NLA)
SKU: 34875-94660 Weight: 0.060000 Brand: Price: $ 3.77 |
Cooling Water Sensor Gasket (NLA) | 1 | $ 3.77 | ||
| 10 | 03212-0516B SCREW
SKU: 03212-0516B Weight: 0.060000 Brand: Price: $ 2.49 |
SCREW | 2 | $ 2.49 | ||
| 11-1 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 1 | $ 2.06 | ||
| 11-2 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 12-1 | 34820-95D00 Engine Temp Sensor (NLA)
SKU: 34820-95D00 Weight: 0.100000 Brand: Price: $ 66.14 |
Engine Temp Sensor (NLA) | 1 | $ 66.14 | 1988 | |
| 12-2 | 34820-95D10 Engine Temp Sensor (NLA)
SKU: 34820-95D10 Weight: 0.100000 Brand: Price: $ 116.46 |
Engine Temp Sensor (NLA) | 1 | $ 116.46 | 1989 | |
| 13 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 14 | 34820-95D20 Cylinder Temp Sensor
SKU: 34820-95D20 Weight: 0.250000 Brand: Price: $ 68.04 |
Cylinder Temp Sensor | 1 | $ 68.04 | 1992 to 1997 | |
| 15 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 | ||
| 16 | 34850-95D30 Heat Sensor Assembly
SKU: 34850-95D30 Weight: 0.080000 Brand: Price: $ 105.05 |
Heat Sensor Assembly | 1 | $ 105.05 | 1992 to 1997 | |
| 17 | 36840-95D00 Tachometer Lead
SKU: 36840-95D00 Weight: 0.100000 Brand: Price: $ 11.58 |
Tachometer Lead | 1 | $ 11.58 | DT30RC |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
