Suzuki DT 30C Parts Listings 1988 to 1997

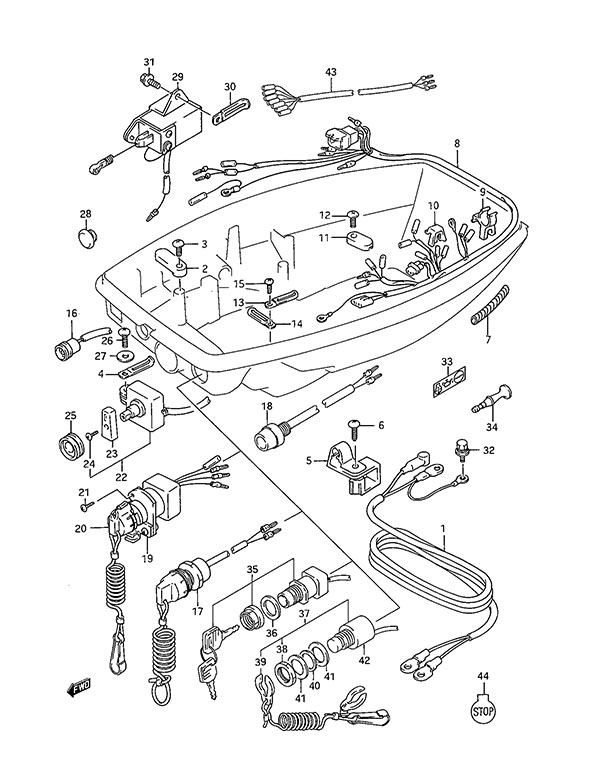

Fig. 16 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-95D02 Starter Motor Cable (NLA)
SKU: 33810-95D02 Weight: 5.000000 Brand: Price: $ 72.45 |
Starter Motor Cable (NLA) | 1 | $ 72.45 | ||
| 2 | 33815-87D00 Cable Stopper (NLA)
SKU: 33815-87D00 Weight: 0.100000 Brand: Price: $ 2.93 |
Cable Stopper (NLA) | 1 | $ 2.93 | ||
| 3 | 02142-06257 SCREW
SKU: 02142-06257 Weight: 0.060000 Brand: Price: $ 0.26 |
SCREW | 1 | $ 0.26 | ||
| 4 | 09404-08206 Clamp (L:82)
SKU: 09404-08206 Weight: 0.060000 Brand: Price: $ 3.21 |
Clamp (L:82) | 1 | $ 3.21 | ||
| 5 | 33816-96300 Cable Clamp
SKU: 33816-96300 Weight: 0.060000 Brand: Price: $ 5.56 |
Cable Clamp | 1 | $ 5.56 | ||
| 6 | 03241-0625A SCREW
SKU: 03241-0625A Weight: 0.100000 Brand: Price: $ 2.08 |
SCREW | 1 | $ 2.08 | ||
| 7-1 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | Ground Cable L:250->50 | |
| 7-2 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | Switch Lead L:250->100 | |
| 8-1 | 36610-95D01 Wiring Harness Assembly (NLA)
SKU: 36610-95D01 Weight: 5.000000 Brand: Price: $ 98.13 |
Wiring Harness Assembly (NLA) | 1 | $ 98.13 | Electric Starter 1988 to 1989 | |
| 8-2 | 36610-95D32 Wiring Harness Assembly (NLA)
SKU: 36610-95D32 Weight: 5.000000 Brand: Price: $ 55.27 |
Wiring Harness Assembly (NLA) | 1 | $ 55.27 | Electric Starter 1990 to 1992 | |
| 8-3 | 36610-95DC0 Wiring Harness Assembly (NLA)
SKU: 36610-95DC0 Weight: 5.000000 Brand: Price: $ 115.13 |
Wiring Harness Assembly (NLA) | 1 | $ 115.13 | Electric Starter 1993 to 1997 | |
| 8-4 | 36610-95D10 Wiring Harness Assembly (NLA)
SKU: 36610-95D10 Weight: 5.000000 Brand: Price: $ 53.07 |
Wiring Harness Assembly (NLA) | 1 | $ 53.07 | Manual Starter 1988 to 1989 | |
| 8-5 | 36610-95DA0 Wiring Harness Assembly (NLA)
SKU: 36610-95DA0 Weight: 5.000000 Brand: Price: $ 70.27 |
Wiring Harness Assembly (NLA) | 1 | $ 70.27 | Manual Starter 1990 to 1997 | |
| 8-6 | 36610-95D21 Wiring Harness Assembly (NLA)
SKU: 36610-95D21 Weight: 5.000000 Brand: Price: $ 66.89 |
Wiring Harness Assembly (NLA) | 1 | $ 66.89 | DT30RC 1988 to 1989 | |
| 8-7 | 36610-95D82 Wiring Harness Assembly (NLA)
SKU: 36610-95D82 Weight: 5.000000 Brand: Price: $ 108.23 |
Wiring Harness Assembly (NLA) | 1 | $ 108.23 | Opt: DT30RC 1988 to 1989 | |
| 8-8 | 36610-95DB0 Wiring Harness Assembly (NLA)
SKU: 36610-95DB0 Weight: 5.000000 Brand: Price: $ 106.58 |
Wiring Harness Assembly (NLA) | 1 | $ 106.58 | DT30RC Electric Starter 1990 to 1997 | |
| 8-9 | 36610-95D92 Wiring Harness Assembly (NLA)
SKU: 36610-95D92 Weight: 5.000000 Brand: Price: $ 125.04 |
Wiring Harness Assembly (NLA) | 1 | $ 125.04 | Optional 1990 to 1992 | |
| 8-10 | 36610-95D71 Wiring Harness Assembly (NLA)
SKU: 36610-95D71 Weight: 5.000000 Brand: Price: $ 124.97 |
Wiring Harness Assembly (NLA) | 1 | $ 124.97 | Optional 1993 to 1994 | |
| 8-11 | 36610-95DD0 Wiring Harness Assembly (NLA)
SKU: 36610-95DD0 Weight: 5.000000 Brand: Price: $ 125.73 |
Wiring Harness Assembly (NLA) | 1 | $ 125.73 | Optional 1995 to 1997 | |
| 9 | 36616-95301 Connector Holder
SKU: 36616-95301 Weight: 0.100000 Brand: Price: $ 6.21 |
Connector Holder | 1 | $ 6.21 | DT30RC | |
| 10 | 36641-94710 Cable Stopper (NLA)
SKU: 36641-94710 Weight: 0.100000 Brand: Price: $ 2.53 |
Cable Stopper (NLA) | 1 | $ 2.53 | ||
| 11 | 36618-87D00 Wiring Harness Stopper
SKU: 36618-87D00 Weight: 0.100000 Brand: Price: $ 3.66 |
Wiring Harness Stopper | 1 | $ 3.66 | ||
| 12 | 02142-06207 SCREW 6X20
SKU: 02142-06207 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 6X20 | 1 | $ 1.38 | ||
| 13 | 09404-06036 Clamp (L:80)
SKU: 09404-06036 Weight: 0.100000 Brand: Price: $ 1.75 |
Clamp (L:80) | 1 | $ 1.75 | ||
| 14 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 15-1 | 03212-0516B SCREW
SKU: 03212-0516B Weight: 0.060000 Brand: Price: $ 2.49 |
SCREW | 1 | $ 2.49 | ||
| 15-2 | 02112-06107 SCREW
SKU: 02112-06107 Weight: 0.125000 Brand: Price: $ 1.44 |
SCREW | 1 | $ 1.44 | ||
| 16-1 | 36360-89E10 Oil & Water Warning Lamp
SKU: 36360-89E10 Weight: 0.250000 Brand: Price: $ 53.41 |
Oil & Water Warning Lamp | 1 | $ 53.41 | 1988 to 1989 | |
| 16-2 | 36360-95D10 Oil & Water Warning Lamp
SKU: 36360-95D10 Weight: 0.250000 Brand: Price: $ 54.56 |
Oil & Water Warning Lamp | 1 | $ 54.56 | 1991 to 1997 | |
| 17 | 37820-94461 Emergency Stop Switch Assembly
SKU: 37820-94461 Weight: 0.150000 Brand: Price: $ 51.84 |
Emergency Stop Switch Assembly | 1 | $ 51.84 | Manual Starter | |
| 18 | 37800-92D22 Stop Switch Assembly (NLA)
SKU: 37800-92D22 Weight: 0.120000 Brand: Price: $ 26.13 |
Stop Switch Assembly (NLA) | 1 | $ 26.13 | Manual Starter | |
| 19 | 37110-95D03 Ignition Switch Assembly (NLA)
SKU: 37110-95D03 Weight: 0.500000 Brand: Price: $ 179.74 |
Ignition Switch Assembly (NLA) | 1 | $ 179.74 | Electric Starter | |
| 20-1 | 37141-95D10 (101) Ignition Key (NLA)
SKU: 37141-95D10 Weight: 0.200000 Brand: Price: $ 18.64 |
(101) Ignition Key (NLA) | 1 | $ 18.64 | Electric Starter | |
| 20-2 | 37141-95D50 (105) Ignition Key (NLA)
SKU: 37141-95D50 Weight: 0.100000 Brand: Price: $ 32.28 |
(105) Ignition Key (NLA) | 1 | $ 32.28 | Electric Starter | |
| 21 | 03242-0412B SCREW
SKU: 03242-0412B Weight: 0.125000 Brand: Price: $ 2.59 |
SCREW | 3 | $ 2.59 | ||
| 22-1 | 37920-95D00 Ignition Timing Switch Assembly (NLA)
SKU: 37920-95D00 Weight: 0.140000 Brand: Price: $ 78.43 |
Ignition Timing Switch Assembly (NLA) | 1 | $ 78.43 | 1988 | |
| 22-2 | 37920-95500 Ignition Timing Switch Assembly (NLA)
SKU: 37920-95500 Weight: 0.100000 Brand: Price: $ 53.66 |
Ignition Timing Switch Assembly (NLA) | 1 | $ 53.66 | 1989 to 1990 | |
| 23 | 37921-95D00 Knob (NLA)
SKU: 37921-95D00 Weight: 0.100000 Brand: Price: $ 4.82 |
Knob (NLA) | 1 | $ 4.82 | ||
| 24 | 02112-0408A SCREW
SKU: 02112-0408A Weight: 0.060000 Brand: Price: $ 1.11 |
SCREW | 1 | $ 1.11 | ||
| 25 | 37925-95D00 Ignition Timing Switch Cushion (NLA)
SKU: 37925-95D00 Weight: 0.100000 Brand: Price: $ 2.47 |
Ignition Timing Switch Cushion (NLA) | 1 | $ 2.47 | ||
| 26 | 03112-05203 Screw (NLA)
SKU: 03112-05203 Weight: 0.100000 Brand: Price: $ 0.98 |
Screw (NLA) | 1 | $ 0.98 | ||
| 27 | 09160-05043 Washer (5.5x16x1.2)
SKU: 09160-05043 Weight: 0.100000 Brand: Price: $ 0.00 |
Washer (5.5x16x1.2) | 1 | $ 0.00 | ||
| 28 | 09250-12006 Cap
SKU: 09250-12006 Weight: 0.060000 Brand: Price: $ 2.00 |
Cap | 1 | $ 2.00 | ||
| 29 | 38600-95D01 Choke Solenoid Assembly
SKU: 38600-95D01 Weight: 0.500000 Brand: Price: $ 101.38 |
Choke Solenoid Assembly | 1 | $ 101.38 | DT30RC | |
| 30 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | DT30RC | |
| 31 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 2 | $ 1.48 | DT30RC | |
| 32 | 01580-06167 BOLT
SKU: 01580-06167 Weight: 0.100000 Brand: Price: $ 2.88 |
BOLT | 1 | $ 2.88 | Electric Starter | |
| 33-1 | 36367-95D10-064 Oil/Water Lamp Label (NLA)
SKU: 36367-95D10-064 Weight: 0.100000 Brand: Price: $ 1.73 |
Oil/Water Lamp Label (NLA) | 1 | $ 1.73 | ||
| 33-2 | 36367-95D20-064 Oil/Water Lamp Label (NLA)
SKU: 36367-95D20-064 Weight: 0.100000 Brand: Price: $ 1.88 |
Oil/Water Lamp Label (NLA) | 1 | $ 1.88 | 1995 to 1997 | |
| 34 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 2 | $ 1.31 | ||
| 35 | 37110-95D21 Ignition Switch Assembly (NLA)
SKU: 37110-95D21 Weight: 0.500000 Brand: Price: $ 76.76 |
Ignition Switch Assembly (NLA) | 1 | $ 76.76 | Electric Starter 1993 to 1997 | |
| 36 | 09160-25069 Washer
SKU: 09160-25069 Weight: 0.100000 Brand: Price: $ 5.05 |
Washer | 1 | $ 5.05 | Electric Starter 1993 to 1997 | |
| 37-1 | 37820-92E05 Emergency Stop Switch Assembly
SKU: 37820-92E05 Weight: 0.250000 Brand: Price: $ 42.80 |
Emergency Stop Switch Assembly | 1 | $ 42.80 | Electric Starter 1993 to 1997 | |
| 37-2 | 37830-95D03 Emergency Stop Switch Assembly
SKU: 37830-95D03 Weight: 0.250000 Brand: Price: $ 45.92 |
Emergency Stop Switch Assembly | 1 | $ 45.92 | Manual Starter 1993 to 1997 | |
| 38 | 37826-92E00 Nut
SKU: 37826-92E00 Weight: 0.060000 Brand: Price: $ 5.77 |
Nut | 1 | $ 5.77 | ||
| 39 | 37823-92E02 Stop Switch Lanyard
SKU: 37823-92E02 Weight: 0.250000 Brand: Price: $ 19.68 |
Stop Switch Lanyard | 1 | $ 19.68 | ||
| 40 | 09160-12087 Washer
SKU: 09160-12087 Weight: 0.200000 Brand: Price: $ 1.99 |
Washer | 1 | $ 1.99 | 1993 to 1997 | |
| 41 | 09160-12067 Washer (12.5x23x1.0)
SKU: 09160-12067 Weight: 0.060000 Brand: Price: $ 3.13 |
Washer (12.5x23x1.0) | 2 | $ 3.13 | 1993 to 1997 | |
| 43 | 36630-92E00 Instrument Wire Assembly
SKU: 36630-92E00 Weight: 0.260000 Brand: Price: $ 67.69 |
Instrument Wire Assembly | 1 | $ 67.69 | Opt: 1995 to 1997 | |
| 44 | 37835-91J00-YAY Stop Label
SKU: 37835-91J00-YAY Weight: 0.060000 Brand: Price: $ 1.20 |
Stop Label | 1 | $ 1.20 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
