Suzuki DT 30C Parts Listings 1988 to 1997

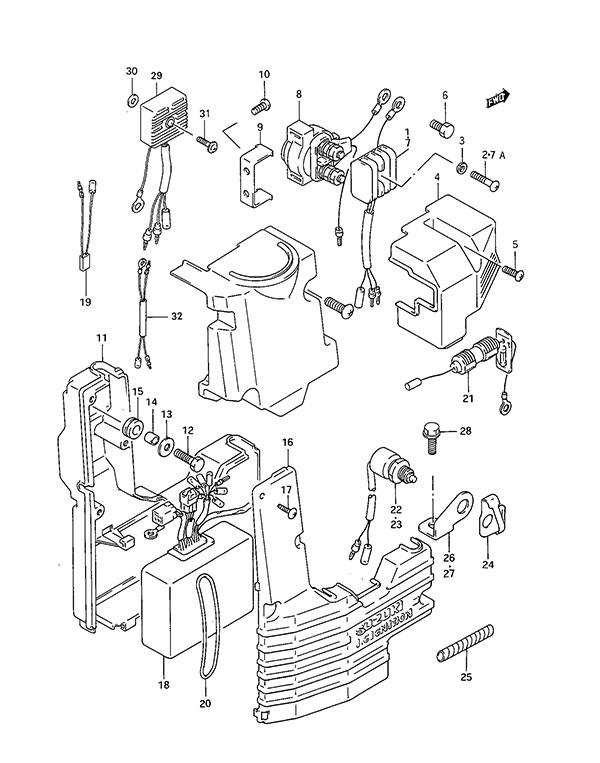

Fig. 15 - Electrical
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32800-95D02 Rectifier & Regulator Assembly
SKU: 32800-95D02 Weight: 0.250000 Brand: Price: $ 89.98 |
Rectifier & Regulator Assembly | 1 | $ 89.98 | 1988 to 1990 | |
| 2 | 02112-05257 SCREW 5X25
SKU: 02112-05257 Weight: 0.060000 Brand: Price: $ 1.49 |
SCREW 5X25 | 1 | $ 1.49 | 1988 to 1990 | |
| 3 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | 1988 to 1990 | |
| 4 | 32825-95D00 Rectifier & Relay Cover (NLA)
SKU: 32825-95D00 Weight: 0.500000 Brand: Price: $ 8.47 |
Rectifier & Relay Cover (NLA) | 1 | $ 8.47 | ||
| 5 | 09125-05115 Screw (5x16)
SKU: 09125-05115 Weight: 0.062500 Brand: Price: $ 3.26 |
Screw (5x16) | 2 | $ 3.26 | ||
| 6 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 | ||
| 7 | 32800-95D02 Rectifier & Regulator Assembly
SKU: 32800-95D02 Weight: 0.250000 Brand: Price: $ 89.98 |
Rectifier & Regulator Assembly | 1 | $ 89.98 | 1994 to 1997 | |
| 7A | 02142-05257 SCREW 5 X 20
SKU: 02142-05257 Weight: 0.062500 Brand: Price: $ 1.48 |
SCREW 5 X 20 | 1 | $ 1.48 | 1994 to 1997 | |
| 8 | 31800-94401 Starter Relay
SKU: 31800-94401 Weight: 0.340000 Brand: Price: $ 140.18 |
Starter Relay | 1 | $ 140.18 | Electric Starter | |
| 9 | 31805-95501 Relay Bracket
SKU: 31805-95501 Weight: 0.125000 Brand: Price: $ 4.20 |
Relay Bracket | 1 | $ 4.20 | Electric Starter | |
| 10 | 02112-35127 SCREW 5X12
SKU: 02112-35127 Weight: 0.060000 Brand: Price: $ 1.54 |
SCREW 5X12 | 2 | $ 1.54 | Electric Starter | |
| 11 | 32950-95D00 Electric Parts Holder (NLA)
SKU: 32950-95D00 Weight: 0.100000 Brand: Price: $ 14.29 |
Electric Parts Holder (NLA) | 1 | $ 14.29 | ||
| 12 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 13 | 09160-06052 Washer
SKU: 09160-06052 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 3 | $ 1.44 | ||
| 14 | 09180-06248 Spacer
SKU: 09180-06248 Weight: 0.060000 Brand: Price: $ 2.12 |
Spacer | 3 | $ 2.12 | ||
| 15 | 09320-08001 Cushion
SKU: 09320-08001 Weight: 0.060000 Brand: Price: $ 2.95 |
Cushion | 3 | $ 2.95 | ||
| 16 | 32951-95D01 Electric Parts Cover (NLA)
SKU: 32951-95D01 Weight: 0.100000 Brand: Price: $ 20.72 |
Electric Parts Cover (NLA) | 1 | $ 20.72 | ||
| 17 | 03212-0516B SCREW
SKU: 03212-0516B Weight: 0.060000 Brand: Price: $ 2.49 |
SCREW | 4 | $ 2.49 | ||
| 18-1 | 32900-95D00 CDI Unit Assembly (NLA)
SKU: 32900-95D00 Weight: 5.000000 Brand: Price: $ 789.85 |
CDI Unit Assembly (NLA) | 1 | $ 789.85 | 1988 | |
| 18-2 | 32900-95D40 CDI Unit Assembly (NLA)
SKU: 32900-95D40 Weight: 2.000000 Brand: Price: $ 969.31 |
CDI Unit Assembly (NLA) | 1 | $ 969.31 | 1989 to 1997 | |
| 19 | 32940-95D01 CDI Unit Resistor (NLA)
SKU: 32940-95D01 Weight: 0.100000 Brand: Price: $ 8.75 |
CDI Unit Resistor (NLA) | 1 | $ 8.75 | ||
| 20 | 09280-50008 O-Ring
SKU: 09280-50008 Weight: 0.060000 Brand: Price: $ 2.62 |
O-Ring | 1 | $ 2.62 | ||
| 21 | 36740-93901 Fuse Case Assembly
SKU: 36740-93901 Weight: 0.100000 Brand: Price: $ 18.47 |
Fuse Case Assembly | 1 | $ 18.47 | ||
| 22 | 37721-94406 Neutral Switch Assembly
SKU: 37721-94406 Weight: 0.200000 Brand: Price: $ 29.49 |
Neutral Switch Assembly | 1 | $ 29.49 | 1988 to 1990 | |
| 23 | 37721-87D03 Neutral Switch Assembly
SKU: 37721-87D03 Weight: 0.100000 Brand: Price: $ 44.12 |
Neutral Switch Assembly | 1 | $ 44.12 | 1991 to 1997 Reverse Switch | |
| 24 | 37725-95300 Neutral Switch Actuator
SKU: 37725-95300 Weight: 0.125000 Brand: Price: $ 5.67 |
Neutral Switch Actuator | 1 | $ 5.67 | ||
| 26 | 37726-95D02 Switch Bracket
SKU: 37726-95D02 Weight: 0.100000 Brand: Price: $ 6.21 |
Switch Bracket | 1 | $ 6.21 | Electric Starter | |
| 27 | 37726-94402 Switch Bracket
SKU: 37726-94402 Weight: 0.100000 Brand: Price: $ 4.84 |
Switch Bracket | 1 | $ 4.84 | 1991 to 1997 | |
| 28 | 01580-06167 BOLT
SKU: 01580-06167 Weight: 0.100000 Brand: Price: $ 2.88 |
BOLT | 2 | $ 2.88 | ||
| 29 | 32800-95D10 Rectifier & Regulator Assembly (NLA)
SKU: 32800-95D10 Weight: 0.200000 Brand: Price: $ 124.48 |
Rectifier & Regulator Assembly (NLA) | 1 | $ 124.48 | 1991 to 1993 | |
| 30 | 09180-06232 Spacer (NLA)
SKU: 09180-06232 Weight: 0.100000 Brand: Price: $ 1.86 |
Spacer (NLA) | 1 | $ 1.86 | 1991 to 1993 | |
| 31 | 02142-05307 SCREW
SKU: 02142-05307 Weight: 0.060000 Brand: Price: $ 2.37 |
SCREW | 1 | $ 2.37 | 1991 to 1993 | |
| 32 | 36810-95D00 CDI Unit to Reverse Switch Lead (NLA)
SKU: 36810-95D00 Weight: 0.100000 Brand: Price: $ 8.98 |
CDI Unit to Reverse Switch Lead (NLA) | 1 | $ 8.98 | 1991 to 1997 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
