Suzuki DT 30C Parts Listings 1988 to 1997

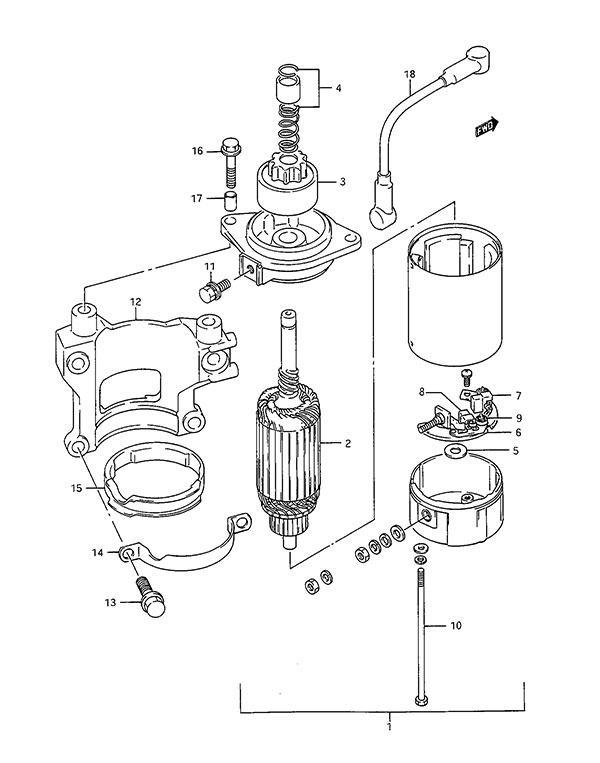

Fig. 13 - Starting Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31100-95D00 Starter Motor Assembly
SKU: 31100-95D00 Weight: 10.000000 Brand: Price: $ 776.71 |
Starter Motor Assembly | 1 | $ 776.71 | ||
| 2 | 31310-96300 Armature (NLA)
SKU: 31310-96300 Weight: 5.000000 Brand: Price: $ 269.35 |
Armature (NLA) | 1 | $ 269.35 | ||
| 3 | 31320-94400 Pinion Assembly
SKU: 31320-94400 Weight: 0.100000 Brand: Price: $ 274.10 |
Pinion Assembly | 1 | $ 274.10 | ||
| 4 | 31312-96300 Pinion Stopper Set
SKU: 31312-96300 Weight: 0.250000 Brand: Price: $ 15.24 |
Pinion Stopper Set | 1 | $ 15.24 | ||
| 5 | 31360-96300 Washer Kit (NLA)
SKU: 31360-96300 Weight: 0.100000 Brand: Price: $ 7.35 |
Washer Kit (NLA) | 1 | $ 7.35 | ||
| 6 | 31173-89J00 Brush Holder Assembly
SKU: 31173-89J00 Weight: 0.250000 Brand: Price: $ 93.18 |
Brush Holder Assembly | 1 | $ 93.18 | ||
| 7 | 31131-96300 Brush (+)
SKU: 31131-96300 Weight: 0.100000 Brand: Price: $ 22.37 |
Brush (+) | 1 | $ 22.37 | ||
| 8 | 31132-96300 Brush (-)
SKU: 31132-96300 Weight: 0.100000 Brand: Price: $ 11.89 |
Brush (-) | 1 | $ 11.89 | ||
| 9 | 31135-89J00 Spring (NLA)
SKU: 31135-89J00 Weight: 0.100000 Brand: Price: $ 4.88 |
Spring (NLA) | 2 | $ 4.88 | ||
| 10 | 31281-93340 Through Bolt (NLA)
SKU: 31281-93340 Weight: 0.100000 Brand: Price: $ 3.24 |
Through Bolt (NLA) | 2 | $ 3.24 | ||
| 11 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 12 | 31911-95D00-0ED Starting Motor Bracket (NLA)
SKU: 31911-95D00-0ED Weight: 1.000000 Brand: Price: $ 51.38 |
Starting Motor Bracket (NLA) | 1 | $ 51.38 | ||
| 13 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 4 | $ 2.82 | ||
| 14 | 31912-95D00 Starting Motor Band
SKU: 31912-95D00 Weight: 0.250000 Brand: Price: $ 7.70 |
Starting Motor Band | 1 | $ 7.70 | ||
| 15 | 31918-94402 Lower Damper
SKU: 31918-94402 Weight: 0.060000 Brand: Price: $ 9.82 |
Lower Damper | 1 | $ 9.82 | ||
| 16 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 2 | $ 2.82 | ||
| 17 | 04211-09189 PIN
SKU: 04211-09189 Weight: 0.060000 Brand: Price: $ 1.66 |
PIN | 2 | $ 1.66 | ||
| 18 | 33820-93900 Cable Assembly
SKU: 33820-93900 Weight: 0.500000 Brand: Price: $ 15.24 |
Cable Assembly | 1 | $ 15.24 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
