Suzuki DT 30C Parts Listings 1988 to 1997

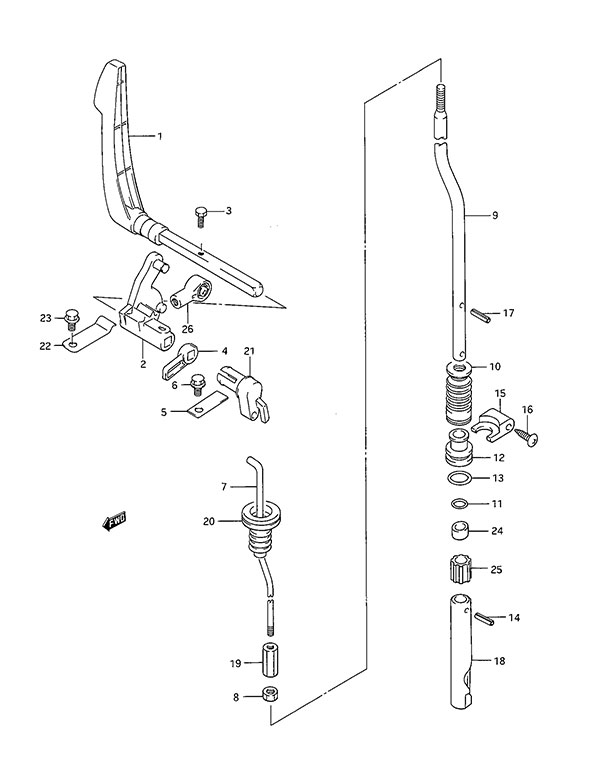

Fig. 12 - Clutch
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21110-95D01 Clutch Lever (NLA)
SKU: 21110-95D01 Weight: 0.100000 Brand: Price: $ 20.43 |
Clutch Lever (NLA) | 1 | $ 20.43 | ||
| 2 | 21121-95D01 Clutch Plate (NLA)
SKU: 21121-95D01 Weight: 0.100000 Brand: Price: $ 12.04 |
Clutch Plate (NLA) | 1 | $ 12.04 | ||
| 3 | 02162-05167 BOLT
SKU: 02162-05167 Weight: 0.060000 Brand: Price: $ 2.06 |
BOLT | 1 | $ 2.06 | ||
| 4 | 21313-95D00 Reverse Switch Arm (NLA)
SKU: 21313-95D00 Weight: 0.100000 Brand: Price: $ 4.74 |
Reverse Switch Arm (NLA) | 1 | $ 4.74 | ||
| 5 | 21126-95D00 Clutch Shaft Holder
SKU: 21126-95D00 Weight: 0.250000 Brand: Price: $ 2.49 |
Clutch Shaft Holder | 1 | $ 2.49 | ||
| 6 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 | ||
| 7 | 23111-95D02 Clutch Rod (NLA)
SKU: 23111-95D02 Weight: 0.100000 Brand: Price: $ 13.75 |
Clutch Rod (NLA) | 1 | $ 13.75 | ||
| 8 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 1 | $ 1.82 | ||
| 9-1 | 25111-96310 Shift Rod (S) (NLA)
SKU: 25111-96310 Weight: 0.100000 Brand: Price: $ 14.82 |
Shift Rod (S) (NLA) | 1 | $ 14.82 | w/Transom (S) | |
| 9-2 | 25111-96300 Shift Rod (L) (NLA)
SKU: 25111-96300 Weight: 0.100000 Brand: Price: $ 25.52 |
Shift Rod (L) (NLA) | 1 | $ 25.52 | Type: L | |
| 10 | 25222-96301 Shift Rod Boot
SKU: 25222-96301 Weight: 0.060000 Brand: Price: $ 6.28 |
Shift Rod Boot | 1 | $ 6.28 | ||
| 11 | 09280-08005 O-Ring
SKU: 09280-08005 Weight: 0.060000 Brand: Price: $ 1.78 |
O-Ring | 1 | $ 1.78 | ||
| 12 | 25211-91L00 Shift Rod Guide
SKU: 25211-91L00 Weight: 0.125000 Brand: Price: $ 20.10 |
Shift Rod Guide | 1 | $ 20.10 | ||
| 13 | 09280-13005 O-Ring
SKU: 09280-13005 Weight: 0.060000 Brand: Price: $ 1.86 |
O-Ring | 1 | $ 1.86 | ||
| 14 | 09205-03021 Spring Pin (3.5x12)
SKU: 09205-03021 Weight: 0.060000 Brand: Price: $ 1.07 |
Spring Pin (3.5x12) | 1 | $ 1.07 | ||
| 15 | 25215-96301 Shift Rod Guide Stopper
SKU: 25215-96301 Weight: 0.200000 Brand: Price: $ 4.84 |
Shift Rod Guide Stopper | 1 | $ 4.84 | ||
| 16 | 09139-04004 Screw (4x12)
SKU: 09139-04004 Weight: 0.200000 Brand: Price: $ 1.39 |
Screw (4x12) | 2 | $ 1.39 | ||
| 17 | 09205-02004 Spring Pin (2.5x12)
SKU: 09205-02004 Weight: 0.060000 Brand: Price: $ 0.92 |
Spring Pin (2.5x12) | 1 | $ 0.92 | ||
| 18 | 25311-96303 Shift Cam
SKU: 25311-96303 Weight: 0.100000 Brand: Price: $ 50.86 |
Shift Cam | 1 | $ 50.86 | ||
| 19 | 23311-95DL0 Clutch Rod Connector
SKU: 23311-95DL0 Weight: 0.060000 Brand: Price: $ 9.12 |
Clutch Rod Connector | 1 | $ 9.12 | ||
| 20 | 23131-92L00 Clutch Rod Boot
SKU: 23131-92L00 Weight: 0.060000 Brand: Price: $ 4.45 |
Clutch Rod Boot | 1 | $ 4.45 | ||
| 21 | 23211-94401 Clutch Rod Arm
SKU: 23211-94401 Weight: 0.060000 Brand: Price: $ 6.51 |
Clutch Rod Arm | 1 | $ 6.51 | ||
| 22 | 23213-94400 Clutch Spring
SKU: 23213-94400 Weight: 0.060000 Brand: Price: $ 2.96 |
Clutch Spring | 1 | $ 2.96 | ||
| 23 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 | ||
| 24 | 25231-96301 Magnet Spacer (NLA)
SKU: 25231-96301 Weight: 0.100000 Brand: Price: $ 1.19 |
Magnet Spacer (NLA) | 2 | $ 1.19 | ||
| 25 | 25232-96302 Gear Case Magnet
SKU: 25232-96302 Weight: 0.060000 Brand: Price: $ 5.83 |
Gear Case Magnet | 1 | $ 5.83 | ||
| 26 | 67467-94404 Cable Connector
SKU: 67467-94404 Weight: 0.060000 Brand: Price: $ 9.56 |
Cable Connector | 1 | $ 9.56 | Clutch DT30RC |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
