Suzuki DT 30C Parts Listings 1988 to 1997

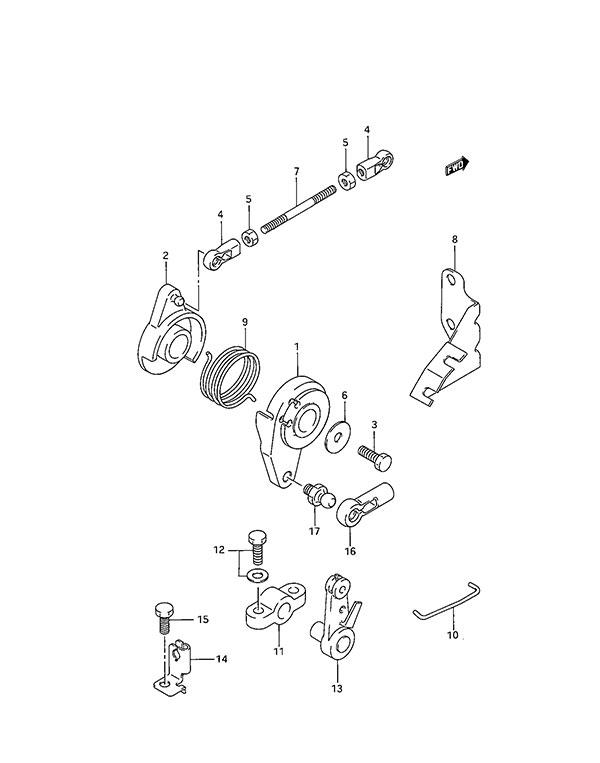

Fig. 11 - Throttle Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 19121-95D01 Throttle Control Lever
SKU: 19121-95D01 Weight: 0.060000 Brand: Price: $ 11.12 |
Throttle Control Lever | 1 | $ 11.12 | ||
| 2 | 19122-87D00 Interlink Lever
SKU: 19122-87D00 Weight: 0.060000 Brand: Price: $ 9.18 |
Interlink Lever | 1 | $ 9.18 | ||
| 3 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 | ||
| 4 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 2 | $ 4.52 | ||
| 5 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | ||
| 6 | 09160-06046 Washer (6.5x20x1.5)
SKU: 09160-06046 Weight: 0.060000 Brand: Price: $ 1.99 |
Washer (6.5x20x1.5) | 1 | $ 1.99 | ||
| 7 | 19136-94301 Throttle Rod
SKU: 19136-94301 Weight: 0.125000 Brand: Price: $ 6.74 |
Throttle Rod | 1 | $ 6.74 | ||
| 8 | 19184-95D01 Throttle Cable Bracket (NLA)
SKU: 19184-95D01 Weight: 0.200000 Brand: Price: $ 10.51 |
Throttle Cable Bracket (NLA) | 1 | $ 10.51 | ||
| 9 | 19185-87D00 Throttle Spring
SKU: 19185-87D00 Weight: 0.060000 Brand: Price: $ 6.21 |
Throttle Spring | 1 | $ 6.21 | ||
| 10 | 19654-94421 Interlock Rod
SKU: 19654-94421 Weight: 0.200000 Brand: Price: $ 3.71 |
Interlock Rod | 1 | $ 3.71 | ||
| 11 | 19815-94400 Holder (NLA)
SKU: 19815-94400 Weight: 0.060000 Brand: Price: $ 2.72 |
Holder (NLA) | 1 | $ 2.72 | ||
| 12 | 02162-06207 SCREW
SKU: 02162-06207 Weight: 0.060000 Brand: Price: $ 1.51 |
SCREW | 2 | $ 1.51 | ||
| 13 | 19851-95D00 NSI Lever (NLA)
SKU: 19851-95D00 Weight: 0.100000 Brand: Price: $ 2.89 |
NSI Lever (NLA) | 1 | $ 2.89 | ||
| 14 | 19861-96301 NSI Cable Stay (NLA)
SKU: 19861-96301 Weight: 0.100000 Brand: Price: $ 1.61 |
NSI Cable Stay (NLA) | 1 | $ 1.61 | ||
| 15 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 | ||
| 16 | 67466-95200 Cable Connector
SKU: 67466-95200 Weight: 0.060000 Brand: Price: $ 5.35 |
Cable Connector | 1 | $ 5.35 | Throttle DT30RC | |
| 17 | 09119-06047 Pivot Ball
SKU: 09119-06047 Weight: 0.060000 Brand: Price: $ 6.99 |
Pivot Ball | 1 | $ 6.99 | Throttle DT30RC |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
