Suzuki DT 30C Parts Listings 1988 to 1997

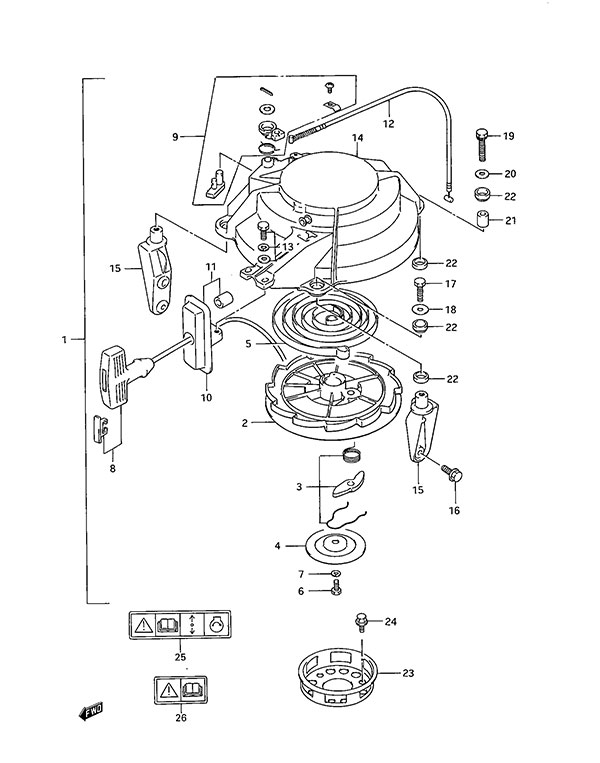

Fig. 10 - Recoil Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 18100-95D11 Recoil Starter Assembly (NLA)
SKU: 18100-95D11 Weight: 3.400000 Brand: Price: $ 305.64 |
Recoil Starter Assembly (NLA) | 1 | $ 305.64 | Requires Ref# 27 | |
| 1-2 | 18100-95D11 Recoil Starter Assembly (NLA)
SKU: 18100-95D11 Weight: 3.400000 Brand: Price: $ 305.64 |
Recoil Starter Assembly (NLA) | 1 | $ 305.64 | 1991 to 1997 | |
| 2 | 18121-95D00 Reel (NLA)
SKU: 18121-95D00 Weight: 0.100000 Brand: Price: $ 39.13 |
Reel (NLA) | 1 | $ 39.13 | ||
| 3 | 18130-93900 Ratchet Set
SKU: 18130-93900 Weight: 0.100000 Brand: Price: $ 16.19 |
Ratchet Set | 1 | $ 16.19 | ||
| 4 | 18151-93900 Plate
SKU: 18151-93900 Weight: 0.100000 Brand: Price: $ 8.60 |
Plate | 1 | $ 8.60 | ||
| 5 | 18142-93900 Recoil Spring
SKU: 18142-93900 Weight: 0.250000 Brand: Price: $ 29.96 |
Recoil Spring | 1 | $ 29.96 | ||
| 6 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 7 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 8 | 18210-93002 Grip Assembly
SKU: 18210-93002 Weight: 0.250000 Brand: Price: $ 16.38 |
Grip Assembly | 1 | $ 16.38 | ||
| 9 | 18280-95D00 NSI Set
SKU: 18280-95D00 Weight: 0.100000 Brand: Price: $ 17.60 |
NSI Set | 1 | $ 17.60 | ||
| 10-1 | 18191-94400 Guide Plate (NLA)
SKU: 18191-94400 Weight: 0.100000 Brand: Price: $ 20.08 |
Guide Plate (NLA) | 1 | $ 20.08 | For Ref# 1-1 | |
| 10-2 | 18191-94410 Guide Plate (NLA)
SKU: 18191-94410 Weight: 0.100000 Brand: Price: $ 26.94 |
Guide Plate (NLA) | 1 | $ 26.94 | For Ref# 1-2 | |
| 11 | 18190-95D00 Guide Set (NLA)
SKU: 18190-95D00 Weight: 0.100000 Brand: Price: $ 29.30 |
Guide Set (NLA) | 1 | $ 29.30 | ||
| 12 | 18290-95D01 NSI Cable (NLA)
SKU: 18290-95D01 Weight: 0.100000 Brand: Price: $ 16.01 |
NSI Cable (NLA) | 1 | $ 16.01 | ||
| 13 | 01570-06167 BOLT
SKU: 01570-06167 Weight: 0.100000 Brand: Price: $ 2.62 |
BOLT | 2 | $ 2.62 | ||
| 14 | 18111-95D01 Starter Case (NLA)
SKU: 18111-95D01 Weight: 0.100000 Brand: Price: $ 101.75 |
Starter Case (NLA) | 1 | $ 101.75 | ||
| 15 | 18711-95D00-0ED Recoil Starter Brace (NLA)
SKU: 18711-95D00-0ED Weight: 0.100000 Brand: Price: $ 28.70 |
Recoil Starter Brace (NLA) | 2 | $ 28.70 | ||
| 16 | 02162-06207 SCREW
SKU: 02162-06207 Weight: 0.060000 Brand: Price: $ 1.51 |
SCREW | 4 | $ 1.51 | ||
| 17 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 18 | 09160-06066 Washer (6.5x20x1.6)
SKU: 09160-06066 Weight: 0.250000 Brand: Price: $ 1.91 |
Washer (6.5x20x1.6) | 2 | $ 1.91 | ||
| 19 | 01550-08357 BOLT
SKU: 01550-08357 Weight: 0.060000 Brand: Price: $ 3.54 |
BOLT | 1 | $ 3.54 | ||
| 20-1 | 09160-08105 Washer (NLA)
SKU: 09160-08105 Weight: 0.100000 Brand: Price: $ 1.77 |
Washer (NLA) | 1 | $ 1.77 | ||
| 20-2 | 09160-08054 Washer
SKU: 09160-08054 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 1 | $ 1.44 | 1993 to 1997 | |
| 21 | 09180-08203 Spacer (NLA)
SKU: 09180-08203 Weight: 0.125000 Brand: Price: $ 2.80 |
Spacer (NLA) | 1 | $ 2.80 | ||
| 22 | 09320-12059 Cushion
SKU: 09320-12059 Weight: 0.060000 Brand: Price: $ 3.00 |
Cushion | 6 | $ 3.00 | ||
| 23 | 18411-95D00 Starter Cup (NLA)
SKU: 18411-95D00 Weight: 0.100000 Brand: Price: $ 16.61 |
Starter Cup (NLA) | 1 | $ 16.61 | ||
| 24 | 01550-08127 BOLT 8 X 12
SKU: 01550-08127 Weight: 0.100000 Brand: Price: $ 2.84 |
BOLT 8 X 12 | 3 | $ 2.84 | ||
| 25 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 | DT30C | |
| 26 | 69712-93E10 Label S.I.G.P
SKU: 69712-93E10 Weight: 0.100000 Brand: Price: $ 4.03 |
Label S.I.G.P | 1 | $ 4.03 | DT30RC | |
| 27 | 61622-95500 Recoil Starter Seal
SKU: 61622-95500 Weight: 0.125000 Brand: Price: $ 10.05 |
Recoil Starter Seal | 1 | $ 10.05 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
