Suzuki DT 30C Parts Listings 1988 to 1997

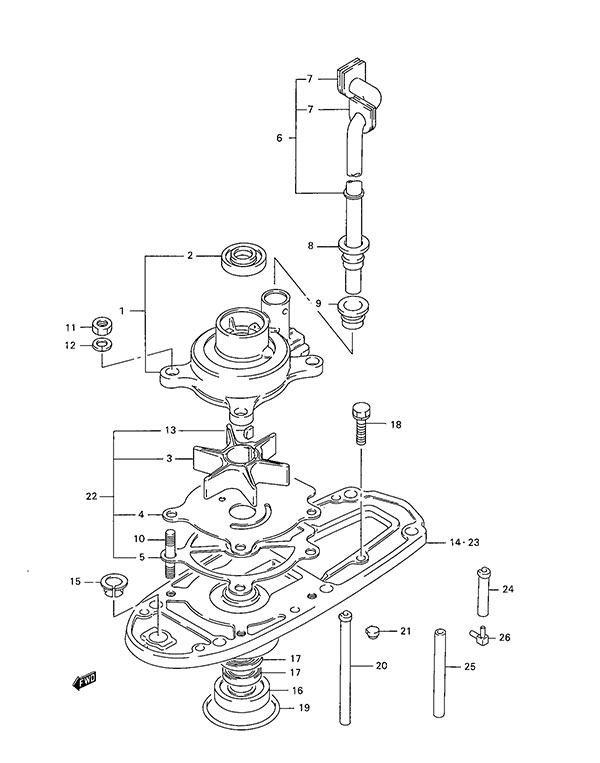

Fig. 9 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17410-95D11 Replaced by 17410-95D20
SKU: 17410-95D11 Weight: 0.820000 Brand: Price: $ 126.72 |
Replaced by 17410-95D20 | 1 | $ 126.72 | ||
| 2 | 09282-17007 Oil Seal
SKU: 09282-17007 Weight: 0.060000 Brand: Price: $ 10.20 |
Oil Seal | 1 | $ 10.20 | ||
| 3 | 17461-964L0 Water Pump Impeller
SKU: 17461-964L0 Weight: 0.060000 Brand: Price: $ 37.22 |
Water Pump Impeller | 1 | $ 37.22 | ||
| 4 | 17471-94401 Water Pump Plate
SKU: 17471-94401 Weight: 0.100000 Brand: Price: $ 8.73 |
Water Pump Plate | 1 | $ 8.73 | ||
| 5 | 17472-96304 Water Pump Plate Gasket
SKU: 17472-96304 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Pump Plate Gasket | 1 | $ 2.28 | ||
| 6-1 | 17560-95D11 Water Tube (S) (NLA)
SKU: 17560-95D11 Weight: 0.100000 Brand: Price: $ 20.42 |
Water Tube (S) (NLA) | 1 | $ 20.42 | w/Transom (S) | |
| 6-2 | 17560-95D01 Water Tube (L)
SKU: 17560-95D01 Weight: 0.300000 Brand: Price: $ 30.85 |
Water Tube (L) | 1 | $ 30.85 | Type: L | |
| 7 | 17563-91L10 Water Tube Grommet
SKU: 17563-91L10 Weight: 0.060000 Brand: Price: $ 4.39 |
Water Tube Grommet | 2 | $ 4.39 | Upper | |
| 8 | 17565-91L00 Water Tube Grommet
SKU: 17565-91L00 Weight: 0.060000 Brand: Price: $ 3.45 |
Water Tube Grommet | 1 | $ 3.45 | ||
| 9 | 17566-96303 Water Tube Grommet
SKU: 17566-96303 Weight: 0.060000 Brand: Price: $ 2.25 |
Water Tube Grommet | 1 | $ 2.25 | Lower | |
| 10-1 | 09108-06068 Stud Bolt (6x25)
SKU: 09108-06068 Weight: 0.060000 Brand: Price: $ 3.25 |
Stud Bolt (6x25) | 4 | $ 3.25 | ||
| 10-2 | 09108-06069 Stud Bolt (6x30)
SKU: 09108-06069 Weight: 0.060000 Brand: Price: $ 3.19 |
Stud Bolt (6x30) | 4 | $ 3.19 | 1996 to 1997 | |
| 11 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 4 | $ 1.82 | ||
| 12 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 4 | $ 1.49 | ||
| 13 | 09420-04006 Impeller Key
SKU: 09420-04006 Weight: 0.060000 Brand: Price: $ 3.93 |
Impeller Key | 1 | $ 3.93 | ||
| 14 | 56130-95D20-0ED Drive Shaft Housing
SKU: 56130-95D20-0ED Weight: 1.040000 Brand: Price: $ 190.10 |
Drive Shaft Housing | 1 | $ 190.10 | ||
| 15 | 25214-96302 Shift Rod Bushing
SKU: 25214-96302 Weight: 0.060000 Brand: Price: $ 3.35 |
Shift Rod Bushing | 1 | $ 3.35 | ||
| 16 | 09265-17002 Bearing (17x40x17.25)
SKU: 09265-17002 Weight: 0.300000 Brand: Price: $ 50.57 |
Bearing (17x40x17.25) | 1 | $ 50.57 | ||
| 17 | 09282-17006 Oil Seal
SKU: 09282-17006 Weight: 0.060000 Brand: Price: $ 5.72 |
Oil Seal | 2 | $ 5.72 | ||
| 18 | 09117-06031 Bolt (6x20)
SKU: 09117-06031 Weight: 0.060000 Brand: Price: $ 3.53 |
Bolt (6x20) | 2 | $ 3.53 | ||
| 19 | 09280-50005 O-Ring
SKU: 09280-50005 Weight: 0.060000 Brand: Price: $ 1.56 |
O-Ring | 1 | $ 1.56 | ||
| 20 | 17453-96300 Drain Hose (NLA)
SKU: 17453-96300 Weight: 0.100000 Brand: Price: $ 1.94 |
Drain Hose (NLA) | 1 | $ 1.94 | 1995 | |
| 21 | 56138-96300 Water Inlet Cap (NLA)
SKU: 56138-96300 Weight: 0.100000 Brand: Price: $ 4.32 |
Water Inlet Cap (NLA) | 1 | $ 4.32 | 1995 | |
| 22 | 17400-96404 Water Pump Repair Kit DT25c / DT30c
SKU: 17400-96404 Weight: 0.250000 Brand: Price: $ 45.97 |
Water Pump Repair Kit DT25c / DT30c | 1 | $ 45.97 | Optional | |
| 23 | 56130-95D20-0ED Drive Shaft Housing
SKU: 56130-95D20-0ED Weight: 1.040000 Brand: Price: $ 190.10 |
Drive Shaft Housing | 1 | $ 190.10 | Optional | |
| 24 | 17453-95D00 Water Inlet Drain (NLA)
SKU: 17453-95D00 Weight: 0.100000 Brand: Price: $ 2.62 |
Water Inlet Drain (NLA) | 1 | $ 2.62 | Optional | |
| 25 | 09355-40805-600 Hose (4x8x600)
SKU: 09355-40805-600 Weight: 0.250000 Brand: Price: $ 9.81 |
Hose (4x8x600) | 1 | $ 9.81 | Optional L:600->130 | |
| 26 | 09367-04005 Union (NLA)
SKU: 09367-04005 Weight: 0.100000 Brand: Price: $ 1.65 |
Union (NLA) | 1 | $ 1.65 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
