Suzuki DF 140 Parts Listings - 2002 to 2011
S/N 14001F-251001 to 14002F-11XXXX
S/N 14001Z-251001 to 14002Z-11XXXX

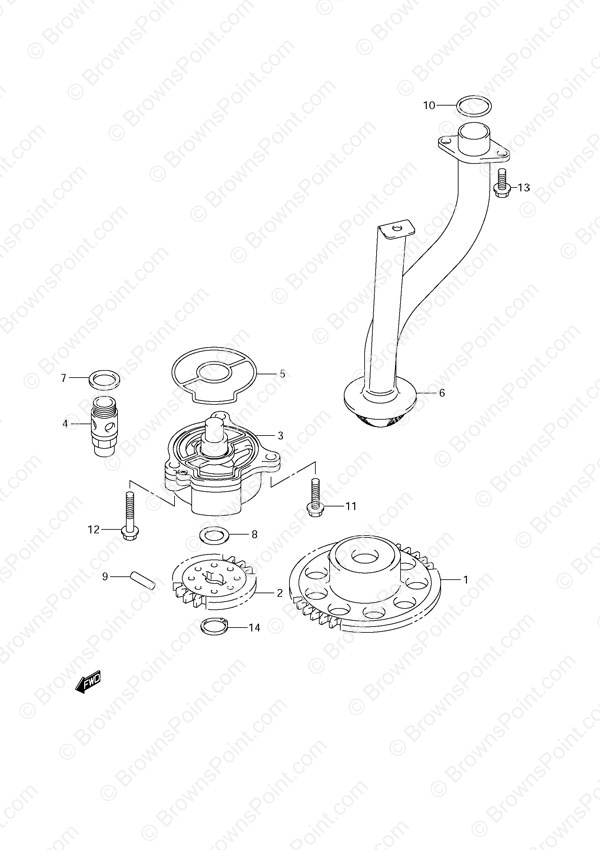

Fig. 17 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 12630-92811 Oil Pump Gear Set
SKU: 12630-92811 Weight: 0.100000 Brand: Price: $ 99.49 |
Oil Pump Gear Set | 1 | $ 99.49 | <b>Includes Ref# 2</b> | |
| 1-2 | 12632-92J12 Oil Pump Drive Gear
SKU: 12632-92J12 Weight: 2.000000 Brand: Price: $ 54.36 |
Oil Pump Drive Gear | 1 | $ 54.36 | DF140T:425120 Newer DF140Z:421437 Newer | |
| 2-1 | 16113-90J00 Oil Pump Driven Gear (NLA)
SKU: 16113-90J00 Weight: 0.100000 Brand: Price: $ 27.77 |
Oil Pump Driven Gear (NLA) | 1 | $ 27.77 | ||
| 2-2 | 16113-92J11 Oil Pump Driven Gear
SKU: 16113-92J11 Weight: 0.300000 Brand: Price: $ 33.70 |
Oil Pump Driven Gear | 1 | $ 33.70 | DF140T:425120 Newer DF140Z:421437 Newer | |
| 3 | 16400-90J00 Oil Pump Assembly
SKU: 16400-90J00 Weight: 0.960000 Brand: Price: $ 200.12 |
Oil Pump Assembly | 1 | $ 200.12 | ||
| 4 | 16440-99E00 Oil Relief Valve
SKU: 16440-99E00 Weight: 0.250000 Brand: Price: $ 38.10 |
Oil Relief Valve | 1 | $ 38.10 | ||
| 5 | 16451-90J00 Oil Pump O-Ring
SKU: 16451-90J00 Weight: 0.060000 Brand: Price: $ 8.98 |
Oil Pump O-Ring | 1 | $ 8.98 | ||
| 6 | 16520-90J00 Oil Pump Strainer
SKU: 16520-90J00 Weight: 2.000000 Brand: Price: $ 47.86 |
Oil Pump Strainer | 1 | $ 47.86 | ||
| 7 | 09168-16002 Gasket (16x22x2.0)
SKU: 09168-16002 Weight: 0.060000 Brand: Price: $ 1.91 |
Gasket (16x22x2.0) | 1 | $ 1.91 | ||
| 8 | 09181-12158 Washer (12x20x0.5)
SKU: 09181-12158 Weight: 0.100000 Brand: Price: $ 2.27 |
Washer (12x20x0.5) | 1 | $ 2.27 | ||
| 9 | 09261-05006 Pin (5x18)
SKU: 09261-05006 Weight: 0.100000 Brand: Price: $ 1.46 |
Pin (5x18) | 1 | $ 1.46 | ||
| 10-1 | 09280-22020 O-Ring
SKU: 09280-22020 Weight: 0.060000 Brand: Price: $ 3.39 |
O-Ring | 1 | $ 3.39 | ||
| 10-2 | 09280-22020 O-Ring
SKU: 09280-22020 Weight: 0.060000 Brand: Price: $ 3.39 |
O-Ring | 2 | $ 3.39 | DF140T:684376 Newer DF140Z:680510 Newer | |
| 12 | 01547-06357 BOLT 6X35
SKU: 01547-06357 Weight: 0.100000 Brand: Price: $ 2.04 |
BOLT 6X35 | 2 | $ 2.04 | ||
| 11 | 01547-06257 BOLT 6X25
SKU: 01547-06257 Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT 6X25 | 1 | $ 2.04 | ||
| 13 | 01550-0616A BOLT
SKU: 01550-0616A Weight: 0.100000 Brand: Price: $ 1.97 |
BOLT | 3 | $ 1.97 | ||
| 14 | 08331-3112A Circlip
SKU: 08331-3112A Weight: 0.060000 Brand: Price: $ 1.78 |
Circlip | 1 | $ 1.78 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
