Suzuki DT 30C Parts Listings 1988 to 1994

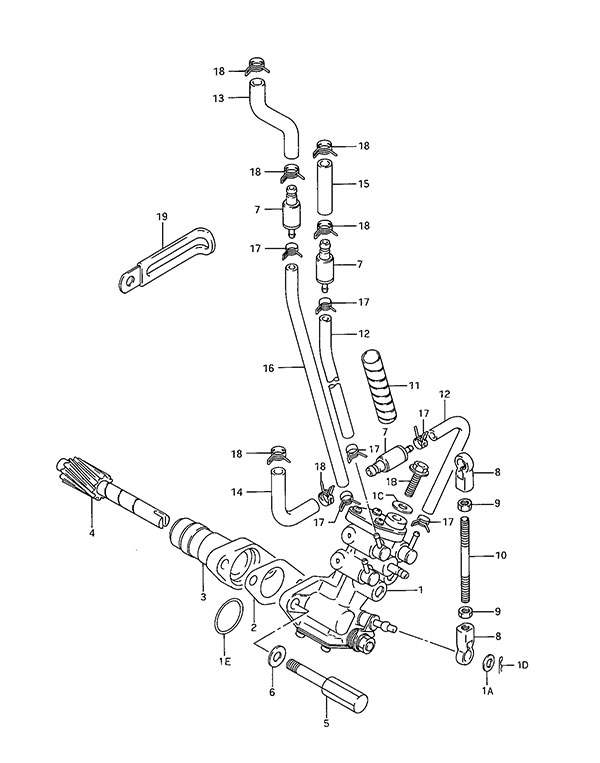

Fig. 8 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 16100-95D11 Oil Pump Assembly (NLA)
SKU: 16100-95D11 Weight: 0.100000 Brand: Price: $ 286.59 |
Oil Pump Assembly (NLA) | 1 | $ 286.59 | ||
| 1A | 13432-33110 Washer
SKU: 13432-33110 Weight: 0.060000 Brand: Price: $ 3.98 |
Washer | 1 | $ 3.98 | ||
| 1B | 16191-94600 Air Vent Bolt (NLA)
SKU: 16191-94600 Weight: 0.100000 Brand: Price: $ 3.52 |
Air Vent Bolt (NLA) | 1 | $ 3.52 | ||
| 1C | 16192-94600 Air Vent Washer (NLA)
SKU: 16192-94600 Weight: 0.060000 Brand: Price: $ 1.69 |
Air Vent Washer (NLA) | 1 | $ 1.69 | ||
| 1D | 16195-87D00 Snap Pin
SKU: 16195-87D00 Weight: 0.060000 Brand: Price: $ 2.37 |
Snap Pin | 1 | $ 2.37 | ||
| 1E | 16198-87D00 Oil Pump O-Ring
SKU: 16198-87D00 Weight: 0.060000 Brand: Price: $ 1.65 |
Oil Pump O-Ring | 1 | $ 1.65 | ||
| 2 | 16731-95520 Oil Pump Retainer Gasket (NLA)
SKU: 16731-95520 Weight: 0.060000 Brand: Price: $ 2.75 |
Oil Pump Retainer Gasket (NLA) | 1 | $ 2.75 | ||
| 3 | 16340-95D00 Oil Pump Retainer (NLA)
SKU: 16340-95D00 Weight: 0.100000 Brand: Price: $ 23.56 |
Oil Pump Retainer (NLA) | 1 | $ 23.56 | ||
| 4 | 16331-95D00 Oil Pump Driven Gear (NLA)
SKU: 16331-95D00 Weight: 0.100000 Brand: Price: $ 31.07 |
Oil Pump Driven Gear (NLA) | 1 | $ 31.07 | ||
| 5 | 09119-06067 Bolt (NLA)
SKU: 09119-06067 Weight: 0.100000 Brand: Price: $ 4.25 |
Bolt (NLA) | 2 | $ 4.25 | ||
| 6 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 2 | $ 1.85 | ||
| 7-1 | 16710-94641 Oil Check Valve (Double)
SKU: 16710-94641 Weight: 0.060000 Brand: Price: $ 27.53 |
Oil Check Valve (Double) | 3 | $ 27.53 | 1988 | |
| 7-2 | 16710-92E01 Oil Check Valve (Single)
SKU: 16710-92E01 Weight: 0.060000 Brand: Price: $ 19.39 |
Oil Check Valve (Single) | 3 | $ 19.39 | 1989 to 1994 | |
| 8 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 2 | $ 4.52 | ||
| 9 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | ||
| 10 | 19136-94301 Throttle Rod
SKU: 19136-94301 Weight: 0.125000 Brand: Price: $ 6.74 |
Throttle Rod | 1 | $ 6.74 | ||
| 11 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 6 | $ 8.45 | ||
| 12-1 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 2 | $ 6.08 | 1988 to 1990 L:600->80 | |
| 12-2 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 2 | $ 7.06 | 1991 to 1994 L:600->100 | |
| 13 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->60 | |
| 14 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->60 | |
| 15 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->30 | |
| 16-1 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | 1988 to 1990 L:600->165 | |
| 16-2 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | 1991 to 1994 L:600->165 | |
| 17 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 6 | $ 2.12 | ||
| 18-1 | 09401-08409 Clamp
SKU: 09401-08409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 6 | $ 2.02 | 1988 to 1990 | |
| 18-2 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 6 | $ 1.78 | 1991 to 1994 | |
| 19 | 09404-08206 Clamp (L:82)
SKU: 09404-08206 Weight: 0.060000 Brand: Price: $ 3.21 |
Clamp (L:82) | 1 | $ 3.21 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
