Suzuki DT 30C Parts Listings 1988 to 1994

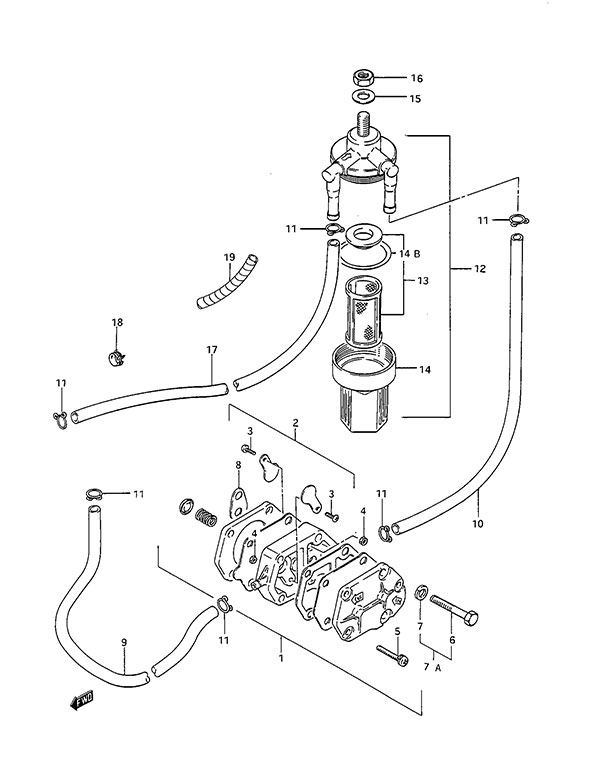

Fig. 7 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-94312 Fuel Pump Assembly
SKU: 15100-94312 Weight: 0.400000 Brand: Price: $ 111.84 |
Fuel Pump Assembly | 1 | $ 111.84 | ||
| 2 | 15170-94312 Fuel Pump Diaphragm Set
SKU: 15170-94312 Weight: 0.120000 Brand: Price: $ 20.60 |
Fuel Pump Diaphragm Set | 1 | $ 20.60 | ||
| 3 | 15183-94301 Fuel Pump Screw
SKU: 15183-94301 Weight: 0.060000 Brand: Price: $ 1.74 |
Fuel Pump Screw | 2 | $ 1.74 | ||
| 4 | 15186-94300 Nut
SKU: 15186-94300 Weight: 0.060000 Brand: Price: $ 1.62 |
Nut | 2 | $ 1.62 | ||
| 5 | 15851-94300 Fuel Pump Screen
SKU: 15851-94300 Weight: 0.060000 Brand: Price: $ 2.75 |
Fuel Pump Screen | 3 | $ 2.75 | ||
| 6 | 01500-0640B BOLT
SKU: 01500-0640B Weight: 0.060000 Brand: Price: $ 2.62 |
BOLT | 2 | $ 2.62 | ||
| 7 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 7A | 01570-06407 Bolt (NLA)
SKU: 01570-06407 Weight: 0.100000 Brand: Price: $ 1.62 |
Bolt (NLA) | 2 | $ 1.62 | 1994 | |
| 8 | 15321-99710 Fuel Pump Gasket
SKU: 15321-99710 Weight: 0.060000 Brand: Price: $ 3.70 |
Fuel Pump Gasket | 1 | $ 3.70 | ||
| 9 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Pump to Carb L:600->130 | |
| 10 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Filter to Carb L:600->120 | |
| 11 | 09401-08410 Clip
SKU: 09401-08410 Weight: 0.060000 Brand: Price: $ 1.86 |
Clip | 6 | $ 1.86 | 1988 to 1990 | |
| 12 | 15410-94401 Fuel Filter
SKU: 15410-94401 Weight: 0.140000 Brand: Price: $ 22.88 |
Fuel Filter | 1 | $ 22.88 | ||
| 13-1 | 15430-93412 Fuel Filter Strainer Set
SKU: 15430-93412 Weight: 0.060000 Brand: Price: $ 10.52 |
Fuel Filter Strainer Set | 1 | $ 10.52 | S/N 461515 Older | |
| 13-2 | 15430-93411 Fuel Filter Strainer Set
SKU: 15430-93411 Weight: 0.060000 Brand: Price: $ 11.05 |
Fuel Filter Strainer Set | 1 | $ 11.05 | S/N 461516 Newer | |
| 14 | 15413-93400 Fuel Strainer Cup (NLA)
SKU: 15413-93400 Weight: 0.060000 Brand: Price: $ 5.82 |
Fuel Strainer Cup (NLA) | 1 | $ 5.82 | ||
| 14B | 15415-93400 Fuel Strainer O-Ring
SKU: 15415-93400 Weight: 0.060000 Brand: Price: $ 2.18 |
Fuel Strainer O-Ring | 1 | $ 2.18 | ||
| 15 | 08322-01087 Washer
SKU: 08322-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 1 | $ 1.85 | ||
| 16 | 08310-00087 Nut (8mm)
SKU: 08310-00087 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut (8mm) | 1 | $ 1.85 | ||
| 17 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->250 | |
| 18 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 6 | $ 1.78 | 1991 to 1994 | |
| 19 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | L:450->65 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
