Suzuki DT 30C Parts Listings 1988 to 1997

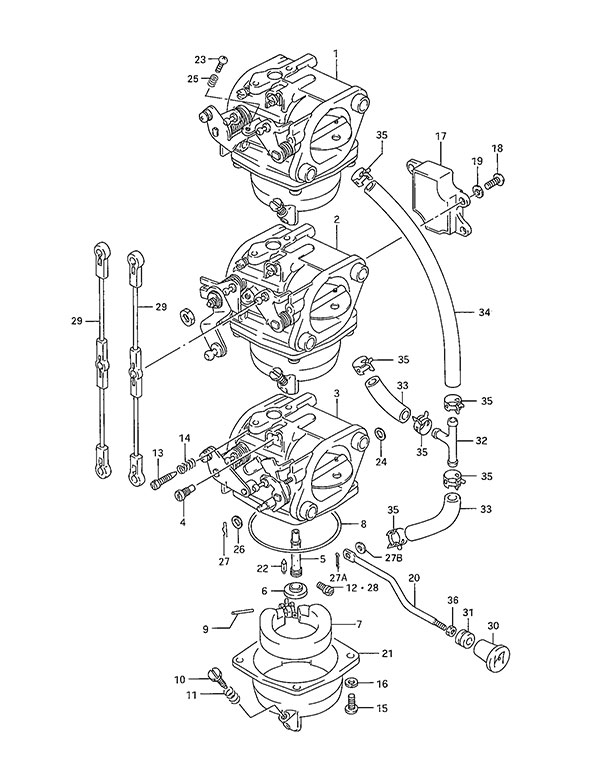

Fig. 5 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 13201-95D30 Top Carburetor Assembly (NLA)
SKU: 13201-95D30 Weight: 0.100000 Brand: Price: $ 208.96 |
Top Carburetor Assembly (NLA) | 1 | $ 208.96 | 1988 to 1989 | |
| 1-2 | 13201-95D81 Top Carburetor Assembly (NLA)
SKU: 13201-95D81 Weight: 1.010000 Brand: Price: $ 434.29 |
Top Carburetor Assembly (NLA) | 1 | $ 434.29 | 1990 to 1997 | |
| 2-1 | 13202-95D30 2nd Carburetor Assembly (NLA)
SKU: 13202-95D30 Weight: 0.100000 Brand: Price: $ 328.13 |
2nd Carburetor Assembly (NLA) | 1 | $ 328.13 | 1989 to 1989 | |
| 2-2 | 13202-95D81 2nd Carburetor Assembly (NLA)
SKU: 13202-95D81 Weight: 1.010000 Brand: Price: $ 532.69 |
2nd Carburetor Assembly (NLA) | 1 | $ 532.69 | 1990 to 1997 | |
| 3-1 | 13203-95D30 3rd Carburetor Assembly (NLA)
SKU: 13203-95D30 Weight: 0.100000 Brand: Price: $ 225.76 |
3rd Carburetor Assembly (NLA) | 1 | $ 225.76 | 1988 to 1989 | |
| 3-2 | 13203-95D83 3rd Carburetor Assembly
SKU: 13203-95D83 Weight: 1.010000 Brand: Price: $ 481.36 |
3rd Carburetor Assembly | 1 | $ 481.36 | 1990 to 1997 | |
| 4-1 | 09492-70001 Pilot Jet #70
SKU: 09492-70001 Weight: 0.060000 Brand: Price: $ 6.74 |
Pilot Jet #70 | 3 | $ 6.74 | 1988 to 1989 | |
| 4-2 | 09492-62001 Pilot Jet# 62.5
SKU: 09492-62001 Weight: 0.060000 Brand: Price: $ 12.10 |
Pilot Jet# 62.5 | 3 | $ 12.10 | 1990 to 1997 | |
| 5 | 13235-95D20 Main Nozzle
SKU: 13235-95D20 Weight: 0.060000 Brand: Price: $ 23.38 |
Main Nozzle | 3 | $ 23.38 | ||
| 6 | 13239-95D00 Main Nozzle Cap
SKU: 13239-95D00 Weight: 0.060000 Brand: Price: $ 4.89 |
Main Nozzle Cap | 3 | $ 4.89 | ||
| 7 | 13250-95D01 Carburetor Float
SKU: 13250-95D01 Weight: 0.060000 Brand: Price: $ 28.86 |
Carburetor Float | 3 | $ 28.86 | ||
| 8 | 13251-95D00 Float Chamber Gasket
SKU: 13251-95D00 Weight: 0.060000 Brand: Price: $ 8.02 |
Float Chamber Gasket | 3 | $ 8.02 | ||
| 9 | 13254-98300 Float Pin
SKU: 13254-98300 Weight: 0.060000 Brand: Price: $ 3.28 |
Float Pin | 3 | $ 3.28 | ||
| 10 | 13616-93900 Adjuster
SKU: 13616-93900 Weight: 0.060000 Brand: Price: $ 12.43 |
Adjuster | 3 | $ 12.43 | ||
| 11 | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 4.61 |
Spring | 3 | $ 4.61 | ||
| 12-1 | 09491-26016 Main Jet #130
SKU: 09491-26016 Weight: 0.060000 Brand: Price: $ 15.28 |
Main Jet #130 | 3 | $ 15.28 | 1989 to 1989 | |
| 12-2 | 09491-25014 Main Jet #125
SKU: 09491-25014 Weight: 0.060000 Brand: Price: $ 15.07 |
Main Jet #125 | 3 | $ 15.07 | 1990 to 1991 | |
| 12-3 | 09491-24026 Main Jet #120
SKU: 09491-24026 Weight: 0.060000 Brand: Price: $ 15.58 |
Main Jet #120 | 3 | $ 15.58 | 1992 to 1997 | |
| 13-1 | 13279-90000 Adjuster
SKU: 13279-90000 Weight: 0.060000 Brand: Price: $ 6.36 |
Adjuster | 3 | $ 6.36 | 1988 to 1989 | |
| 13-2 | 13269-98100 Pilot Air Screw
SKU: 13269-98100 Weight: 0.060000 Brand: Price: $ 6.87 |
Pilot Air Screw | 3 | $ 6.87 | 1990 to 1997 | |
| 14 | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 4.61 |
Spring | 3 | $ 4.61 | ||
| 15 | 02112-05127 SCREW
SKU: 02112-05127 Weight: 0.060000 Brand: Price: $ 1.97 |
SCREW | 4 | $ 1.97 | ||
| 16 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 4 | $ 1.85 | ||
| 17 | 37810-95D05 Throttle Valve Sensor Assembly (NLA)
SKU: 37810-95D05 Weight: 0.140000 Brand: Price: $ 161.39 |
Throttle Valve Sensor Assembly (NLA) | 1 | $ 161.39 | Carb #2 | |
| 18 | 02112-04107 SCREW
SKU: 02112-04107 Weight: 0.060000 Brand: Price: $ 1.57 |
SCREW | 3 | $ 1.57 | ||
| 19 | 08321-0104A Lock Washer
SKU: 08321-0104A Weight: 0.200000 Brand: Price: $ 1.85 |
Lock Washer | 3 | $ 1.85 | ||
| 20-1 | 13413-95D00 Choke Rod (NLA)
SKU: 13413-95D00 Weight: 0.100000 Brand: Price: $ 38.08 |
Choke Rod (NLA) | 1 | $ 38.08 | ||
| 20-2 | 13413-95D10 Choke Rod (NLA)
SKU: 13413-95D10 Weight: 0.060000 Brand: Price: $ 28.96 |
Choke Rod (NLA) | 1 | $ 28.96 | S/N 751139 Newer | |
| 21 | 13245-95D00 Float Chamber
SKU: 13245-95D00 Weight: 0.250000 Brand: Price: $ 52.30 |
Float Chamber | 3 | $ 52.30 | ||
| 22-1 | 13371-95D00 Needle Valve (NLA)
SKU: 13371-95D00 Weight: 0.060000 Brand: Price: $ 22.21 |
Needle Valve (NLA) | 3 | $ 22.21 | 1988 to 1990 | |
| 22-2 | 13370-95D00 Needle Valve
SKU: 13370-95D00 Weight: 0.060000 Brand: Price: $ 46.53 |
Needle Valve | 3 | $ 46.53 | 1991 to 1997 | |
| 23 | 13534-95D00 Screw
SKU: 13534-95D00 Weight: 0.060000 Brand: Price: $ 3.71 |
Screw | 1 | $ 3.71 | ||
| 24 | 13589-95210 Washer
SKU: 13589-95210 Weight: 0.100000 Brand: Price: $ 3.47 |
Washer | 1 | $ 3.47 | ||
| 25 | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 4.61 |
Spring | 1 | $ 4.61 | ||
| 26 | 13432-33110 Washer
SKU: 13432-33110 Weight: 0.060000 Brand: Price: $ 3.98 |
Washer | 1 | $ 3.98 | ||
| 27 | 13464-96350 Spring Pin
SKU: 13464-96350 Weight: 0.060000 Brand: Price: $ 1.52 |
Spring Pin | 1 | $ 1.52 | ||
| 27A | 13591-93100 Pin
SKU: 13591-93100 Weight: 0.060000 Brand: Price: $ 2.29 |
Pin | 1 | $ 2.29 | S/N 751139 Newer | |
| 27B | 13445-14A00 Washer
SKU: 13445-14A00 Weight: 0.060000 Brand: Price: $ 2.97 |
Washer | 1 | $ 2.97 | S/N 751139 Newer | |
| 28-1 | 09491-26016 Main Jet #130
SKU: 09491-26016 Weight: 0.060000 Brand: Price: $ 15.28 |
Main Jet #130 | 1 | $ 15.28 | Optional | |
| 28-2 | 09491-24026 Main Jet #120
SKU: 09491-24026 Weight: 0.060000 Brand: Price: $ 15.58 |
Main Jet #120 | 1 | $ 15.58 | Optional | |
| 28-3 | 09491-23012 Main Jet #115
SKU: 09491-23012 Weight: 0.060000 Brand: Price: $ 10.23 |
Main Jet #115 | 1 | $ 10.23 | Optional | |
| 29 | 13510-95D00 Throttle Rod Assembly (NLA)
SKU: 13510-95D00 Weight: 0.200000 Brand: Price: $ 16.03 |
Throttle Rod Assembly (NLA) | 2 | $ 16.03 | ||
| 30 | 13631-93501 Starter Knob
SKU: 13631-93501 Weight: 0.060000 Brand: Price: $ 4.52 |
Starter Knob | 1 | $ 4.52 | ||
| 31 | 09320-04013 Bushing
SKU: 09320-04013 Weight: 0.060000 Brand: Price: $ 1.60 |
Bushing | 1 | $ 1.60 | ||
| 32 | 09367-06002 3 Way
SKU: 09367-06002 Weight: 0.060000 Brand: Price: $ 2.65 |
3 Way | 1 | $ 2.65 | ||
| 33 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 2 | $ 7.60 | Carb to 3 Way L:600->40 | |
| 34 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | 3 Way to Carb L:600->140 | |
| 35 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 6 | $ 1.78 | ||
| 36 | 09140-04007 Nut
SKU: 09140-04007 Weight: 0.060000 Brand: Price: $ 2.28 |
Nut | 1 | $ 2.28 | ||
| 37 | 13910-95D00 Carburetor Repair Kit
SKU: 13910-95D00 Weight: 0.060000 Brand: Price: $ 54.73 |
Carburetor Repair Kit | 3 | $ 54.73 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
