Suzuki DT 30C Parts Listings 1988 to 1994

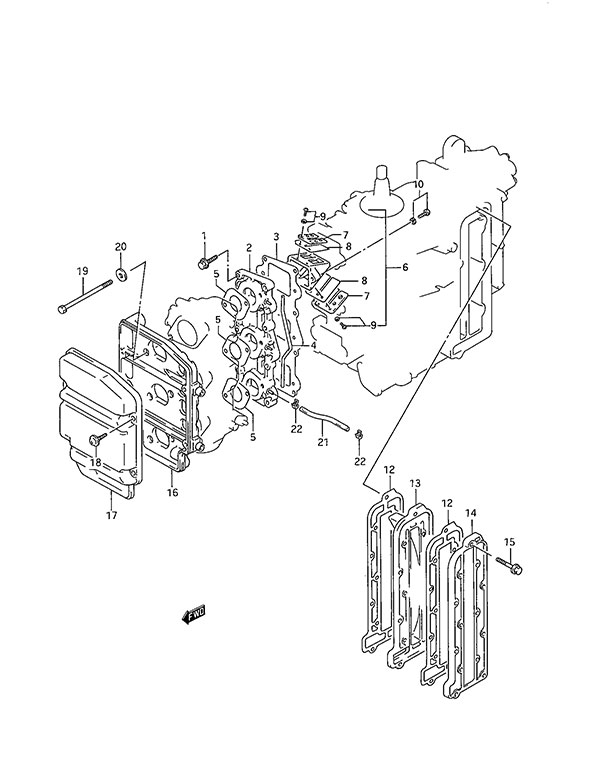

Fig. 4 - Inlet Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 10 | $ 2.33 | ||
| 2-1 | 13110-95D01-0ED Inlet Case (NLA)
SKU: 13110-95D01-0ED Weight: 0.100000 Brand: Price: $ 37.06 |
Inlet Case (NLA) | 1 | $ 37.06 | 1988 to 1989 | |
| 2-2 | 13110-95D60-0ED Inlet Case (NLA)
SKU: 13110-95D60-0ED Weight: 0.100000 Brand: Price: $ 47.62 |
Inlet Case (NLA) | 1 | $ 47.62 | 1990 to 1994 | |
| 3 | 13121-95D01 Inlet Case Gasket (NLA)
SKU: 13121-95D01 Weight: 0.120000 Brand: Price: $ 13.01 |
Inlet Case Gasket (NLA) | 1 | $ 13.01 | ||
| 4 | 09280-00001 O-Ring
SKU: 09280-00001 Weight: 0.100000 Brand: Price: $ 3.35 |
O-Ring | 1 | $ 3.35 | ||
| 5-1 | 13125-95D20 Carburetor Gasket
SKU: 13125-95D20 Weight: 0.060000 Brand: Price: $ 4.77 |
Carburetor Gasket | 3 | $ 4.77 | 1988 to 1993 | |
| 5-2 | 13125-95D30 Carburetor Gasket
SKU: 13125-95D30 Weight: 0.060000 Brand: Price: $ 4.18 |
Carburetor Gasket | 3 | $ 4.18 | 1994 | |
| 6 | 13150-95D00 Reed Valve Assembly (NLA)
SKU: 13150-95D00 Weight: 0.500000 Brand: Price: $ 91.27 |
Reed Valve Assembly (NLA) | 3 | $ 91.27 | ||
| 7 | 13152-95D00 Reed Valve Stopper (NLA)
SKU: 13152-95D00 Weight: 0.100000 Brand: Price: $ 4.50 |
Reed Valve Stopper (NLA) | 6 | $ 4.50 | ||
| 8 | 13153-95D00 Reed Valve (NLA)
SKU: 13153-95D00 Weight: 0.060000 Brand: Price: $ 10.30 |
Reed Valve (NLA) | 6 | $ 10.30 | ||
| 9 | 02112-3306A SCREW
SKU: 02112-3306A Weight: 0.200000 Brand: Price: $ 1.99 |
SCREW | 12 | $ 1.99 | ||
| 10 | 02112-3520B SCREW
SKU: 02112-3520B Weight: 0.200000 Brand: Price: $ 2.52 |
SCREW | 6 | $ 2.52 | ||
| 12 | 14151-95D10 Exhaust Cover Gasket
SKU: 14151-95D10 Weight: 0.060000 Brand: Price: $ 13.62 |
Exhaust Cover Gasket | 2 | $ 13.62 | ||
| 13 | 14131-95D00 Exhaust Plate (NLA)
SKU: 14131-95D00 Weight: 0.500000 Brand: Price: $ 31.85 |
Exhaust Plate (NLA) | 1 | $ 31.85 | ||
| 14 | 14141-95D00-0ED Exhaust Cover (NLA)
SKU: 14141-95D00-0ED Weight: 0.500000 Brand: Price: $ 53.18 |
Exhaust Cover (NLA) | 1 | $ 53.18 | ||
| 15 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 13 | $ 2.74 | ||
| 16 | 13811-95D01 Silencer Case (NLA)
SKU: 13811-95D01 Weight: 0.100000 Brand: Price: $ 18.56 |
Silencer Case (NLA) | 1 | $ 18.56 | ||
| 17 | 13812-95D00 NLA
SKU: 13812-95D00 Weight: 0.400000 Brand: Price: $ 21.35 |
NLA | 1 | $ 21.35 | ||
| 18 | 03541-0616A SCREW
SKU: 03541-0616A Weight: 0.100000 Brand: Price: $ 1.82 |
SCREW | 4 | $ 1.82 | ||
| 19 | 01500-06907 BOLT
SKU: 01500-06907 Weight: 0.060000 Brand: Price: $ 3.61 |
BOLT | 6 | $ 3.61 | ||
| 20 | 09160-06066 Washer (6.5x20x1.6)
SKU: 09160-06066 Weight: 0.250000 Brand: Price: $ 1.91 |
Washer (6.5x20x1.6) | 6 | $ 1.91 | ||
| 21 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 3 | $ 6.08 | L:600->70 | |
| 22 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 6 | $ 2.12 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
