Suzuki DT 30C Parts Listings 1988 to 1997

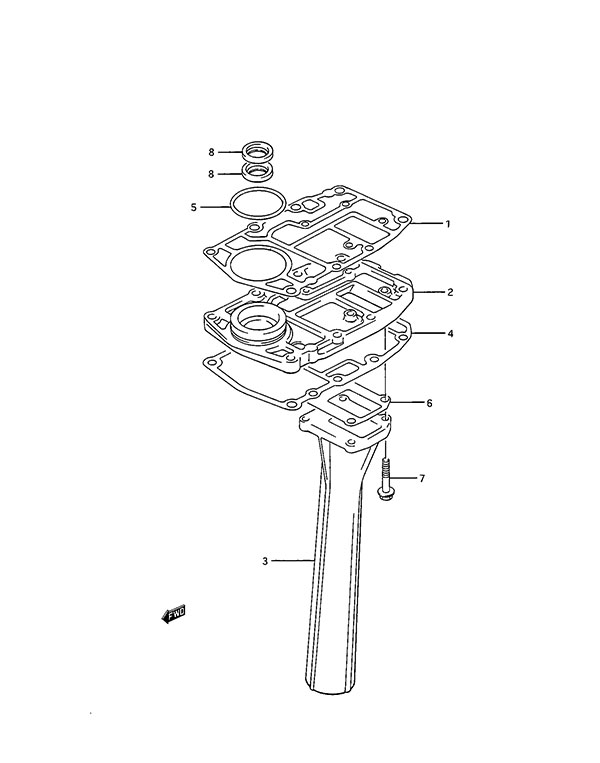

Fig. 3 - Exhaust Tube
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11433-95D11 Under Oil Seal Hsg Gasket
SKU: 11433-95D11 Weight: 0.250000 Brand: Price: $ 10.89 |
Under Oil Seal Hsg Gasket | 1 | $ 10.89 | ||
| 2 | 11431-95D20 Under Oil Seal Housing
SKU: 11431-95D20 Weight: 0.100000 Brand: Price: $ 87.47 |
Under Oil Seal Housing | 1 | $ 87.47 | ||
| 3-1 | 14211-95D20 Exhaust Tube (NLA)
SKU: 14211-95D20 Weight: 0.100000 Brand: Price: $ 56.01 |
Exhaust Tube (NLA) | 1 | $ 56.01 | 1988 | |
| 3-2 | 14211-95D01 Exhaust Tube (NLA)
SKU: 14211-95D01 Weight: 0.100000 Brand: Price: $ 47.73 |
Exhaust Tube (NLA) | 1 | $ 47.73 | 1989 to 1990 | |
| 3-3 | 14211-95D30 Exhaust Tube (NLA)
SKU: 14211-95D30 Weight: 0.100000 Brand: Price: $ 56.43 |
Exhaust Tube (NLA) | 1 | $ 56.43 | 1991 to 1997 | |
| 4 | 11434-95D10 Oil Seal Housing Gasket
SKU: 11434-95D10 Weight: 0.250000 Brand: Price: $ 14.95 |
Oil Seal Housing Gasket | 1 | $ 14.95 | ||
| 5 | 09280-46003 O-Ring (NLA)
SKU: 09280-46003 Weight: 0.060000 Brand: Price: $ 3.19 |
O-Ring (NLA) | 1 | $ 3.19 | ||
| 6 | 14215-95D10 Exhaust Tube Gasket (NLA)
SKU: 14215-95D10 Weight: 0.060000 Brand: Price: $ 4.53 |
Exhaust Tube Gasket (NLA) | 1 | $ 4.53 | ||
| 7 | 29103-94400 Bolt (6x35)
SKU: 29103-94400 Weight: 0.125000 Brand: Price: $ 2.55 |
Bolt (6x35) | 4 | $ 2.55 | ||
| 8 | 09282-17009 Oil Seal (17x28x6)
SKU: 09282-17009 Weight: 0.060000 Brand: Price: $ 10.20 |
Oil Seal (17x28x6) | 2 | $ 10.20 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
