Suzuki DT 30C Parts Listings 1988 to 1997

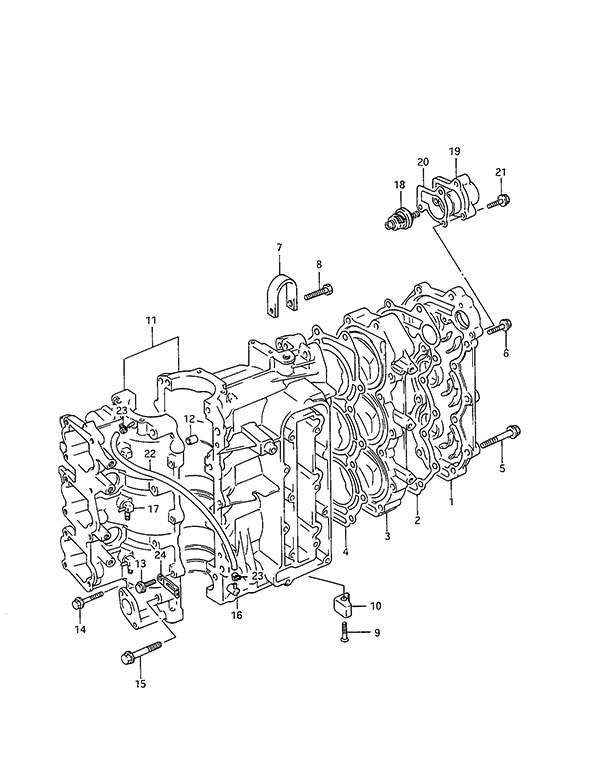

Fig. 1 - Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 11161-95D10-0ED Cylinder Head Cover (NLA)
SKU: 11161-95D10-0ED Weight: 1.400000 Brand: Price: $ 108.80 |
Cylinder Head Cover (NLA) | 1 | $ 108.80 | 1988 to 1989 Requires Ref# 2 3-2 | |
| 1-2 | 11161-95D10-0ED Cylinder Head Cover (NLA)
SKU: 11161-95D10-0ED Weight: 1.400000 Brand: Price: $ 108.80 |
Cylinder Head Cover (NLA) | 1 | $ 108.80 | 1990 to 1997 | |
| 2 | 11162-95D20 Cylinder Head Cover Gasket
SKU: 11162-95D20 Weight: 0.250000 Brand: Price: $ 23.29 |
Cylinder Head Cover Gasket | 1 | $ 23.29 | ||
| 3-1 | 11111-95D02-0ED Cylinder Head (NLA)
SKU: 11111-95D02-0ED Weight: 10.000000 Brand: Price: $ 144.29 |
Cylinder Head (NLA) | 1 | $ 144.29 | 1988 to 1989 | |
| 3-2 | 11111-95D20-0ED Cylinder Head (NLA)
SKU: 11111-95D20-0ED Weight: 3.000000 Brand: Price: $ 214.46 |
Cylinder Head (NLA) | 1 | $ 214.46 | 1990 to 1997 | |
| 4 | 11141-95D40 Cylinder Head Gasket
SKU: 11141-95D40 Weight: 0.180000 Brand: Price: $ 38.77 |
Cylinder Head Gasket | 1 | $ 38.77 | ||
| 5 | 01560-08607 BOLT
SKU: 01560-08607 Weight: 0.060000 Brand: Price: $ 3.98 |
BOLT | 14 | $ 3.98 | ||
| 6 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 7 | 11291-94402 Engine Hook (NLA)
SKU: 11291-94402 Weight: 0.100000 Brand: Price: $ 2.44 |
Engine Hook (NLA) | 1 | $ 2.44 | ||
| 8 | 01550-08357 BOLT
SKU: 01550-08357 Weight: 0.060000 Brand: Price: $ 3.54 |
BOLT | 1 | $ 3.54 | ||
| 9 | 09126-06005 Screw (6x30)
SKU: 09126-06005 Weight: 0.060000 Brand: Price: $ 2.12 |
Screw (6x30) | 1 | $ 2.12 | ||
| 10 | 11281-94400 Zinc Anode
SKU: 11281-94400 Weight: 0.100000 Brand: Price: $ 3.13 |
Zinc Anode | 1 | $ 3.13 | ||
| 11-1 | 11301-95D12-0ED Cylinder Assembly (NLA)
SKU: 11301-95D12-0ED Weight: 50.000000 Brand: Price: $ 1,084.06 |
Cylinder Assembly (NLA) | 1 | $ 1,084.06 | 1988 to 1994 | |
| 11-2 | 11301-95D20-0ED Cylinder Assembly (NLA)
SKU: 11301-95D20-0ED Weight: 0.100000 Brand: Price: $ 628.67 |
Cylinder Assembly (NLA) | 1 | $ 628.67 | 1995 to 1996 | |
| 11-3 | 11301-95D40-0ED Cylinder Assembly (NLA)
SKU: 11301-95D40-0ED Weight: 50.000000 Brand: Price: $ 1,283.42 |
Cylinder Assembly (NLA) | 1 | $ 1,283.42 | 1997 | |
| 12 | 04211-09109 DOWEL PIN
SKU: 04211-09109 Weight: 0.060000 Brand: Price: $ 1.66 |
DOWEL PIN | 2 | $ 1.66 | ||
| 13 | 02162-06257 SCREW
SKU: 02162-06257 Weight: 0.060000 Brand: Price: $ 1.49 |
SCREW | 6 | $ 1.49 | ||
| 14 | 01550-06407 BOLT
SKU: 01550-06407 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | ||
| 15 | 01550-08457 BOLT
SKU: 01550-08457 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT | 8 | $ 3.48 | ||
| 16 | 16710-95D10 Oil Check Valve
SKU: 16710-95D10 Weight: 0.125000 Brand: Price: $ 18.94 |
Oil Check Valve | 1 | $ 18.94 | ||
| 17 | 16710-94420 Oil Check Valve (NLA)
SKU: 16710-94420 Weight: 0.100000 Brand: Price: $ 15.27 |
Oil Check Valve (NLA) | 3 | $ 15.27 | 1988 to 1994 | |
| 18 | 17670-92D11 Thermostat 50c
SKU: 17670-92D11 Weight: 0.080000 Brand: Price: $ 47.84 |
Thermostat 50c | 1 | $ 47.84 | ||
| 19 | 17681-95D03-0ED Thermostat Cover (NLA)
SKU: 17681-95D03-0ED Weight: 0.100000 Brand: Price: $ 22.12 |
Thermostat Cover (NLA) | 1 | $ 22.12 | ||
| 20 | 17685-95D10 Thermostat Cover Gasket
SKU: 17685-95D10 Weight: 0.060000 Brand: Price: $ 4.19 |
Thermostat Cover Gasket | 1 | $ 4.19 | ||
| 21 | 01560-06257 BOLT
SKU: 01560-06257 Weight: 0.060000 Brand: Price: $ 2.62 |
BOLT | 3 | $ 2.62 | ||
| 22 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | L:600->330 | |
| 23 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 2 | $ 2.12 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
