Suzuki DT 25C Parts Listings 1989 to 2000

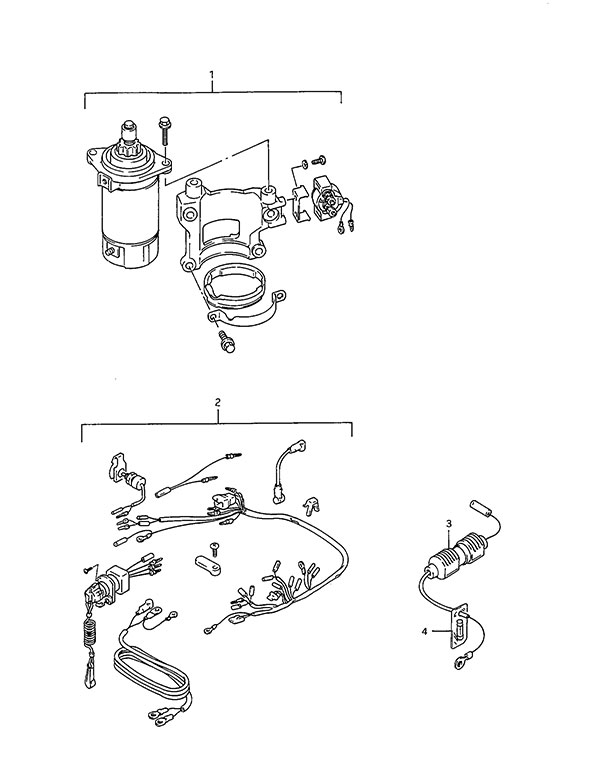

Fig. 34 - Opt: Electrical (Manual Starter 1)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31101-95D20 Starter Motor Set (NLA)
SKU: 31101-95D20 Weight: 0.100000 Brand: Price: $ 516.03 |
Starter Motor Set (NLA) | 1 | $ 516.03 | ||
| 2 | 33800-95D01 Starter Cable/Switch Set (NLA)
SKU: 33800-95D01 Weight: 0.100000 Brand: Price: $ 208.96 |
Starter Cable/Switch Set (NLA) | 1 | $ 208.96 | 1989 to 1990 | |
| 3 | 36740-93901 Fuse Case Assembly
SKU: 36740-93901 Weight: 0.100000 Brand: Price: $ 18.47 |
Fuse Case Assembly | 1 | $ 18.47 | ||
| 4 | 09481-20001 20 Amp Fuse
SKU: 09481-20001 Weight: 0.060000 Brand: Price: $ 2.54 |
20 Amp Fuse | 1 | $ 2.54 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
