Suzuki DT 25C Parts Listings 1994 to 2000

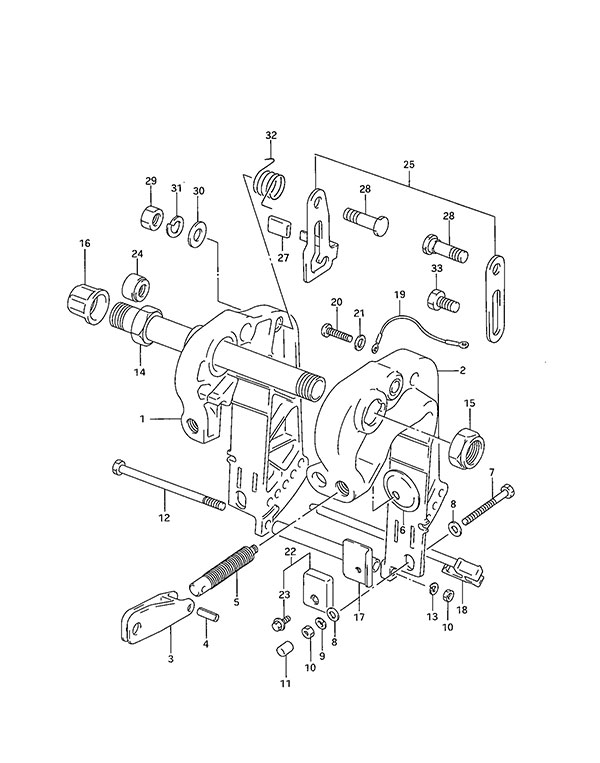

Fig. 18A- Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41111-95D90-0ED Starboard Clamp Bracket (NLA)
SKU: 41111-95D90-0ED Weight: 3.000000 Brand: Price: $ 183.40 |
Starboard Clamp Bracket (NLA) | 1 | $ 183.40 | ||
| 2 | 41121-95D12-0ED Port Clamp Bracket (NLA)
SKU: 41121-95D12-0ED Weight: 2.500000 Brand: Price: $ 194.96 |
Port Clamp Bracket (NLA) | 1 | $ 194.96 | ||
| 3 | 41212-93001-0ED Clamp Handle (NLA)
SKU: 41212-93001-0ED Weight: 0.120000 Brand: Price: $ 28.71 |
Clamp Handle (NLA) | 2 | $ 28.71 | ||
| 4 | 09205-06007 Spring Pin (6x25)
SKU: 09205-06007 Weight: 0.080000 Brand: Price: $ 2.28 |
Spring Pin (6x25) | 2 | $ 2.28 | ||
| 5-1 | 41211-93920 Clamp Screw (L:90)
SKU: 41211-93920 Weight: 0.180000 Brand: Price: $ 18.47 |
Clamp Screw (L:90) | 2 | $ 18.47 | ||
| 5-2 | 41211-93900 Clamp Screw (L:68) (NLA)
SKU: 41211-93900 Weight: 0.100000 Brand: Price: $ 9.60 |
Clamp Screw (L:68) (NLA) | 2 | $ 9.60 | Optional | |
| 6 | 41213-94J01 Clamp Plate
SKU: 41213-94J01 Weight: 0.060000 Brand: Price: $ 3.70 |
Clamp Plate | 2 | $ 3.70 | ||
| 7 | 09100-08239 Bolt (8x90)
SKU: 09100-08239 Weight: 0.080000 Brand: Price: $ 3.33 |
Bolt (8x90) | 2 | $ 3.33 | ||
| 8 | 09160-08081 Washer (8.5x23x1.5)
SKU: 09160-08081 Weight: 0.060000 Brand: Price: $ 2.68 |
Washer (8.5x23x1.5) | 4 | $ 2.68 | ||
| 9 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 | ||
| 10 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 3 | $ 2.52 | ||
| 11 | 41153-96300 Transom Bolt Cap (NLA)
SKU: 41153-96300 Weight: 0.100000 Brand: Price: $ 2.23 |
Transom Bolt Cap (NLA) | 2 | $ 2.23 | ||
| 12 | 09100-08295 Bolt (8x165) (NLA)
SKU: 09100-08295 Weight: 0.100000 Brand: Price: $ 4.40 |
Bolt (8x165) (NLA) | 1 | $ 4.40 | ||
| 13 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 1 | $ 1.49 | ||
| 14 | 41130-91L01 Clamp Bracket Shaft
SKU: 41130-91L01 Weight: 2.000000 Brand: Price: $ 165.37 |
Clamp Bracket Shaft | 1 | $ 165.37 | ||
| 15 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 16 | 41151-94500 Clamp Bracket Shaft Cap
SKU: 41151-94500 Weight: 0.060000 Brand: Price: $ 2.85 |
Clamp Bracket Shaft Cap | 2 | $ 2.85 | ||
| 17 | 41310-96310 Clamp Bracket Lower Rod
SKU: 41310-96310 Weight: 0.100000 Brand: Price: $ 18.63 |
Clamp Bracket Lower Rod | 1 | $ 18.63 | ||
| 18 | 45420-95D04 Tilt Lock Pin
SKU: 45420-95D04 Weight: 0.240000 Brand: Price: $ 28.32 |
Tilt Lock Pin | 1 | $ 28.32 | ||
| 19 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | ||
| 20 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 | ||
| 21 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 2 | $ 2.90 | ||
| 22 | 55320-95311 Zinc Anode
SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 1 | $ 8.74 | ||
| 23 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | ||
| 24 | 41161-94400 Steering Cable Seal
SKU: 41161-94400 Weight: 0.060000 Brand: Price: $ 12.60 |
Steering Cable Seal | 1 | $ 12.60 | Optional | |
| 25 | 41200-91L00 Tilt Arm Assembly
SKU: 41200-91L00 Weight: 0.500000 Brand: Price: $ 27.97 |
Tilt Arm Assembly | 1 | $ 27.97 | ||
| 27 | 41225-94400 Tilt Lock Arm Rubber
SKU: 41225-94400 Weight: 0.060000 Brand: Price: $ 2.88 |
Tilt Lock Arm Rubber | 1 | $ 2.88 | ||
| 28 | 09111-10068 Bolt (10x48.5)
SKU: 09111-10068 Weight: 0.200000 Brand: Price: $ 16.38 |
Bolt (10x48.5) | 2 | $ 16.38 | ||
| 29 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 2 | $ 2.04 | ||
| 30 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 31 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 2 | $ 1.86 | ||
| 32 | 09448-29015 Spring
SKU: 09448-29015 Weight: 0.060000 Brand: Price: $ 4.20 |
Spring | 1 | $ 4.20 | ||
| 33 | 09111-10067 Bolt (10x20.4)
SKU: 09111-10067 Weight: 0.060000 Brand: Price: $ 6.13 |
Bolt (10x20.4) | 2 | $ 6.13 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
