Suzuki DT 25C Parts Listings 1989 to 2000

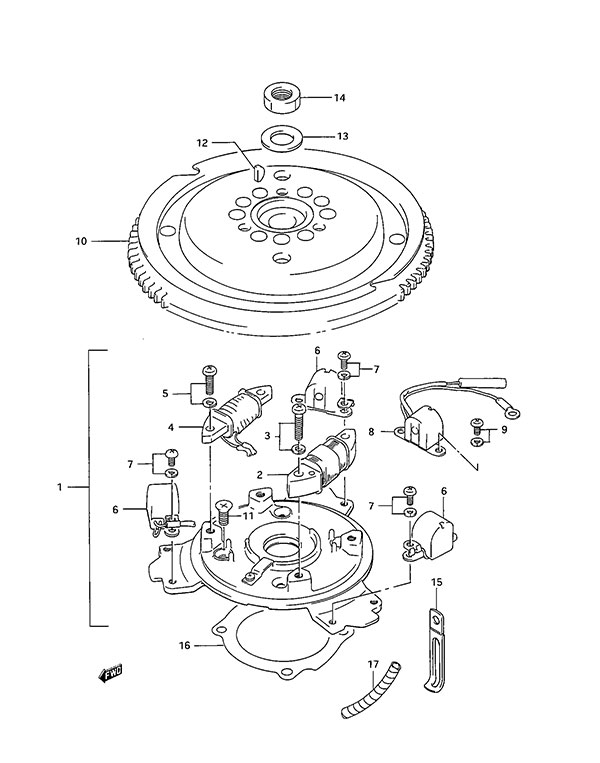

Fig. 14 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 32101-95D11 Stator Assembly (NLA)
SKU: 32101-95D11 Weight: 5.000000 Brand: Price: $ 537.16 |
Stator Assembly (NLA) | 1 | $ 537.16 | ||
| 1-2 | 32101-95D30 Stator Assembly (NLA)
SKU: 32101-95D30 Weight: 5.000000 Brand: Price: $ 426.32 |
Stator Assembly (NLA) | 1 | $ 426.32 | 1994 to 2000 | |
| 2-1 | 32120-95D00 Lighting Coil (NLA)
SKU: 32120-95D00 Weight: 0.100000 Brand: Price: $ 57.21 |
Lighting Coil (NLA) | 1 | $ 57.21 | Electric Starter | |
| 2-2 | 32120-95D20 Lighting Coil (NLA)
SKU: 32120-95D20 Weight: 0.200000 Brand: Price: $ 85.67 |
Lighting Coil (NLA) | 1 | $ 85.67 | Electric Starter 1994 to 2000 | |
| 2-3 | 32120-95D10 Lighting Coil (NLA)
SKU: 32120-95D10 Weight: 0.100000 Brand: Price: $ 58.24 |
Lighting Coil (NLA) | 1 | $ 58.24 | Manual Starter | |
| 2-4 | 32120-95D30 Lighting Coil (NLA)
SKU: 32120-95D30 Weight: 0.100000 Brand: Price: $ 86.94 |
Lighting Coil (NLA) | 1 | $ 86.94 | Manual Starter 1994 to 20000 | |
| 3 | 02112-36257 SCREW
SKU: 02112-36257 Weight: 0.060000 Brand: Price: $ 2.72 |
SCREW | 2 | $ 2.72 | ||
| 4-1 | 32140-95D00 Ignition Coil (NLA)
SKU: 32140-95D00 Weight: 0.250000 Brand: Price: $ 91.96 |
Ignition Coil (NLA) | 1 | $ 91.96 | ||
| 4-2 | 32140-95D10 Ignition Coil (NLA)
SKU: 32140-95D10 Weight: 0.250000 Brand: Price: $ 85.82 |
Ignition Coil (NLA) | 1 | $ 85.82 | 1994 to 2000 | |
| 5 | 02112-36257 SCREW
SKU: 02112-36257 Weight: 0.060000 Brand: Price: $ 2.72 |
SCREW | 2 | $ 2.72 | ||
| 6 | 32160-87D11 Ignition Timing Coil
SKU: 32160-87D11 Weight: 0.250000 Brand: Price: $ 141.09 |
Ignition Timing Coil | 3 | $ 141.09 | ||
| 7 | 02112-3510B SCREW
SKU: 02112-3510B Weight: 0.200000 Brand: Price: $ 2.25 |
SCREW | 6 | $ 2.25 | ||
| 8-1 | 32150-95D00 Gear Counting Coil (NLA)
SKU: 32150-95D00 Weight: 0.100000 Brand: Price: $ 87.36 |
Gear Counting Coil (NLA) | 1 | $ 87.36 | 1989 | |
| 8-2 | 32150-87E20 Gear Counter Coil (NLA)
SKU: 32150-87E20 Weight: 0.200000 Brand: Price: $ 140.57 |
Gear Counter Coil (NLA) | 1 | $ 140.57 | 1990 to 2000 | |
| 9 | 02112-35127 SCREW 5X12
SKU: 02112-35127 Weight: 0.060000 Brand: Price: $ 1.54 |
SCREW 5X12 | 2 | $ 1.54 | ||
| 10-1 | 32102-95D00 Flywheel (NLA)
SKU: 32102-95D00 Weight: 0.100000 Brand: Price: $ 490.46 |
Flywheel (NLA) | 1 | $ 490.46 | ||
| 10-2 | 32102-95D20 Flywheel (NLA)
SKU: 32102-95D20 Weight: 0.100000 Brand: Price: $ 445.24 |
Flywheel (NLA) | 1 | $ 445.24 | 1994 to 2000 | |
| 11-1 | 09126-06008 Screw (6x16)
SKU: 09126-06008 Weight: 0.060000 Brand: Price: $ 2.15 |
Screw (6x16) | 4 | $ 2.15 | ||
| 11-2 | 02122-0616A SCREW
SKU: 02122-0616A Weight: 0.062500 Brand: Price: $ 1.44 |
SCREW | 4 | $ 1.44 | 1994 to 2000 | |
| 12 | 09420-04008 Key
SKU: 09420-04008 Weight: 0.060000 Brand: Price: $ 3.48 |
Key | 1 | $ 3.48 | ||
| 13 | 09160-16026 Washer (16x30x3)
SKU: 09160-16026 Weight: 0.060000 Brand: Price: $ 4.33 |
Washer (16x30x3) | 1 | $ 4.33 | ||
| 14 | 09140-16031 Nut (NLA)
SKU: 09140-16031 Weight: 0.100000 Brand: Price: $ 1.91 |
Nut (NLA) | 1 | $ 1.91 | ||
| 15 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 16 | 11413-95D10 Upper Oil Seal Hsg Gasket
SKU: 11413-95D10 Weight: 0.060000 Brand: Price: $ 4.33 |
Upper Oil Seal Hsg Gasket | 1 | $ 4.33 | ||
| 17-1 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | Manual Starter L:250->100 | |
| 17-2 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | Electric Starter L:250->150 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
