Suzuki DT 25C Parts Listings 1995 to 2000

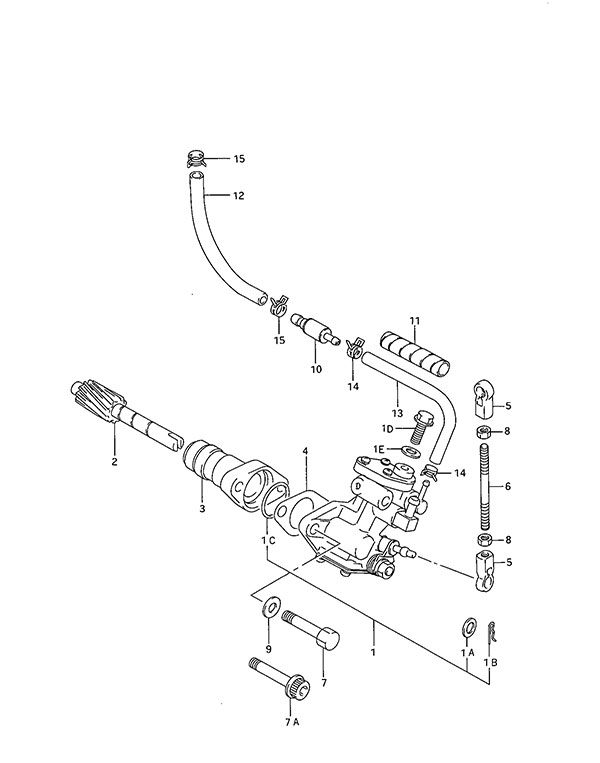

Fig. 8A - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 16100-95D20 Oil Pump Assembly (NLA)
SKU: 16100-95D20 Weight: 0.100000 Brand: Price: $ 254.49 |
Oil Pump Assembly (NLA) | 1 | $ 254.49 | ||
| 1A | 13432-33110 Washer
SKU: 13432-33110 Weight: 0.060000 Brand: Price: $ 3.98 |
Washer | 1 | $ 3.98 | ||
| 1B | 16195-87D00 Snap Pin
SKU: 16195-87D00 Weight: 0.060000 Brand: Price: $ 2.37 |
Snap Pin | 1 | $ 2.37 | ||
| 1C | 16198-87D00 Oil Pump O-Ring
SKU: 16198-87D00 Weight: 0.060000 Brand: Price: $ 1.65 |
Oil Pump O-Ring | 1 | $ 1.65 | ||
| 1D | 16091-94900 Bolt (NLA)
SKU: 16091-94900 Weight: 0.100000 Brand: Price: $ 2.27 |
Bolt (NLA) | 1 | $ 2.27 | ||
| 1E | 16092-92440 Gasket (NLA)
SKU: 16092-92440 Weight: 0.100000 Brand: Price: $ 1.28 |
Gasket (NLA) | 1 | $ 1.28 | ||
| 2 | 16331-95D00 Oil Pump Driven Gear (NLA)
SKU: 16331-95D00 Weight: 0.100000 Brand: Price: $ 31.07 |
Oil Pump Driven Gear (NLA) | 1 | $ 31.07 | ||
| 3 | 16340-95D00 Oil Pump Retainer (NLA)
SKU: 16340-95D00 Weight: 0.100000 Brand: Price: $ 23.56 |
Oil Pump Retainer (NLA) | 1 | $ 23.56 | ||
| 4 | 16731-95520 Oil Pump Retainer Gasket (NLA)
SKU: 16731-95520 Weight: 0.060000 Brand: Price: $ 2.75 |
Oil Pump Retainer Gasket (NLA) | 1 | $ 2.75 | ||
| 5 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 2 | $ 4.52 | ||
| 6 | 19136-94301 Throttle Rod
SKU: 19136-94301 Weight: 0.125000 Brand: Price: $ 6.74 |
Throttle Rod | 1 | $ 6.74 | ||
| 7 | 09119-06067 Bolt (NLA)
SKU: 09119-06067 Weight: 0.100000 Brand: Price: $ 4.25 |
Bolt (NLA) | 2 | $ 4.25 | 1995 | |
| 7A | 07130-06307 BOLT
SKU: 07130-06307 Weight: 0.100000 Brand: Price: $ 3.74 |
BOLT | 2 | $ 3.74 | 1996 to 2000 | |
| 8 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | ||
| 9 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 2 | $ 1.85 | 1995 | |
| 10 | 16710-92E01 Oil Check Valve (Single)
SKU: 16710-92E01 Weight: 0.060000 Brand: Price: $ 19.39 |
Oil Check Valve (Single) | 1 | $ 19.39 | ||
| 11-1 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | L:540->130 | |
| 11-2 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | 1996 to 2000 L:450->80 | |
| 12-1 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Valve to 3 Way L:600->30 | |
| 12-2 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | Valve to 3 Way L:600->40 1998 to 2000 | |
| 13-1 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | Pump to Valve L:600->190 | |
| 13-2 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | Pump to Valve L:600->150 1998 to 2000 | |
| 14 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 2 | $ 2.12 | ||
| 15 | 09401-08409 Clamp
SKU: 09401-08409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 2 | $ 2.02 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
