Suzuki DT 25C Parts Listings 1989 to 2000

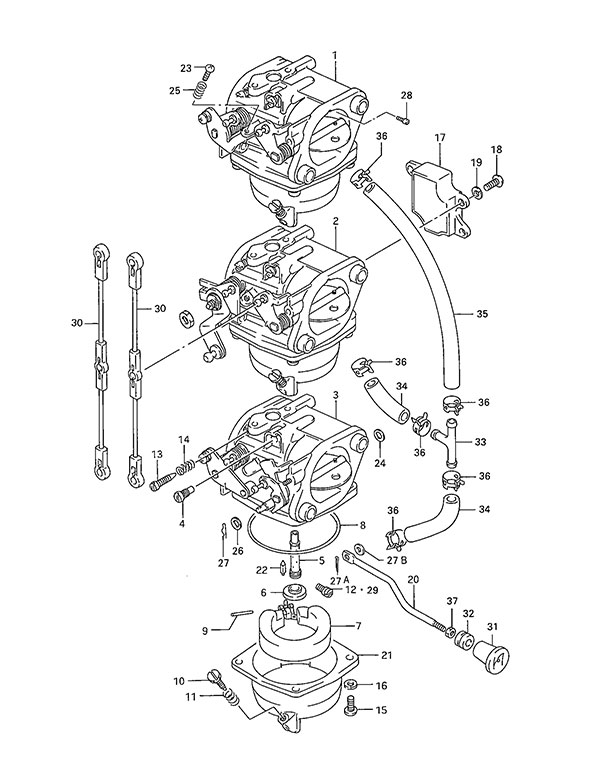

Fig. 6 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 13201-95D71 Top Carburetor Assembly (NLA)
SKU: 13201-95D71 Weight: 0.100000 Brand: Price: $ 165.92 |
Top Carburetor Assembly (NLA) | 1 | $ 165.92 | 1989 to 1990 | |
| 1-2 | 13201-95D91 Top Carburetor Assembly (NLA)
SKU: 13201-95D91 Weight: 1.000000 Brand: Price: $ 340.57 |
Top Carburetor Assembly (NLA) | 1 | $ 340.57 | 1991 to 1997 | |
| 1-3 | 13201-95DA0 Top Carburetor Assembly (NLA)
SKU: 13201-95DA0 Weight: 1.000000 Brand: Price: $ 355.36 |
Top Carburetor Assembly (NLA) | 1 | $ 355.36 | 1998 to 2000 | |
| 2-1 | 13202-95D91 2nd Carburetor Assembly (NLA)
SKU: 13202-95D91 Weight: 1.000000 Brand: Price: $ 479.63 |
2nd Carburetor Assembly (NLA) | 1 | $ 479.63 | 1989-1997 | |
| 2-2 | 13202-95DA0 2nd Carburetor Assembly
SKU: 13202-95DA0 Weight: 1.000000 Brand: Price: $ 660.50 |
2nd Carburetor Assembly | 1 | $ 660.50 | 1998 to 2000 | |
| 3-1 | 13203-95D70 3rd Carburetor Assembly (NLA)
SKU: 13203-95D70 Weight: 0.100000 Brand: Price: $ 178.16 |
3rd Carburetor Assembly (NLA) | 1 | $ 178.16 | 1989 to 1990 | |
| 3-2 | 13203-95D92 3rd Carburetor Assembly (NLA)
SKU: 13203-95D92 Weight: 1.000000 Brand: Price: $ 364.61 |
3rd Carburetor Assembly (NLA) | 1 | $ 364.61 | 1991 to 1997 | |
| 3-3 | 13203-95DA1 3rd Carburetor Assembly (NLA)
SKU: 13203-95DA1 Weight: 1.200000 Brand: Price: $ 479.96 |
3rd Carburetor Assembly (NLA) | 1 | $ 479.96 | 1998 to 2000 | |
| 4-1 | 09492-70008 Pilot Jet #70 (NLA)
SKU: 09492-70008 Weight: 0.100000 Brand: Price: $ 9.73 |
Pilot Jet #70 (NLA) | 3 | $ 9.73 | 1989 | |
| 4-2 | 09492-72004 Pilot Jet #72.5
SKU: 09492-72004 Weight: 0.062500 Brand: Price: $ 16.18 |
Pilot Jet #72.5 | 3 | $ 16.18 | 1990 | |
| 4-3 | 09492-62001 Pilot Jet# 62.5
SKU: 09492-62001 Weight: 0.060000 Brand: Price: $ 12.10 |
Pilot Jet# 62.5 | 3 | $ 12.10 | 1991 to 1997 | |
| 4-4 | 09492-65002 Pilot Jet #65
SKU: 09492-65002 Weight: 0.060000 Brand: Price: $ 13.84 |
Pilot Jet #65 | 1 | $ 13.84 | Carb #1 1998 to 2000 | |
| 4-5 | 09492-95004 Pilot Jet #95 (NLA)
SKU: 09492-95004 Weight: 0.100000 Brand: Price: $ 11.81 |
Pilot Jet #95 (NLA) | 1 | $ 11.81 | Carb #2 1998 to 2000 | |
| 4-6 | 09492-75001 Pilot Jet #75
SKU: 09492-75001 Weight: 0.060000 Brand: Price: $ 10.00 |
Pilot Jet #75 | 1 | $ 10.00 | Carb #3 1998 to 2000 | |
| 5-1 | 13235-95D20 Main Nozzle
SKU: 13235-95D20 Weight: 0.060000 Brand: Price: $ 23.38 |
Main Nozzle | 3 | $ 23.38 | ||
| 5-2 | 13235-95D30 Main Nozzle (NLA)
SKU: 13235-95D30 Weight: 0.100000 Brand: Price: $ 17.30 |
Main Nozzle (NLA) | 1 | $ 17.30 | Carb #1 1998 to 2000 | |
| 5-3 | 13235-95D40 Main Nozzle (NLA)
SKU: 13235-95D40 Weight: 0.100000 Brand: Price: $ 17.30 |
Main Nozzle (NLA) | 1 | $ 17.30 | Carb #2 1998 to 2000 | |
| 5-4 | 13235-95D50 Main Nozzle (NLA)
SKU: 13235-95D50 Weight: 0.100000 Brand: Price: $ 17.30 |
Main Nozzle (NLA) | 1 | $ 17.30 | Carb #3 1998 to 2000 | |
| 6 | 13239-95D00 Main Nozzle Cap
SKU: 13239-95D00 Weight: 0.060000 Brand: Price: $ 4.89 |
Main Nozzle Cap | 3 | $ 4.89 | ||
| 7 | 13250-95D01 Carburetor Float
SKU: 13250-95D01 Weight: 0.060000 Brand: Price: $ 28.86 |
Carburetor Float | 3 | $ 28.86 | ||
| 8 | 13251-95D00 Float Chamber Gasket
SKU: 13251-95D00 Weight: 0.060000 Brand: Price: $ 8.02 |
Float Chamber Gasket | 3 | $ 8.02 | ||
| 9 | 13254-98300 Float Pin
SKU: 13254-98300 Weight: 0.060000 Brand: Price: $ 3.28 |
Float Pin | 3 | $ 3.28 | ||
| 10 | 13616-93900 Adjuster
SKU: 13616-93900 Weight: 0.060000 Brand: Price: $ 12.43 |
Adjuster | 3 | $ 12.43 | ||
| 11 | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 4.61 |
Spring | 3 | $ 4.61 | ||
| 12-1 | 09491-29002 Main Jet #145
SKU: 09491-29002 Weight: 0.060000 Brand: Price: $ 9.70 |
Main Jet #145 | 3 | $ 9.70 | 1989 to 1990 | |
| 12-2 | 09491-24026 Main Jet #120
SKU: 09491-24026 Weight: 0.060000 Brand: Price: $ 15.58 |
Main Jet #120 | 3 | $ 15.58 | 1991 to 1997 | |
| 12-3 | 09491-21023 Main Jet #105
SKU: 09491-21023 Weight: 0.060000 Brand: Price: $ 10.63 |
Main Jet #105 | 1 | $ 10.63 | Carb #1 1998 to 2000 | |
| 12-4 | 09491-20025 Main Jet #102.5
SKU: 09491-20025 Weight: 0.100000 Brand: Price: $ 16.18 |
Main Jet #102.5 | 1 | $ 16.18 | Carb #2 1998 to 2000 | |
| 12-5 | 09491-26016 Main Jet #130
SKU: 09491-26016 Weight: 0.060000 Brand: Price: $ 15.28 |
Main Jet #130 | 1 | $ 15.28 | Carb #3 1998 to 2000 | |
| 13-1 | 13279-90000 Adjuster
SKU: 13279-90000 Weight: 0.060000 Brand: Price: $ 6.36 |
Adjuster | 3 | $ 6.36 | 1989 | |
| 13-2 | 13269-98100 Pilot Air Screw
SKU: 13269-98100 Weight: 0.060000 Brand: Price: $ 6.87 |
Pilot Air Screw | 3 | $ 6.87 | 1990 to 2000 | |
| 14 | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 4.61 |
Spring | 3 | $ 4.61 | ||
| 15 | 02112-05127 SCREW
SKU: 02112-05127 Weight: 0.060000 Brand: Price: $ 1.97 |
SCREW | 4 | $ 1.97 | ||
| 16 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 4 | $ 1.85 | ||
| 17 | 37810-95D05 Throttle Valve Sensor Assembly (NLA)
SKU: 37810-95D05 Weight: 0.140000 Brand: Price: $ 161.39 |
Throttle Valve Sensor Assembly (NLA) | 1 | $ 161.39 | Carb #2 | |
| 18 | 02112-04107 SCREW
SKU: 02112-04107 Weight: 0.060000 Brand: Price: $ 1.57 |
SCREW | 3 | $ 1.57 | ||
| 19 | 08321-0104A Lock Washer
SKU: 08321-0104A Weight: 0.200000 Brand: Price: $ 1.85 |
Lock Washer | 3 | $ 1.85 | ||
| 20-1 | 13413-95D00 Choke Rod (NLA)
SKU: 13413-95D00 Weight: 0.100000 Brand: Price: $ 38.08 |
Choke Rod (NLA) | 1 | $ 38.08 | ||
| 20-2 | 13413-95D10 Choke Rod (NLA)
SKU: 13413-95D10 Weight: 0.060000 Brand: Price: $ 28.96 |
Choke Rod (NLA) | 1 | $ 28.96 | S/N 751282 Newer | |
| 21 | 13245-95D00 Float Chamber
SKU: 13245-95D00 Weight: 0.250000 Brand: Price: $ 52.30 |
Float Chamber | 3 | $ 52.30 | ||
| 22-1 | 13371-95D00 Needle Valve (NLA)
SKU: 13371-95D00 Weight: 0.060000 Brand: Price: $ 22.21 |
Needle Valve (NLA) | 3 | $ 22.21 | 1989 to 1990 | |
| 22-2 | 13370-95D00 Needle Valve
SKU: 13370-95D00 Weight: 0.060000 Brand: Price: $ 46.53 |
Needle Valve | 3 | $ 46.53 | 1991 to 2000 | |
| 23 | 13534-95D00 Screw
SKU: 13534-95D00 Weight: 0.060000 Brand: Price: $ 3.71 |
Screw | 1 | $ 3.71 | ||
| 24 | 13589-95210 Washer
SKU: 13589-95210 Weight: 0.100000 Brand: Price: $ 3.47 |
Washer | 1 | $ 3.47 | ||
| 25 | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 4.61 |
Spring | 1 | $ 4.61 | ||
| 26 | 13432-33110 Washer
SKU: 13432-33110 Weight: 0.060000 Brand: Price: $ 3.98 |
Washer | 1 | $ 3.98 | ||
| 27 | 13464-96350 Spring Pin
SKU: 13464-96350 Weight: 0.060000 Brand: Price: $ 1.52 |
Spring Pin | 1 | $ 1.52 | ||
| 27A | 13591-93100 Pin
SKU: 13591-93100 Weight: 0.060000 Brand: Price: $ 2.29 |
Pin | 1 | $ 2.29 | S/N 751282 Newer | |
| 27B | 13445-14A00 Washer
SKU: 13445-14A00 Weight: 0.060000 Brand: Price: $ 2.97 |
Washer | 1 | $ 2.97 | S/N 751282 Newer | |
| 28-1 | 09493-20007 Air Jet #1.0
SKU: 09493-20007 Weight: 0.060000 Brand: Price: $ 12.75 |
Air Jet #1.0 | 2 | $ 12.75 | Carb #1 #3 1998 to 2000 | |
| 28-2 | 09493-28006 Pilot Air Jet #1.4
SKU: 09493-28006 Weight: 0.060000 Brand: Price: $ 14.65 |
Pilot Air Jet #1.4 | 1 | $ 14.65 | Carb #2 1998 to 2000 | |
| 29-1 | 09491-23012 Main Jet #115
SKU: 09491-23012 Weight: 0.060000 Brand: Price: $ 10.23 |
Main Jet #115 | 1 | $ 10.23 | Opt: 1989 to 1997 | |
| 29-2 | 09491-24026 Main Jet #120
SKU: 09491-24026 Weight: 0.060000 Brand: Price: $ 15.58 |
Main Jet #120 | 1 | $ 15.58 | Opt: 1989 to 1997 | |
| 29-3 | 09491-26016 Main Jet #130
SKU: 09491-26016 Weight: 0.060000 Brand: Price: $ 15.28 |
Main Jet #130 | 1 | $ 15.28 | Opt: 1989 to 1997 | |
| 29-4 | 09491-28011 Main Jet #140
SKU: 09491-28011 Weight: 0.100000 Brand: Price: $ 16.18 |
Main Jet #140 | 1 | $ 16.18 | Opt: 1989 to 1997 | |
| 29-5 | 09491-30010 Main Jet #150
SKU: 09491-30010 Weight: 0.062500 Brand: Price: $ 7.82 |
Main Jet #150 | 1 | $ 7.82 | Opt: 1989 to 1997 | |
| 30 | 13510-95D00 Throttle Rod Assembly (NLA)
SKU: 13510-95D00 Weight: 0.200000 Brand: Price: $ 16.03 |
Throttle Rod Assembly (NLA) | 2 | $ 16.03 | ||
| 31 | 13631-93501 Starter Knob
SKU: 13631-93501 Weight: 0.060000 Brand: Price: $ 4.52 |
Starter Knob | 1 | $ 4.52 | ||
| 32 | 09320-04013 Bushing
SKU: 09320-04013 Weight: 0.060000 Brand: Price: $ 1.60 |
Bushing | 1 | $ 1.60 | ||
| 33 | 09367-06002 3 Way
SKU: 09367-06002 Weight: 0.060000 Brand: Price: $ 2.65 |
3 Way | 1 | $ 2.65 | ||
| 34 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 2 | $ 7.60 | Carb to 3 Way L:600->40 | |
| 35 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | 3 Way to Carb L:600->140 | |
| 36 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 6 | $ 1.78 | ||
| 37 | 09140-04007 Nut
SKU: 09140-04007 Weight: 0.060000 Brand: Price: $ 2.28 |
Nut | 1 | $ 2.28 | ||
| 38 | 13910-95D00 Carburetor Repair Kit
SKU: 13910-95D00 Weight: 0.060000 Brand: Price: $ 54.73 |
Carburetor Repair Kit | 3 | $ 54.73 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
