Suzuki DT 25C Parts Listings 1989 to 2000

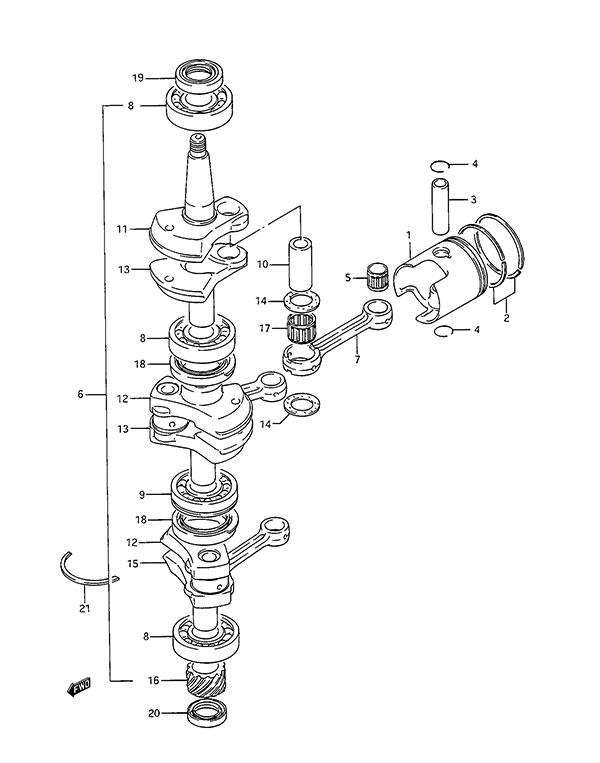

Fig. 2 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 12110-95D01 Piston (NLA)
SKU: 12110-95D01 Weight: 1.000000 Brand: Price: $ 81.08 |
Piston (NLA) | 3 | $ 81.08 | ||
| 1-2 | 12100-95D01-025 Piston & Ring Set (OS:0.25) (NLA)
SKU: 12100-95D01-025 Weight: 1.000000 Brand: Price: $ 113.31 |
Piston & Ring Set (OS:0.25) (NLA) | 3 | $ 113.31 | Optional | |
| 1-3 | 12100-95D01-050 Piston & Ring Set (OS:0.50) (NLA)
SKU: 12100-95D01-050 Weight: 1.000000 Brand: Price: $ 104.92 |
Piston & Ring Set (OS:0.50) (NLA) | 3 | $ 104.92 | Optional | |
| 2 | 12140-95D01 Piston Ring Set (NLA)
SKU: 12140-95D01 Weight: 0.060000 Brand: Price: $ 36.63 |
Piston Ring Set (NLA) | 3 | $ 36.63 | ||
| 3 | 12151-88410 Piston Pin
SKU: 12151-88410 Weight: 0.100000 Brand: Price: $ 8.46 |
Piston Pin | 3 | $ 8.46 | ||
| 4 | 09381-16001 Piston Pin Circlip
SKU: 09381-16001 Weight: 0.060000 Brand: Price: $ 1.44 |
Piston Pin Circlip | 6 | $ 1.44 | ||
| 5 | 09263-16030 Bearing (16x20x20)
SKU: 09263-16030 Weight: 0.250000 Brand: Price: $ 19.34 |
Bearing (16x20x20) | 3 | $ 19.34 | ||
| 6 | 12200-95D01 Crankshaft Assembly (NLA)
SKU: 12200-95D01 Weight: 20.000000 Brand: Price: $ 986.78 |
Crankshaft Assembly (NLA) | 1 | $ 986.78 | ||
| 7 | 12161-95D00 Connecting Rod
SKU: 12161-95D00 Weight: 0.500000 Brand: Price: $ 54.88 |
Connecting Rod | 3 | $ 54.88 | ||
| 8 | 09262-25098 Bearing (25x62x17)
SKU: 09262-25098 Weight: 0.600000 Brand: Price: $ 55.27 |
Bearing (25x62x17) | 3 | $ 55.27 | ||
| 9 | 09262-25105 Bearing (25x62x17)
SKU: 09262-25105 Weight: 0.600000 Brand: Price: $ 58.92 |
Bearing (25x62x17) | 1 | $ 58.92 | ||
| 10 | 12211-95D00 Crankshaft Pin
SKU: 12211-95D00 Weight: 0.250000 Brand: Price: $ 34.37 |
Crankshaft Pin | 3 | $ 34.37 | ||
| 11 | 12221-95D01 Upper Crankshaft (NLA)
SKU: 12221-95D01 Weight: 10.000000 Brand: Price: $ 106.28 |
Upper Crankshaft (NLA) | 1 | $ 106.28 | ||
| 12-1 | 12232-95D01 Crankshaft Under Wheel (NLA)
SKU: 12232-95D01 Weight: 0.100000 Brand: Price: $ 84.21 |
Crankshaft Under Wheel (NLA) | 2 | $ 84.21 | ||
| 12-2 | 12232-95D02 Crankshaft Under Wheel (NLA)
SKU: 12232-95D02 Weight: 10.000000 Brand: Price: $ 95.91 |
Crankshaft Under Wheel (NLA) | 2 | $ 95.91 | 1996 to 2000 | |
| 13-1 | 12231-95D01 Crankshaft Upper Wheel (NLA)
SKU: 12231-95D01 Weight: 0.100000 Brand: Price: $ 72.48 |
Crankshaft Upper Wheel (NLA) | 2 | $ 72.48 | ||
| 13-2 | 12231-95D02 Crankshaft Upper Wheel (NLA)
SKU: 12231-95D02 Weight: 10.000000 Brand: Price: $ 108.35 |
Crankshaft Upper Wheel (NLA) | 2 | $ 108.35 | 1996 to 2000 | |
| 14 | 09160-21014 Washer (NLA)
SKU: 09160-21014 Weight: 0.100000 Brand: Price: $ 2.68 |
Washer (NLA) | 6 | $ 2.68 | ||
| 15 | 12240-95D02 Under Crankshaft (NLA)
SKU: 12240-95D02 Weight: 10.000000 Brand: Price: $ 106.19 |
Under Crankshaft (NLA) | 1 | $ 106.19 | ||
| 16 | 16321-95D00 Oil Pump Drive Gear
SKU: 16321-95D00 Weight: 0.100000 Brand: Price: $ 104.07 |
Oil Pump Drive Gear | 1 | $ 104.07 | ||
| 17 | 09263-21009 Bearing (21x28x17) (NLA)
SKU: 09263-21009 Weight: 0.250000 Brand: Price: $ 24.71 |
Bearing (21x28x17) (NLA) | 3 | $ 24.71 | ||
| 18 | 09289-39001 Oil Seal (NLA)
SKU: 09289-39001 Weight: 0.100000 Brand: Price: $ 16.96 |
Oil Seal (NLA) | 2 | $ 16.96 | ||
| 19 | 09283-25107 Oil Seal (25x44x7)
SKU: 09283-25107 Weight: 0.060000 Brand: Price: $ 6.12 |
Oil Seal (25x44x7) | 1 | $ 6.12 | ||
| 20 | 09283-25092 Crankshaft Oil Seal
SKU: 09283-25092 Weight: 0.060000 Brand: Price: $ 13.70 |
Crankshaft Oil Seal | 1 | $ 13.70 | ||
| 21 | 09390-62009 C Ring
SKU: 09390-62009 Weight: 0.060000 Brand: Price: $ 4.06 |
C Ring | 1 | $ 4.06 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
