Suzuki DF 140 Parts Listings - 2002 to 2011
S/N 14001F-251001 to 14002F-11XXXX
S/N 14001Z-251001 to 14002Z-11XXXX

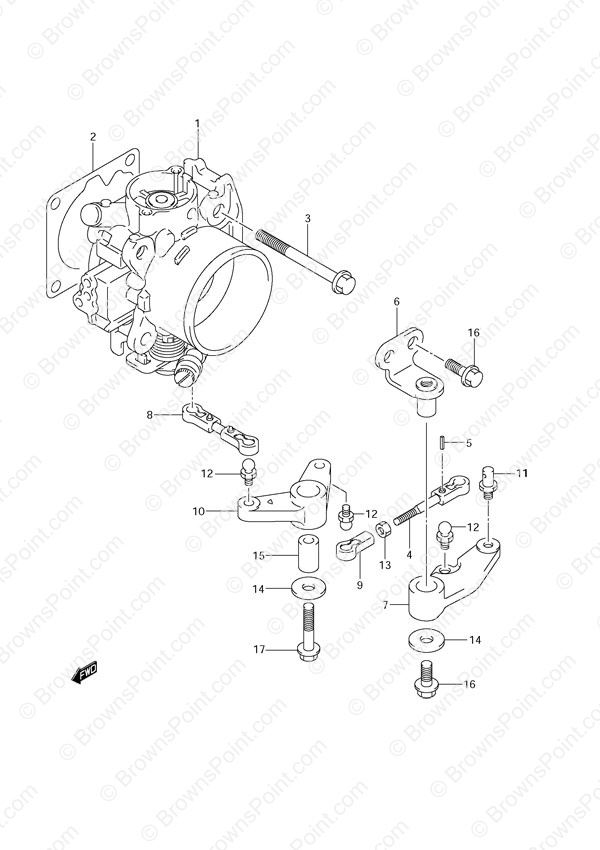

Fig. 16 - Throttle Body
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13300-90J00 Throttle Body Assembly
SKU: 13300-90J00 Weight: 1.920000 Brand: Price: $ 846.72 |
Throttle Body Assembly | 1 | $ 846.72 | ||
| 2 | 13421-90J01 Throttle Body Gasket
SKU: 13421-90J01 Weight: 0.060000 Brand: Price: $ 3.86 |
Throttle Body Gasket | 1 | $ 3.86 | ||
| 3-1 | 01550-08607 BOLT
SKU: 01550-08607 Weight: 0.060000 Brand: Price: $ 3.82 |
BOLT | 4 | $ 3.82 | ||
| 3-2 | 01550-08557 BOLT
SKU: 01550-08557 Weight: 0.060000 Brand: Price: $ 3.61 |
BOLT | 4 | $ 3.61 | DF140T:254115 Newer DF140Z:251227 Newer | |
| 4 | 13510-90J00 Throttle Rod
SKU: 13510-90J00 Weight: 0.100000 Brand: Price: $ 17.28 |
Throttle Rod | 1 | $ 17.28 | ||
| 5 | 09205-02006 Spring Pin (2x12)
SKU: 09205-02006 Weight: 0.060000 Brand: Price: $ 1.07 |
Spring Pin (2x12) | 1 | $ 1.07 | ||
| 6 | 19115-90J00 Throttle Lever Holder
SKU: 19115-90J00 Weight: 0.100000 Brand: Price: $ 22.97 |
Throttle Lever Holder | 1 | $ 22.97 | ||
| 7 | 19121-90J00 Throttle Lever No. 1
SKU: 19121-90J00 Weight: 0.100000 Brand: Price: $ 15.36 |
Throttle Lever No. 1 | 1 | $ 15.36 | ||
| 8 | 19130-90J10 Throttle Rod No. 2
SKU: 19130-90J10 Weight: 0.060000 Brand: Price: $ 6.56 |
Throttle Rod No. 2 | 1 | $ 6.56 | ||
| 9 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 1 | $ 4.52 | ||
| 10 | 19148-90J00 Throttle Lever (NLA)
SKU: 19148-90J00 Weight: 0.100000 Brand: Price: $ 10.39 |
Throttle Lever (NLA) | 1 | $ 10.39 | ||
| 11 | 67473-89J00 Connector Pin
SKU: 67473-89J00 Weight: 0.060000 Brand: Price: $ 9.29 |
Connector Pin | 1 | $ 9.29 | ||
| 12 | 09119-05010 Pivot Ball
SKU: 09119-05010 Weight: 0.060000 Brand: Price: $ 6.97 |
Pivot Ball | 3 | $ 6.97 | ||
| 13 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
| 14 | 09160-06046 Washer (6.5x20x1.5)
SKU: 09160-06046 Weight: 0.060000 Brand: Price: $ 1.99 |
Washer (6.5x20x1.5) | 2 | $ 1.99 | ||
| 15 | 09180-06186 Spacer (6.2x12.6x21)
SKU: 09180-06186 Weight: 0.060000 Brand: Price: $ 7.02 |
Spacer (6.2x12.6x21) | 1 | $ 7.02 | ||
| 16 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 17 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 1 | $ 2.82 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
