Suzuki DF 115A Parts Listings
S/N 11503F-410001 to 11503F-41XXXX
S/N 11503Z-410001 to 11503Z-41XXXX

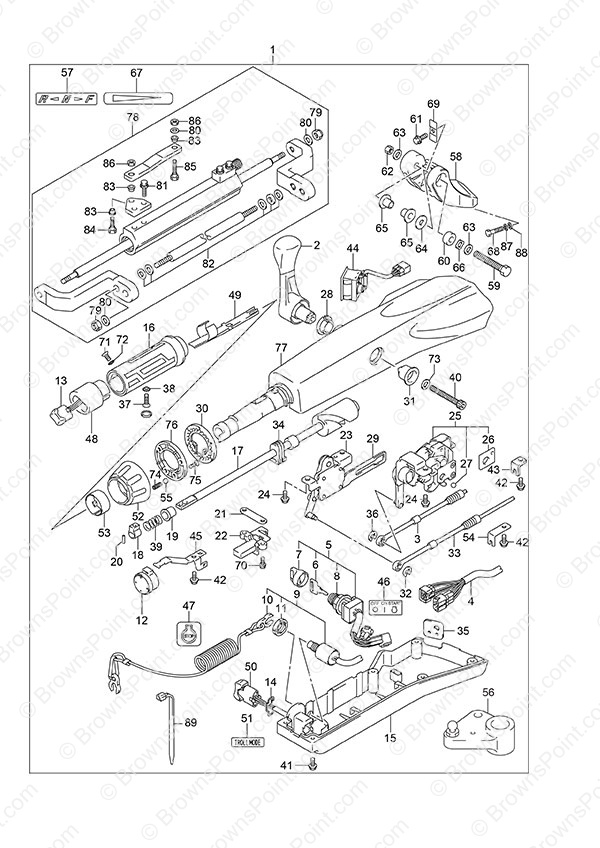

Fig. 99 - Opt: Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 63002-90J32-0EP Tiller Handle Kit
SKU: 63002-90J32-0EP Weight: 40.000000 Brand: Price: $ 2,295.95 |
Tiller Handle Kit | 1 | $ 2,295.95 | ||
| 2 | 21110-88L00 Shift Lever (NLA)
SKU: 21110-88L00 Weight: 0.250000 Brand: Price: $ 110.82 |
Shift Lever (NLA) | 1 | $ 110.82 | ||
| 3 | 23230-90J20 Shift Cable
SKU: 23230-90J20 Weight: 1.000000 Brand: Price: $ 97.58 |
Shift Cable | 1 | $ 97.58 | ||
| 4 | 36620-87L00 Wire Harness Assembly (NLA)
SKU: 36620-87L00 Weight: 1.000000 Brand: Price: $ 0.00 |
Wire Harness Assembly (NLA) | 1 | $ 0.00 | ||
| 5 | 37110-87L00 Ignition Switch Assembly
SKU: 37110-87L00 Weight: 0.250000 Brand: Price: $ 0.00 |
Ignition Switch Assembly | 1 | $ 0.00 | ||
| 6-1 | 37141-99E00 (931) Ignition Key
SKU: 37141-99E00 Weight: 0.060000 Brand: Price: $ 15.38 |
(931) Ignition Key | 1 | $ 15.38 | ||
| 6-2 | 37141-99E10 (932) Ignition Key
SKU: 37141-99E10 Weight: 0.060000 Brand: Price: $ 15.38 |
(932) Ignition Key | 1 | $ 15.38 | ||
| 6-3 | 37141-99E20 (933) Ignition Key
SKU: 37141-99E20 Weight: 0.060000 Brand: Price: $ 15.38 |
(933) Ignition Key | 1 | $ 15.38 | ||
| 6-4 | 37141-99E30 (934) Ignition Key
SKU: 37141-99E30 Weight: 0.060000 Brand: Price: $ 15.38 |
(934) Ignition Key | 1 | $ 15.38 | ||
| 6-5 | 37141-99E40 (935) Ignition Key
SKU: 37141-99E40 Weight: 0.060000 Brand: Price: $ 15.38 |
(935) Ignition Key | 1 | $ 15.38 | ||
| 6-6 | 37141-99E50 (936) Ignition Key
SKU: 37141-99E50 Weight: 0.060000 Brand: Price: $ 15.38 |
(936) Ignition Key | 1 | $ 15.38 | ||
| 6-7 | 37141-99E60 (937) Ignition Key
SKU: 37141-99E60 Weight: 0.060000 Brand: Price: $ 15.38 |
(937) Ignition Key | 1 | $ 15.38 | ||
| 6-8 | 37141-99E70 (938) Ignition Key
SKU: 37141-99E70 Weight: 0.060000 Brand: Price: $ 15.38 |
(938) Ignition Key | 1 | $ 15.38 | ||
| 6-9 | 37141-99E80 (939) Ignition Key
SKU: 37141-99E80 Weight: 0.060000 Brand: Price: $ 15.38 |
(939) Ignition Key | 1 | $ 15.38 | ||
| 6-10 | 37141-99E90 (940) Ignition Key
SKU: 37141-99E90 Weight: 0.060000 Brand: Price: $ 15.38 |
(940) Ignition Key | 1 | $ 15.38 | ||
| 6-11 | 37141-99EA0 (941) Ignition Key
SKU: 37141-99EA0 Weight: 0.060000 Brand: Price: $ 15.38 |
(941) Ignition Key | 1 | $ 15.38 | ||
| 6-12 | 37141-99EB0 (942) Ignition Key
SKU: 37141-99EB0 Weight: 0.060000 Brand: Price: $ 15.38 |
(942) Ignition Key | 1 | $ 15.38 | ||
| 7 | 37143-99E01 Key Cap
SKU: 37143-99E01 Weight: 0.060000 Brand: Price: $ 6.09 |
Key Cap | 1 | $ 6.09 | ||
| 8 | 37149-93J00 Cylinder Body Cap
SKU: 37149-93J00 Weight: 0.060000 Brand: Price: $ 8.50 |
Cylinder Body Cap | 1 | $ 8.50 | ||
| 9 | 37820-87L02 Emergency Switch Assembly
SKU: 37820-87L02 Weight: 0.250000 Brand: Price: $ 48.38 |
Emergency Switch Assembly | 1 | $ 48.38 | ||
| 10 | 37823-92E02 Stop Switch Lanyard
SKU: 37823-92E02 Weight: 0.250000 Brand: Price: $ 19.68 |
Stop Switch Lanyard | 1 | $ 19.68 | ||
| 11 | 37826-92E00 Nut
SKU: 37826-92E00 Weight: 0.060000 Brand: Price: $ 5.77 |
Nut | 1 | $ 5.77 | ||
| 12 | 38500-93J90 Warning Buzzer
SKU: 38500-93J90 Weight: 0.060000 Brand: Price: $ 39.28 |
Warning Buzzer | 1 | $ 39.28 | ||
| 13 | 37850-87L01 PTT Switch Assembly
SKU: 37850-87L01 Weight: 0.250000 Brand: Price: $ 56.62 |
PTT Switch Assembly | 1 | $ 56.62 | ||
| 14 | 37852-87J00 Trim Switch Cap
SKU: 37852-87J00 Weight: 0.100000 Brand: Price: $ 17.33 |
Trim Switch Cap | 1 | $ 17.33 | ||
| 15 | 63121-88L00 Under Cover
SKU: 63121-88L00 Weight: 1.000000 Brand: Price: $ 44.12 |
Under Cover | 1 | $ 44.12 | ||
| 16 | 63210-88L00 Handle Grip
SKU: 63210-88L00 Weight: 1.500000 Brand: Price: $ 51.67 |
Handle Grip | 1 | $ 51.67 | ||
| 17 | 63221-88L00 Throttle Shaft (NLA)
SKU: 63221-88L00 Weight: 0.250000 Brand: Price: $ 58.36 |
Throttle Shaft (NLA) | 1 | $ 58.36 | ||
| 18 | 63223-92D00 Handle Rod Stopper
SKU: 63223-92D00 Weight: 0.060000 Brand: Price: $ 4.49 |
Handle Rod Stopper | 1 | $ 4.49 | ||
| 19 | 63225-88L00 Handle Rod Bushing (NLA)
SKU: 63225-88L00 Weight: 0.250000 Brand: Price: $ 8.57 |
Handle Rod Bushing (NLA) | 1 | $ 8.57 | ||
| 20 | 63227-93200 Handle Rod Pin
SKU: 63227-93200 Weight: 0.062500 Brand: Price: $ 2.18 |
Handle Rod Pin | 1 | $ 2.18 | ||
| 21 | 63235-88L00 Throttle Shaft Plate
SKU: 63235-88L00 Weight: 0.250000 Brand: Price: $ 10.13 |
Throttle Shaft Plate | 1 | $ 10.13 | ||
| 22 | 63246-88L00 Throttle Adjust Stopper (NLA)
SKU: 63246-88L00 Weight: 0.250000 Brand: Price: $ 10.20 |
Throttle Adjust Stopper (NLA) | 1 | $ 10.20 | ||
| 23 | 63250-88L00 Throttle Arm Assembly (NLA)
SKU: 63250-88L00 Weight: 0.250000 Brand: Price: $ 113.80 |
Throttle Arm Assembly (NLA) | 1 | $ 113.80 | ||
| 24 | 63251-87J00 Screw (6x12)
SKU: 63251-87J00 Weight: 0.100000 Brand: Price: $ 3.81 |
Screw (6x12) | 4 | $ 3.81 | ||
| 25 | 63260-88L00 Shift Gear Assembly
SKU: 63260-88L00 Weight: 0.250000 Brand: Price: $ 205.87 |
Shift Gear Assembly | 1 | $ 205.87 | ||
| 26 | 63272-87J00 Ball Guide Plate
SKU: 63272-87J00 Weight: 0.100000 Brand: Price: $ 13.13 |
Ball Guide Plate | 1 | $ 13.13 | ||
| 27 | 63273-87J00 Ball (NLA)
SKU: 63273-87J00 Weight: 0.100000 Brand: Price: $ 4.60 |
Ball (NLA) | 1 | $ 4.60 | ||
| 28 | 63262-87J00 Shift Lever Bushing
SKU: 63262-87J00 Weight: 0.100000 Brand: Price: $ 4.32 |
Shift Lever Bushing | 1 | $ 4.32 | ||
| 29 | 63271-87J00 Lock Plate
SKU: 63271-87J00 Weight: 0.250000 Brand: Price: $ 18.34 |
Lock Plate | 1 | $ 18.34 | ||
| 30 | 63248-99J00 Throttle Adjuster Notch Plate
SKU: 63248-99J00 Weight: 0.250000 Brand: Price: $ 5.19 |
Throttle Adjuster Notch Plate | 1 | $ 5.19 | ||
| 31 | 63261-87J00 Shift Gear Bushing
SKU: 63261-87J00 Weight: 0.100000 Brand: Price: $ 13.38 |
Shift Gear Bushing | 1 | $ 13.38 | ||
| 32 | 63274-87J00 E Ring (NLA)
SKU: 63274-87J00 Weight: 0.100000 Brand: Price: $ 1.85 |
E Ring (NLA) | 1 | $ 1.85 | ||
| 33 | 63610-87J00 Throttle Cable Assembly
SKU: 63610-87J00 Weight: 0.300000 Brand: Price: $ 91.49 |
Throttle Cable Assembly | 1 | $ 91.49 | ||
| 34 | 37853-88L90 PTT Switch Lead Grommet
SKU: 37853-88L90 Weight: 0.250000 Brand: Price: $ 10.80 |
PTT Switch Lead Grommet | 1 | $ 10.80 | ||
| 35 | 63626-88L00 Cable Grommet (NLA)
SKU: 63626-88L00 Weight: 0.250000 Brand: Price: $ 11.41 |
Cable Grommet (NLA) | 1 | $ 11.41 | ||
| 36 | 67292-87J00 E Ring
SKU: 67292-87J00 Weight: 0.060000 Brand: Price: $ 2.82 |
E Ring | 2 | $ 2.82 | ||
| 37 | 09126-06015 Screw (6x23)
SKU: 09126-06015 Weight: 0.060000 Brand: Price: $ 2.62 |
Screw (6x23) | 1 | $ 2.62 | ||
| 38 | 09163-06001 Lock Washer (6.4x12x0.5)
SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
| 39 | 09440-12027 Spring
SKU: 09440-12027 Weight: 0.060000 Brand: Price: $ 1.39 |
Spring | 1 | $ 1.39 | ||
| 40 | 21112-88L00 Shift Lever Bolt
SKU: 21112-88L00 Weight: 0.250000 Brand: Price: $ 13.23 |
Shift Lever Bolt | 1 | $ 13.23 | ||
| 41 | 09125-05047 Screw (5x14)
SKU: 09125-05047 Weight: 0.100000 Brand: Price: $ 1.95 |
Screw (5x14) | 6 | $ 1.95 | ||
| 42 | 63611-88L00 Clamp Bracket Bolt (NLA)
SKU: 63611-88L00 Weight: 0.250000 Brand: Price: $ 10.20 |
Clamp Bracket Bolt (NLA) | 3 | $ 10.20 | ||
| 43 | 63612-87J00 Clamp Bracket
SKU: 63612-87J00 Weight: 0.100000 Brand: Price: $ 34.67 |
Clamp Bracket | 1 | $ 34.67 | ||
| 44 | 34200-87L00 Tachometer w/Monitor
SKU: 34200-87L00 Weight: 0.500000 Brand: Price: $ 162.40 |
Tachometer w/Monitor | 1 | $ 162.40 | ||
| 45 | 36617-88L90 Main Harness Clamp Bracket
SKU: 36617-88L90 Weight: 0.250000 Brand: Price: $ 6.33 |
Main Harness Clamp Bracket | 1 | $ 6.33 | ||
| 46 | 37112-88L90 Ignition Switch Label (NLA)
SKU: 37112-88L90 Weight: 0.250000 Brand: Price: $ 7.39 |
Ignition Switch Label (NLA) | 1 | $ 7.39 | ||
| 47 | 37835-91J00-YAY Stop Label
SKU: 37835-91J00-YAY Weight: 0.060000 Brand: Price: $ 1.20 |
Stop Label | 1 | $ 1.20 | ||
| 48 | 37851-88L90 PTT Switch Base
SKU: 37851-88L90 Weight: 0.250000 Brand: Price: $ 17.37 |
PTT Switch Base | 1 | $ 17.37 | ||
| 49 | 37852-88L90 Guide Harness
SKU: 37852-88L90 Weight: 0.250000 Brand: Price: $ 9.82 |
Guide Harness | 1 | $ 9.82 | ||
| 50 | 37861-87L10 Troll Mode Control Switch
SKU: 37861-87L10 Weight: 0.250000 Brand: Price: $ 52.18 |
Troll Mode Control Switch | 1 | $ 52.18 | ||
| 51 | 37864-88L90 Troll Mode Label (NLA)
SKU: 37864-88L90 Weight: 0.060000 Brand: Price: $ 6.29 |
Troll Mode Label (NLA) | 1 | $ 6.29 | ||
| 52 | 63244-99J00 Throttle Adjuster Knob
SKU: 63244-99J00 Weight: 0.250000 Brand: Price: $ 9.41 |
Throttle Adjuster Knob | 1 | $ 9.41 | ||
| 53 | 63245-99J00 Throttle Adjuster Bushing
SKU: 63245-99J00 Weight: 0.250000 Brand: Price: $ 4.82 |
Throttle Adjuster Bushing | 1 | $ 4.82 | ||
| 54 | 63612-88L10 Clamp Shift Bracket (NLA)
SKU: 63612-88L10 Weight: 0.250000 Brand: Price: $ 8.57 |
Clamp Shift Bracket (NLA) | 1 | $ 8.57 | ||
| 55 | 09260-10006 Ball
SKU: 09260-10006 Weight: 0.250000 Brand: Price: $ 2.53 |
Ball | 1 | $ 2.53 | ||
| 56 | 19140-92J10 Throttle Lever
SKU: 19140-92J10 Weight: 0.250000 Brand: Price: $ 244.47 |
Throttle Lever | 1 | $ 244.47 | ||
| 57 | 21131-88L00 Clutch Shift Mark
SKU: 21131-88L00 Weight: 0.060000 Brand: Price: $ 2.24 |
Clutch Shift Mark | 1 | $ 2.24 | ||
| 58 | 43761-90J10-0EP Tiller Handle Bracket
SKU: 43761-90J10-0EP Weight: 0.250000 Brand: Price: $ 417.72 |
Tiller Handle Bracket | 1 | $ 417.72 | ||
| 59 | 43762-88L00 Tiller Handle Pivot Bolt
SKU: 43762-88L00 Weight: 0.250000 Brand: Price: $ 29.63 |
Tiller Handle Pivot Bolt | 1 | $ 29.63 | ||
| 60 | 43768-88L00 Tiller Handle Spacer
SKU: 43768-88L00 Weight: 0.250000 Brand: Price: $ 45.21 |
Tiller Handle Spacer | 1 | $ 45.21 | ||
| 61 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 1 | $ 7.44 | ||
| 62 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 1 | $ 5.04 | ||
| 63 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 2 | $ 1.80 | ||
| 64 | 09160-12124 Washer (12.5x32x1.5)
SKU: 09160-12124 Weight: 0.060000 Brand: Price: $ 4.43 |
Washer (12.5x32x1.5) | 1 | $ 4.43 | ||
| 65 | 63115-88L01 Tiller Handle Bushing
SKU: 63115-88L01 Weight: 0.250000 Brand: Price: $ 4.83 |
Tiller Handle Bushing | 2 | $ 4.83 | ||
| 66 | 09164-13010 Washer
SKU: 09164-13010 Weight: 0.250000 Brand: Price: $ 10.38 |
Washer | 1 | $ 10.38 | ||
| 67 | 63215-93110 Handle Grip Mark
SKU: 63215-93110 Weight: 0.060000 Brand: Price: $ 3.19 |
Handle Grip Mark | 1 | $ 3.19 | ||
| 68 | 43769-90J00 Bolt (10x55)
SKU: 43769-90J00 Weight: 0.250000 Brand: Price: $ 13.18 |
Bolt (10x55) | 2 | $ 13.18 | ||
| 69 | 63132-88L00 Tiller Handle Stopper
SKU: 63132-88L00 Weight: 0.250000 Brand: Price: $ 13.23 |
Tiller Handle Stopper | 1 | $ 13.23 | ||
| 70 | 63251-88L90 Bolt
SKU: 63251-88L90 Weight: 0.250000 Brand: Price: $ 3.69 |
Bolt | 2 | $ 3.69 | ||
| 71 | 37855-88L90 Throttle Grip Screw
SKU: 37855-88L90 Weight: 0.250000 Brand: Price: $ 3.25 |
Throttle Grip Screw | 1 | $ 3.25 | ||
| 72 | 37854-88L90 Throttle Grip Washer
SKU: 37854-88L90 Weight: 0.250000 Brand: Price: $ 2.71 |
Throttle Grip Washer | 1 | $ 2.71 | ||
| 73 | 63258-88L00 Washer
SKU: 63258-88L00 Weight: 0.250000 Brand: Price: $ 2.29 |
Washer | 1 | $ 2.29 | ||
| 74 | 09440-06037 Spring
SKU: 09440-06037 Weight: 0.100000 Brand: Price: $ 0.69 |
Spring | 1 | $ 0.69 | ||
| 75 | 03522-05169 Screw
SKU: 03522-05169 Weight: 0.100000 Brand: Price: $ 0.00 |
Screw | 3 | $ 0.00 | ||
| 76 | 63247-99J00 Throttle Adjuster Knob Plate
SKU: 63247-99J00 Weight: 0.250000 Brand: Price: $ 4.90 |
Throttle Adjuster Knob Plate | 1 | $ 4.90 | ||
| 77 | 63111-88L00-0EP Tiller Handle Housing (NLA)
SKU: 63111-88L00-0EP Weight: 5.000000 Brand: Price: $ 255.19 |
Tiller Handle Housing (NLA) | 1 | $ 255.19 | ||
| 78 | 43770-90J00 Steering Damper Assembly
SKU: 43770-90J00 Weight: 5.000000 Brand: Price: $ 2,034.84 |
Steering Damper Assembly | 1 | $ 2,034.84 | ||
| 79 | 43778-90J00 Rod Nut
SKU: 43778-90J00 Weight: 0.100000 Brand: Price: $ 12.44 |
Rod Nut | 4 | $ 12.44 | ||
| 80 | 43779-90J00 Rod Washer
SKU: 43779-90J00 Weight: 0.100000 Brand: Price: $ 4.98 |
Rod Washer | 5 | $ 4.98 | ||
| 81 | 67725-90J00 Drag Link Bolt
SKU: 67725-90J00 Weight: 0.100000 Brand: Price: $ 4.14 |
Drag Link Bolt | 2 | $ 4.14 | ||
| 82 | 43781-90J00 Spacer/Washer Set
SKU: 43781-90J00 Weight: 0.100000 Brand: Price: $ 76.21 |
Spacer/Washer Set | 1 | $ 76.21 | ||
| 83 | 67734-90J00 Drag Link Bushing
SKU: 67734-90J00 Weight: 0.100000 Brand: Price: $ 6.41 |
Drag Link Bushing | 3 | $ 6.41 | ||
| 84 | 67725-90J10 Drag Link Bolt (NLA)
SKU: 67725-90J10 Weight: 0.100000 Brand: Price: $ 64.47 |
Drag Link Bolt (NLA) | 1 | $ 64.47 | ||
| 85 | 67725-90J20 Drag Link Bolt (NLA)
SKU: 67725-90J20 Weight: 0.100000 Brand: Price: $ 73.98 |
Drag Link Bolt (NLA) | 1 | $ 73.98 | ||
| 86 | 67726-90J00 Drag Link Nut
SKU: 67726-90J00 Weight: 0.100000 Brand: Price: $ 6.56 |
Drag Link Nut | 2 | $ 6.56 | ||
| 87 | 29162-93J20 Lock Washer
SKU: 29162-93J20 Weight: 0.100000 Brand: Price: $ 1.93 |
Lock Washer | 2 | $ 1.93 | ||
| 88 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 2 | $ 1.80 | ||
| 89 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
- Prices and Part Numbers subject to change without notice.
- All contents of this website apply to the continental U.S. market only.
- All trademarks or product names mentioned herein are the property of their respective owners.
