Suzuki DF 115A Parts Listings
S/N 11503F-410001 to 11503F-41XXXX
S/N 11503Z-410001 to 11503Z-41XXXX

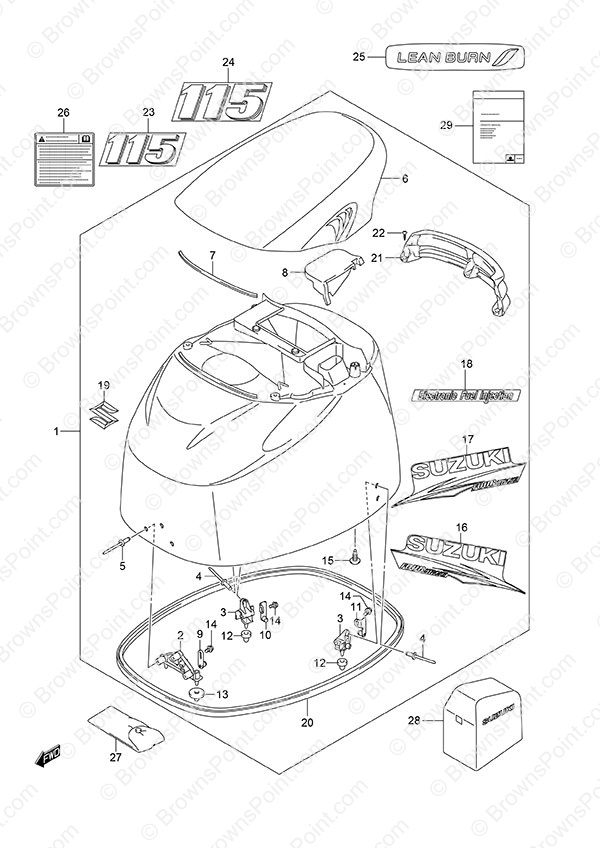

Fig. 80 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61400-90855-0EP Engine Cover Set
SKU: 61400-90855-0EP Weight: 110.000000 Brand: Price: $ 1,002.97 |
Engine Cover Set | 1 | $ 1,002.97 | ||
| 2 | 61621-87D20 Front Fastener Bracket
SKU: 61621-87D20 Weight: 0.250000 Brand: Price: $ 17.04 |
Front Fastener Bracket | 1 | $ 17.04 | ||
| 3 | 61644-90J20 Rear Fastener Bracket
SKU: 61644-90J20 Weight: 0.250000 Brand: Price: $ 20.27 |
Rear Fastener Bracket | 2 | $ 20.27 | ||
| 4 | 09229-04025 Rivet
SKU: 09229-04025 Weight: 0.060000 Brand: Price: $ 2.82 |
Rivet | 4 | $ 2.82 | ||
| 5 | 09229-04025 Rivet
SKU: 09229-04025 Weight: 0.060000 Brand: Price: $ 2.82 |
Rivet | 3 | $ 2.82 | ||
| 6 | 61430-92800-0EP Tilt Up Handle
SKU: 61430-92800-0EP Weight: 6.000000 Brand: Price: $ 154.09 |
Tilt Up Handle | 1 | $ 154.09 | ||
| 7 | 61438-92J11 Tilt Up Handle Seal
SKU: 61438-92J11 Weight: 0.250000 Brand: Price: $ 6.41 |
Tilt Up Handle Seal | 1 | $ 6.41 | ||
| 8 | 61439-92J10 Tilt Up Handle Seal
SKU: 61439-92J10 Weight: 0.250000 Brand: Price: $ 2.60 |
Tilt Up Handle Seal | 1 | $ 2.60 | ||
| 9 | 61610-93J00 Fastener
SKU: 61610-93J00 Weight: 0.060000 Brand: Price: $ 16.59 |
Fastener | 1 | $ 16.59 | ||
| 10 | 61680-90J01 Starboard Rear Fastener
SKU: 61680-90J01 Weight: 0.080000 Brand: Price: $ 17.42 |
Starboard Rear Fastener | 1 | $ 17.42 | ||
| 11 | 61690-90J01 Port Rear Fastener
SKU: 61690-90J01 Weight: 0.080000 Brand: Price: $ 17.42 |
Port Rear Fastener | 1 | $ 17.42 | ||
| 12 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 2 | $ 4.06 | ||
| 13 | 09329-10025 Cushion
SKU: 09329-10025 Weight: 0.060000 Brand: Price: $ 3.33 |
Cushion | 2 | $ 3.33 | ||
| 14 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 15 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.16 |
SCREW | 4 | $ 2.16 | ||
| 16 | 61443-87L20 Starboard Engine Cover Stripe
SKU: 61443-87L20 Weight: 0.250000 Brand: Price: $ 54.42 |
Starboard Engine Cover Stripe | 1 | $ 54.42 | ||
| 17 | 61453-87L20 Port Engine Cover Stripe
SKU: 61453-87L20 Weight: 0.250000 Brand: Price: $ 45.31 |
Port Engine Cover Stripe | 1 | $ 45.31 | ||
| 18 | 61446-87L12 EFI Decal
SKU: 61446-87L12 Weight: 0.060000 Brand: Price: $ 7.51 |
EFI Decal | 1 | $ 7.51 | ||
| 19 | 77811-63J00-0PG Chrome S Emblem
SKU: 77811-63J00-0PG Weight: 0.200000 Brand: Price: $ 18.49 |
Chrome S Emblem | 1 | $ 18.49 | ||
| 20 | 61112-92J10 Side Cover Rubber
SKU: 61112-92J10 Weight: 1.000000 Brand: Price: $ 82.52 |
Side Cover Rubber | 1 | $ 82.52 | ||
| 21 | 61432-92J10 Tilt Up Louver
SKU: 61432-92J10 Weight: 1.000000 Brand: Price: $ 50.12 |
Tilt Up Louver | 1 | $ 50.12 | ||
| 22 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.16 |
SCREW | 3 | $ 2.16 | ||
| 23 | 61422-90J32 Front Emblem Mark (115)
SKU: 61422-90J32 Weight: 0.200000 Brand: Price: $ 11.77 |
Front Emblem Mark (115) | 1 | $ 11.77 | ||
| 24 | 61435-90J82 Rear Emblem Mark (115)
SKU: 61435-90J82 Weight: 0.200000 Brand: Price: $ 13.03 |
Rear Emblem Mark (115) | 1 | $ 13.03 | ||
| 25 | 61471-98J00 Lean Burn Decal
SKU: 61471-98J00 Weight: 0.250000 Brand: Price: $ 10.05 |
Lean Burn Decal | 1 | $ 10.05 | ||
| 26 | 61458-99E60 Engine Cover Label
SKU: 61458-99E60 Weight: 0.060000 Brand: Price: $ 9.12 |
Engine Cover Label | 1 | $ 9.12 | ||
| 27 | 09800-81841 Tool Set
SKU: 09800-81841 Weight: 1.060000 Brand: Price: $ 28.52 |
Tool Set | 1 | $ 28.52 | ||
| 28 | 68110-87L00 Weather Cover
SKU: 68110-87L00 Weight: 2.000000 Brand: Price: $ 133.59 |
Weather Cover | 1 | $ 133.59 | Optional | |
| 29 | 99011-90J40-03B O/M DF100A/115A/140A 410001 ~
SKU: 99011-90J40-03B Weight: 0.250000 Brand: Price: $ 18.00 |
O/M DF100A/115A/140A 410001 ~ | 1 | $ 18.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
