Suzuki DF 115A Parts Listings
S/N 11503F-410001 to 11503F-41XXXX
S/N 11503Z-410001 to 11503Z-41XXXX

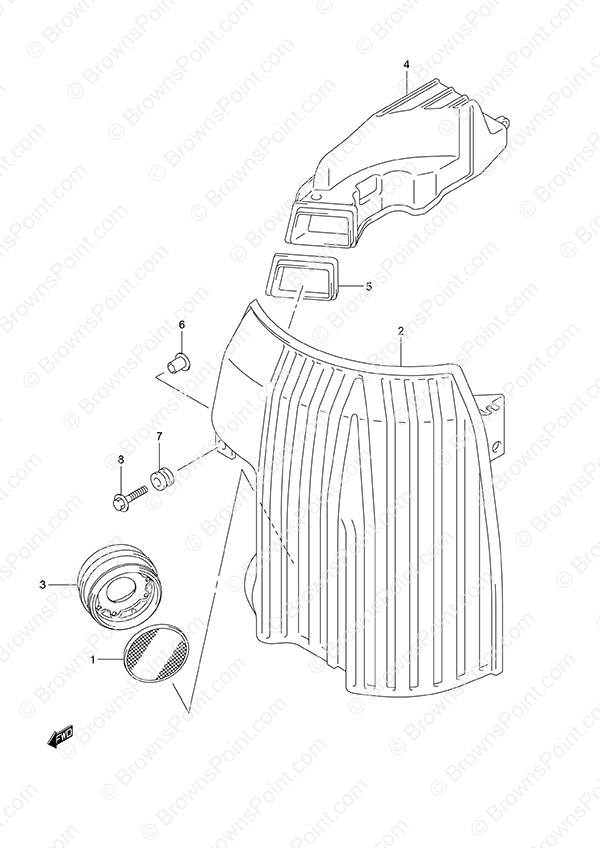

Fig. 9 - Silencer

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 13710-99E00 Flame Arrester 1 $ 16.35
2 13810-90J01 Silencer Assembly 1 $ 148.87
3 13813-92J00 Flame Arrester Holder 1 $ 13.90

Not Available

4 13840-90J00 Silencer Duct 1 $ 52.79
5 13851-90J01 Silencer Grommet 1 $ 9.16
6 09169-06075 Washer 5 $ 3.19
7 09320-09059 Cushion 5 $ 3.31
8 09116-06215 Bolt (6x30) w/Washer 5 $ 3.54

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
