Suzuki DF 175 Parts Listings 2006 to S/N 17502F-11XXXX 2006 to S/N 17502Z-11XXXX

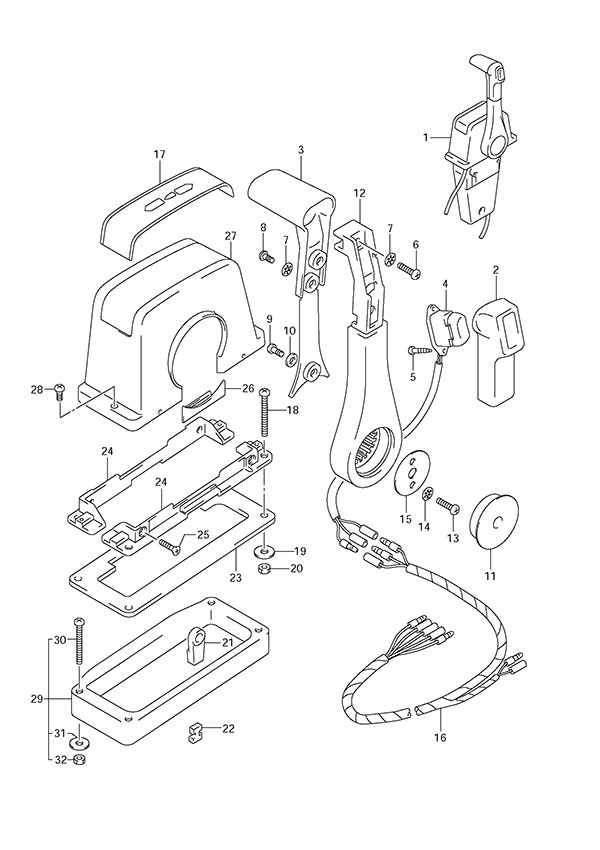

Fig. 52 - Opt: Top Mount Single (1)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67200-88L02 Single Binnacle Control Box
SKU: 67200-88L02 Weight: 0.000000 Brand: Price: $ 435.72 |
Single Binnacle Control Box | 1 | $ 435.72 | ||
| 2 | 67261-93J00 Grip No 1
SKU: 67261-93J00 Weight: 0.060000 Brand: Price: $ 12.55 |
Grip No 1 | 1 | $ 12.55 | ||
| 3 | 67263-93J00 Grip No 2
SKU: 67263-93J00 Weight: 0.120000 Brand: Price: $ 17.97 |
Grip No 2 | 1 | $ 17.97 | ||
| 4 | 37850-93J10 PTT Switch Assembly
SKU: 37850-93J10 Weight: 0.120000 Brand: Price: $ 110.29 |
PTT Switch Assembly | 1 | $ 110.29 | ||
| 5 | 67295-92E10 Screw (3x12)
SKU: 67295-92E10 Weight: 0.060000 Brand: Price: $ 2.49 |
Screw (3x12) | 2 | $ 2.49 | ||
| 6 | 67296-88D10 Screw (5x16)
SKU: 67296-88D10 Weight: 0.060000 Brand: Price: $ 2.44 |
Screw (5x16) | 1 | $ 2.44 | ||
| 7 | 67288-92E20 Washer
SKU: 67288-92E20 Weight: 0.060000 Brand: Price: $ 2.49 |
Washer | 3 | $ 2.49 | ||
| 8 | 67295-92E00 Screw
SKU: 67295-92E00 Weight: 0.060000 Brand: Price: $ 2.49 |
Screw | 2 | $ 2.49 | ||
| 9 | 67296-92E70 Screw
SKU: 67296-92E70 Weight: 0.060000 Brand: Price: $ 2.32 |
Screw | 1 | $ 2.32 | ||
| 10 | 67288-92E40 Washer
SKU: 67288-92E40 Weight: 0.100000 Brand: Price: $ 2.49 |
Washer | 1 | $ 2.49 | ||
| 11 | 67257-92E00 Lever Cap
SKU: 67257-92E00 Weight: 0.200000 Brand: Price: $ 9.34 |
Lever Cap | 1 | $ 9.34 | ||
| 12 | 67251-93J00 Handle Lever
SKU: 67251-93J00 Weight: 1.000000 Brand: Price: $ 118.36 |
Handle Lever | 1 | $ 118.36 | ||
| 13 | 67296-92E60 Screw
SKU: 67296-92E60 Weight: 0.100000 Brand: Price: $ 3.13 |
Screw | 2 | $ 3.13 | ||
| 14 | 67288-92E30 Washer
SKU: 67288-92E30 Weight: 0.060000 Brand: Price: $ 2.49 |
Washer | 2 | $ 2.49 | ||
| 15 | 67253-92E00 Washer
SKU: 67253-92E00 Weight: 0.060000 Brand: Price: $ 5.38 |
Washer | 1 | $ 5.38 | ||
| 16 | 36890-93J00 Wire Harness
SKU: 36890-93J00 Weight: 0.200000 Brand: Price: $ 76.27 |
Wire Harness | 1 | $ 76.27 | ||
| 17 | 67281-93J00 Decal
SKU: 67281-93J00 Weight: 0.060000 Brand: Price: $ 12.13 |
Decal | 1 | $ 12.13 | ||
| 18 | 67296-92E30 Screw
SKU: 67296-92E30 Weight: 0.060000 Brand: Price: $ 3.13 |
Screw | 4 | $ 3.13 | ||
| 19 | 09160-05024 Washer (5.5x16x1.5)
SKU: 09160-05024 Weight: 0.060000 Brand: Price: $ 1.54 |
Washer (5.5x16x1.5) | 4 | $ 1.54 | ||
| 21 | 67275-95600 Cable End
SKU: 67275-95600 Weight: 0.060000 Brand: Price: $ 8.02 |
Cable End | 2 | $ 8.02 | ||
| 22 | 67273-95600 Spacer
SKU: 67273-95600 Weight: 0.060000 Brand: Price: $ 3.88 |
Spacer | 1 | $ 3.88 | ||
| 23 | 67273-92E00 Grommet
SKU: 67273-92E00 Weight: 0.060000 Brand: Price: $ 14.81 |
Grommet | 1 | $ 14.81 | ||
| 24 | 67274-92E00 Flange
SKU: 67274-92E00 Weight: 0.250000 Brand: Price: $ 34.99 |
Flange | 2 | $ 34.99 | ||
| 25 | 67296-95610 Screw
SKU: 67296-95610 Weight: 0.060000 Brand: Price: $ 2.85 |
Screw | 4 | $ 2.85 | ||
| 26 | 67271-92E00 Cover
SKU: 67271-92E00 Weight: 0.060000 Brand: Price: $ 7.59 |
Cover | 1 | $ 7.59 | ||
| 27 | 67211-93J00 Top Binnacle Cover
SKU: 67211-93J00 Weight: 0.500000 Brand: Price: $ 51.06 |
Top Binnacle Cover | 1 | $ 51.06 | ||
| 28 | 67296-92E70 Screw
SKU: 67296-92E70 Weight: 0.060000 Brand: Price: $ 2.32 |
Screw | 2 | $ 2.32 | ||
| 29 | 67500-93J00 Single Binnacle Box Spacer
SKU: 67500-93J00 Weight: 0.320000 Brand: Price: $ 18.18 |
Single Binnacle Box Spacer | 1 | $ 18.18 | ||
| 30 | 09125-05135 Screw (5x65)
SKU: 09125-05135 Weight: 0.125000 Brand: Price: $ 3.24 |
Screw (5x65) | 4 | $ 3.24 | ||
| 31 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 4 | $ 1.70 | ||
| 32 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
