Suzuki DF 175 Parts Listings 2006 to S/N 17502F-11XXXX 2006 to S/N 17502Z-11XXXX

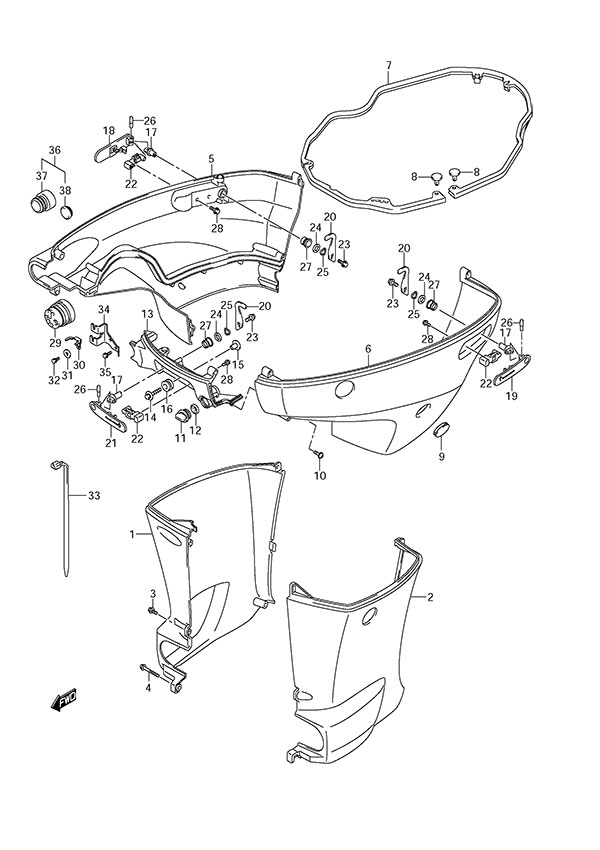

Fig. 39 - Side Cover

Ref# Part Number Description Req Qty* Price Each Order Remarks
1-1 61131-96J03-0EP Starboard Oil Pan Cover (L) 1 $ 220.31
w/Transom (L)
1-2 61131-96J13-0EP Starboard Oil Pan Cover (X) 1 $ 195.10
w/Transom (X)
2-1 61141-96J03-0EP Port Oil Pan Cover (L) 1 $ 220.31
w/Transom (L)
2-2 61141-96J13-0EP Port Oil Pan Cover (X) 1 $ 179.06
w/Transom (X)
3-1 09139-06135 Oil Pan Cover Screw (6x17) 3 $ 5.02
w/Transom (L)
3-2 09139-06135 Oil Pan Cover Screw (6x17) 5 $ 5.02
w/Transom (X)
4 09139-06147 Oil Pan Cover Screw (6x114) 1 $ 22.73
w/Transom (L)
5 61811-96J20-0EP Starboard Side Cover 1 $ 564.03
6 61821-96J11-0EP Port Side Cover 1 $ 545.21
7 61134-96J02 Side Cover Seal 1 $ 105.12
6 61817-89J01 Side Cover Plug 1 $ 5.95
10 09139-06249 SCREW 8 $ 1.96
11 17913-93J00 Water Flush Plug 1 $ 4.56
12 17914-93J01 Water Flush Plug Gasket 1 $ 2.28
13 61831-96J10-0EP Front Panel 1 $ 197.03
14 09116-08174 Bolt (8x38) 2 $ 4.19
15 09169-08039 Washer (8.5x30x1.5) (NLA) 2 $ 4.91

Not Available

16 09320-11023 CUSHION,FRONT P 2 $ 2.91
17 61632-93J00 Engine Cover Hook Shaft 3 $ 37.52
18 61633-96J02 Starboard Rear Hook Lever 1 $ 43.42
19 61634-96J02 Port Rear Hook Lever 1 $ 44.87
20 61641-93J10 Engine Cover Hook 3 $ 27.45
21 61645-96J02 Front Hook Lever 1 $ 44.87
22 61673-96J02 Hook Lever Latch 3 $ 8.06
23 09116-06127 Bolt (6x12) 3 $ 2.98
24 09160-13014 Washer (13.2x25x1.0) 3 $ 2.99
25 09164-14008 Wave Washer 3 $ 2.04
26 09202-04022 Hook Lever Pin 3 $ 2.82
27 09306-13007 Bushing 3 $ 2.81
28 01550-05107 BOLT 6 $ 2.33
29 61124-96J03 Remote Control Grommet 1 $ 16.63
30 67343-96J00 Remocon Cable Stopper 1 $ 11.51
31 09160-06047 Washer (6.2x20x2) 1 $ 1.91
32 01570-06127 BOLT 1 $ 2.52
33 09407-25402 Clamp (L:248) 1 $ 4.73
34 67341-96J00 Remocon Cable Holder 1 $ 22.18
35 01550-06167 BOLT 2 $ 2.33
36 67300-93J01 Rigging Kit Adapter 1 $ 14.11
Optional
37 67361-93J00 Hose Adapter 1 $ 9.10
Optional
38 09250-21003 Plug 1 $ 4.39
Optional

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
