Suzuki DF 175 Parts Listings 2006 to S/N 17502F-11XXXX 2006 to S/N 17502Z-11XXXX

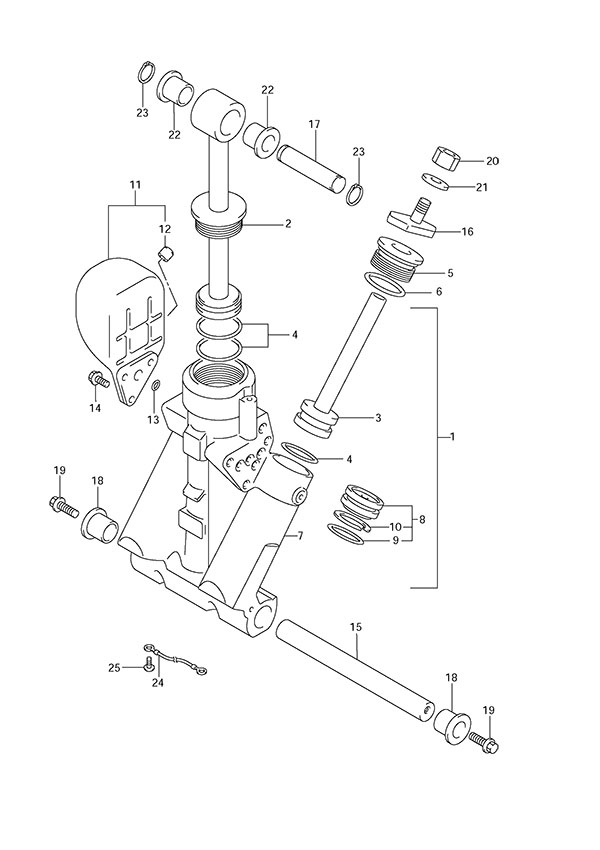

Fig. 33 - Trim Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48503-96J05 MANIFOLD SUB AS
SKU: 48503-96J05 Weight: 0.000000 Brand: Price: $ 2,575.16 |
MANIFOLD SUB AS | 1 | $ 2,575.16 | ||
| 2 | 48401-96J02 Piston Assembly
SKU: 48401-96J02 Weight: 2.000000 Brand: Price: $ 299.73 |
Piston Assembly | 1 | $ 299.73 | ||
| 3 | 48601-94900 Piston & Ram Assembly
SKU: 48601-94900 Weight: 1.000000 Brand: Price: $ 229.26 |
Piston & Ram Assembly | 2 | $ 229.26 | ||
| 4 | 48627-95E00 O-Ring Set
SKU: 48627-95E00 Weight: 0.060000 Brand: Price: $ 7.63 |
O-Ring Set | 3 | $ 7.63 | ||
| 5-1 | 48630-96J04 Trim Cylinder Head
SKU: 48630-96J04 Weight: 0.250000 Brand: Price: $ 93.25 |
Trim Cylinder Head | 2 | $ 93.25 | ||
| 5-2 | 48630-96J04 Trim Cylinder Head
SKU: 48630-96J04 Weight: 0.250000 Brand: Price: $ 93.25 |
Trim Cylinder Head | 2 | $ 93.25 | DF175T: S/N 881528 Newer DF175Z: S/N 880237 Newer | |
| 6 | 48633-94900 O-Ring Set (Pack of 2)
SKU: 48633-94900 Weight: 0.060000 Brand: Price: $ 5.49 |
O-Ring Set (Pack of 2) | 2 | $ 5.49 | ||
| 7-1 | 48641-96J00 PTT Manifold (NLA)
SKU: 48641-96J00 Weight: 0.100000 Brand: Price: $ 890.72 |
PTT Manifold (NLA) | 1 | $ 890.72 | ||
| 7-2 | 48641-96J03 PTT Manifold
SKU: 48641-96J03 Weight: 5.000000 Brand: Price: $ 965.72 |
PTT Manifold | 1 | $ 965.72 | DF175T: S/N 881528 Newer DF175Z: S/N 880237 Newer | |
| 8 | 48650-94900 Free Piston
SKU: 48650-94900 Weight: 0.260000 Brand: Price: $ 79.39 |
Free Piston | 2 | $ 79.39 | ||
| 9 | 48405-87D00 Tilt O-Ring Set
SKU: 48405-87D00 Weight: 0.060000 Brand: Price: $ 5.35 |
Tilt O-Ring Set | 2 | $ 5.35 | ||
| 10 | 48615-97E00 Piston Ring Set
SKU: 48615-97E00 Weight: 0.060000 Brand: Price: $ 8.46 |
Piston Ring Set | 2 | $ 8.46 | ||
| 11 | 48570-95E01 Reservoir Assembly
SKU: 48570-95E01 Weight: 0.340000 Brand: Price: $ 174.79 |
Reservoir Assembly | 1 | $ 174.79 | ||
| 12 | 48572-95E00 Cap
SKU: 48572-95E00 Weight: 0.060000 Brand: Price: $ 19.06 |
Cap | 1 | $ 19.06 | ||
| 13 | 48588-94900 O-Ring (Pack of 6)
SKU: 48588-94900 Weight: 0.060000 Brand: Price: $ 4.95 |
O-Ring (Pack of 6) | 1 | $ 4.95 | ||
| 14 | 48861-92J01 Reservoir Bolt
SKU: 48861-92J01 Weight: 0.060000 Brand: Price: $ 10.88 |
Reservoir Bolt | 3 | $ 10.88 | ||
| 15 | 48121-92J00 Tilt Cylinder Lower Shaft
SKU: 48121-92J00 Weight: 0.500000 Brand: Price: $ 97.68 |
Tilt Cylinder Lower Shaft | 1 | $ 97.68 | ||
| 16 | 48311-96J10 Trim Cylinder Ram Pad
SKU: 48311-96J10 Weight: 0.125000 Brand: Price: $ 41.00 |
Trim Cylinder Ram Pad | 2 | $ 41.00 | ||
| 17 | 48321-87D03 Tilt Cylinder Upper Shaft
SKU: 48321-87D03 Weight: 0.500000 Brand: Price: $ 23.89 |
Tilt Cylinder Upper Shaft | 1 | $ 23.89 | ||
| 18 | 48326-95E00 Tilt Cylinder Lower Bushing
SKU: 48326-95E00 Weight: 0.060000 Brand: Price: $ 5.18 |
Tilt Cylinder Lower Bushing | 2 | $ 5.18 | ||
| 19 | 09116-10179 Bolt (10x35)
SKU: 09116-10179 Weight: 0.125000 Brand: Price: $ 11.01 |
Bolt (10x35) | 2 | $ 11.01 | ||
| 20 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 2 | $ 2.04 | ||
| 21 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 2 | $ 1.86 | ||
| 22 | 09306-17001 Bushing
SKU: 09306-17001 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 2 | $ 2.81 | ||
| 23 | 09380-17009 Circlip
SKU: 09380-17009 Weight: 0.060000 Brand: Price: $ 2.07 |
Circlip | 2 | $ 2.07 | ||
| 24 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | PTT to Anode | |
| 25 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 |
