Suzuki DF 175 Parts Listings 2006 to S/N 17502F-11XXXX 2006 to S/N 17502Z-11XXXX

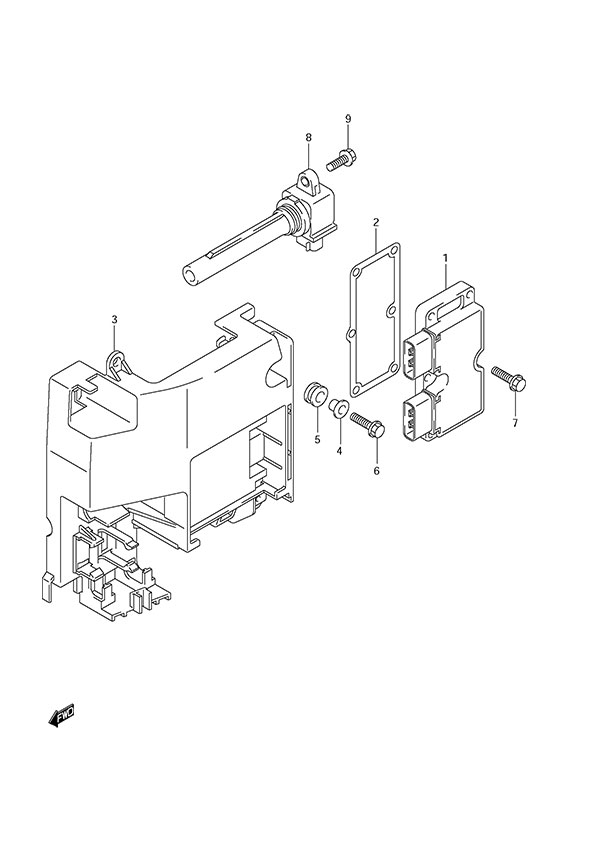

Fig. 27 - Rectifier/Ignition Coil

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 32800-96J00 Rectifier & Regulator Assembly 1 $ 281.04
2 32805-96J00 Rectifier & Regulator Gasket 1 $ 4.43
3 32890-96J00 Electric Parts Holder 1 $ 28.66
4 09169-06062 Washer (6.3x17x1.6) 2 $ 2.52
5 09320-09016 Cushion 4 $ 1.97
6 01550-06257 BOLT 2 $ 2.33
7 01550-06257 BOLT 6 $ 2.33
8 33410-93J00 Ignition Coil Assembly 4 $ 139.04
9 01547-06207 BOLT 6 X 20 4 $ 2.04

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
