Suzuki DF 140 Parts Listings - 2002 to 2011
S/N 14001F-251001 to 14002F-11XXXX
S/N 14001Z-251001 to 14002Z-11XXXX

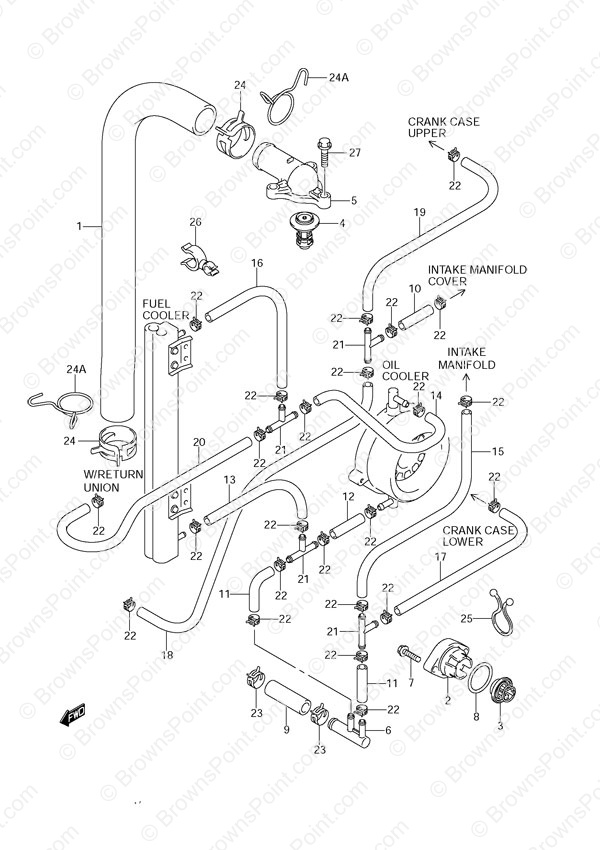

Fig. 15 - Thermostat
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11196-90J00 Water Return Hose
SKU: 11196-90J00 Weight: 0.520000 Brand: Price: $ 29.11 |
Water Return Hose | 1 | $ 29.11 | ||
| 2 | 17611-90J00 Water Pressure Valve Cover
SKU: 17611-90J00 Weight: 0.200000 Brand: Price: $ 34.00 |
Water Pressure Valve Cover | 1 | $ 34.00 | ||
| 3 | 17660-90J00 Water Pressure Valve
SKU: 17660-90J00 Weight: 0.060000 Brand: Price: $ 19.16 |
Water Pressure Valve | 1 | $ 19.16 | ||
| 4-1 | 17670-90J01 Thermostat (60c)
SKU: 17670-90J01 Weight: 0.250000 Brand: Price: $ 62.65 |
Thermostat (60c) | 1 | $ 62.65 | Standard | |
| 4-2 | 17670-90J11 Thermostat (71c)
SKU: 17670-90J11 Weight: 0.120000 Brand: Price: $ 62.65 |
Thermostat (71c) | 1 | $ 62.65 | Optional | |
| 5 | 17681-90J02 Thermostat Cover
SKU: 17681-90J02 Weight: 0.250000 Brand: Price: $ 44.96 |
Thermostat Cover | 1 | $ 44.96 | ||
| 6 | 17711-90J00 Water Hose 3 Way
SKU: 17711-90J00 Weight: 0.060000 Brand: Price: $ 4.14 |
Water Hose 3 Way | 1 | $ 4.14 | ||
| 7 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
| 8 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 10 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->50 INMF Cover to 3 Way | |
| 11-1 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 2 | $ 7.60 | L:600->50 3 Way to 3 Way | |
| 11-2 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 2 | $ 7.60 | L:600->70 3 Way to 3 Way DF140T:682149 Newer DF140Z:680234 Newer | |
| 12 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->50 3 Way to Oil Cooler | |
| 13 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->160 3 Way to Fuel Cooler | |
| 14 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->160 Oil Cooler to 3 Way | |
| 15 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->200 3 Way to INMF | |
| 16 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->230 Fuel Cooler to 3 Way | |
| 17 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->370 3 Way to CRKC Lower | |
| 18 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->370 3 way to Indicator | |
| 19 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->450 CRKC Upper to 3 Way | |
| 20 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->480 3 Way to Holder | |
| 21 | 09367-06002 3 Way
SKU: 09367-06002 Weight: 0.060000 Brand: Price: $ 2.65 |
3 Way | 4 | $ 2.65 | ||
| 22 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 24 | $ 2.09 | ||
| 23 | 09401-14409 Clip
SKU: 09401-14409 Weight: 0.200000 Brand: Price: $ 1.58 |
Clip | 2 | $ 1.58 | ||
| 24 | 09401-31407 Clip
SKU: 09401-31407 Weight: 0.060000 Brand: Price: $ 6.08 |
Clip | 2 | $ 6.08 | ||
| 24A | 09401-31201 Clip
SKU: 09401-31201 Weight: 0.060000 Brand: Price: $ 6.36 |
Clip | 2 | $ 6.36 | 2003 2004 | |
| 25 | 09408-00024 Clamp
SKU: 09408-00024 Weight: 0.060000 Brand: Price: $ 1.52 |
Clamp | 1 | $ 1.52 | ||
| 26 | 09408-00069 Clamp (NLA)
SKU: 09408-00069 Weight: 0.100000 Brand: Price: $ 1.81 |
Clamp (NLA) | 1 | $ 1.81 | ||
| 27 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
