Suzuki DF 175 Parts Listings 2006 to S/N 17502F-11XXXX 2006 to S/N 17502Z-11XXXX

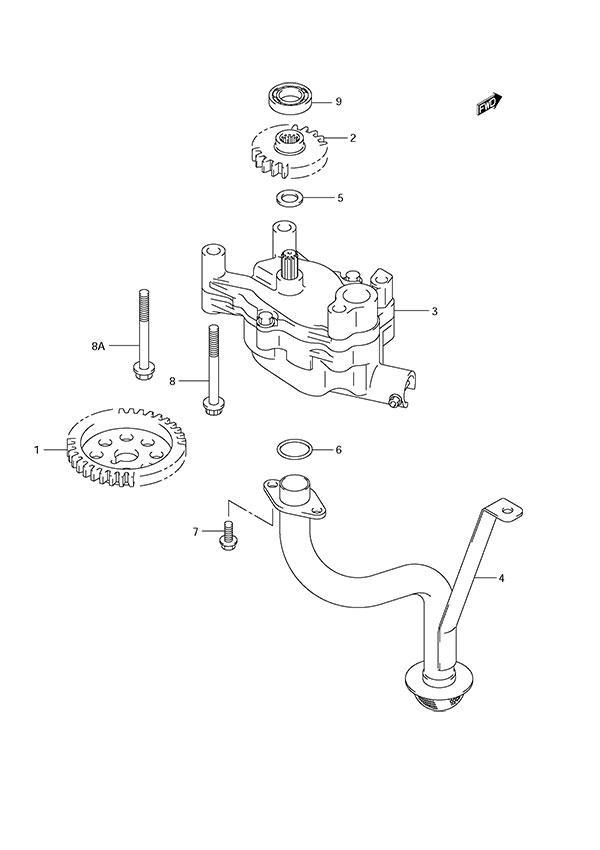

Fig. 17 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12632-96J00 Oil Pump Drive Gear
SKU: 12632-96J00 Weight: 0.100000 Brand: Price: $ 62.36 |
Oil Pump Drive Gear | 1 | $ 62.36 | ||
| 2 | 16113-96J00 Oil Pump Driven Gear
SKU: 16113-96J00 Weight: 0.100000 Brand: Price: $ 40.01 |
Oil Pump Driven Gear | 1 | $ 40.01 | ||
| 3 | 16400-96J00 Oil Pump Assembly
SKU: 16400-96J00 Weight: 2.000000 Brand: Price: $ 224.08 |
Oil Pump Assembly | 1 | $ 224.08 | ||
| 4-1 | 16520-96J01 Oil Pump Strainer
SKU: 16520-96J01 Weight: 0.100000 Brand: Price: $ 49.79 |
Oil Pump Strainer | 1 | $ 49.79 | Requires Ref# 10 | |
| 4-2 | 16520-96J01 Oil Pump Strainer
SKU: 16520-96J01 Weight: 0.100000 Brand: Price: $ 49.79 |
Oil Pump Strainer | 1 | $ 49.79 | DF175T: S/N 881862 Newer DF175Z: S/N 880305 Newer | |
| 5 | 09181-12167 Thrust Washer
SKU: 09181-12167 Weight: 0.100000 Brand: Price: $ 2.27 |
Thrust Washer | 1 | $ 2.27 | ||
| 6 | 09280-22020 O-Ring
SKU: 09280-22020 Weight: 0.060000 Brand: Price: $ 3.39 |
O-Ring | 1 | $ 3.39 | ||
| 7 | 01550-0616A BOLT
SKU: 01550-0616A Weight: 0.100000 Brand: Price: $ 1.97 |
BOLT | 3 | $ 1.97 | ||
| 8 | 07120-0870A BOLT
SKU: 07120-0870A Weight: 0.100000 Brand: Price: $ 3.37 |
BOLT | 4 | $ 3.37 | DF175T: S/N 781849 Older DF175Z: S/N 780358 Older | |
| 8A | 01550-0870A BOLT
SKU: 01550-0870A Weight: 0.250000 Brand: Price: $ 3.74 |
BOLT | 4 | $ 3.74 | DF175T: S/N 781850 Newer DF175Z: S/N 780359 Newer | |
| 9 | 08110-60020 B1 15X32X9 BEAR
SKU: 08110-60020 Weight: 0.200000 Brand: Price: $ 16.29 |
B1 15X32X9 BEAR | 1 | $ 16.29 | ||
| 10 | 16910-96J01 Oil Level Gauge
SKU: 16910-96J01 Weight: 0.250000 Brand: Price: $ 18.79 |
Oil Level Gauge | 1 | $ 18.79 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
