Suzuki DF 175 Parts Listings 2006 to S/N 17502F-11XXXX 2006 to S/N 17502Z-11XXXX

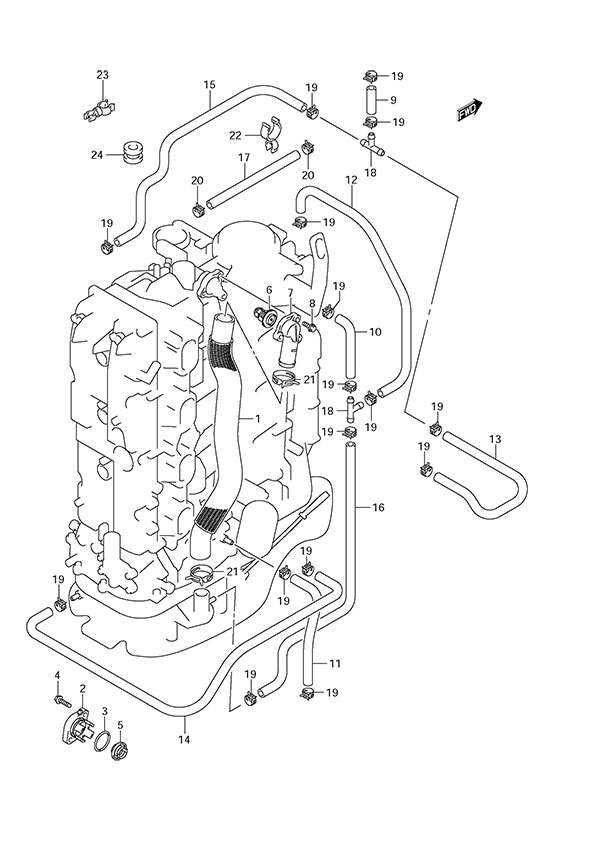

Fig. 15 - Thermostat
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11196-96J00 Water Return Hose
SKU: 11196-96J00 Weight: 0.500000 Brand: Price: $ 46.01 |
Water Return Hose | 1 | $ 46.01 | ||
| 2 | 17611-90J00 Water Pressure Valve Cover
SKU: 17611-90J00 Weight: 0.200000 Brand: Price: $ 34.00 |
Water Pressure Valve Cover | 1 | $ 34.00 | ||
| 3 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 4 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
| 5 | 17660-90J00 Water Pressure Valve
SKU: 17660-90J00 Weight: 0.060000 Brand: Price: $ 19.16 |
Water Pressure Valve | 1 | $ 19.16 | ||
| 6-1 | 17670-90J01 Thermostat (60c)
SKU: 17670-90J01 Weight: 0.250000 Brand: Price: $ 62.65 |
Thermostat (60c) | 1 | $ 62.65 | Standard | |
| 6-2 | 17670-90J11 Thermostat (71c)
SKU: 17670-90J11 Weight: 0.120000 Brand: Price: $ 62.65 |
Thermostat (71c) | 1 | $ 62.65 | Optional | |
| 7 | 17681-96J00 Thermostat Cover
SKU: 17681-96J00 Weight: 0.200000 Brand: Price: $ 53.49 |
Thermostat Cover | 1 | $ 53.49 | ||
| 8 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 9 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | 3 Way to Balancer Cover Water Jacket L:600->40 | |
| 10 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Cooler to 3 Way L:600->90 | |
| 11 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Block to Indicator L:600->220 | |
| 12 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Balancer Cover Water Jacket to 3 Way L:600->240 | |
| 13 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | 3 Way to Cooler L:600->380 | |
| 14 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Holder to Block L:600->540 | |
| 15 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Oil Pan to 3 Way | |
| 16 | 09352-50006-00B Hose (5x9x2000)
SKU: 09352-50006-00B Weight: 0.250000 Brand: Price: $ 17.89 |
Hose (5x9x2000) | 1 | $ 17.89 | 3 Way to Holder L:2000->700 | |
| 17 | 09352-90134-600 Hose (9x13x600)
SKU: 09352-90134-600 Weight: 0.160000 Brand: Price: $ 11.50 |
Hose (9x13x600) | 1 | $ 11.50 | L:600->340 | |
| 18 | 09367-06002 3 Way
SKU: 09367-06002 Weight: 0.060000 Brand: Price: $ 2.65 |
3 Way | 2 | $ 2.65 | ||
| 19 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 16 | $ 2.09 | ||
| 20 | 09401-13425 Clip
SKU: 09401-13425 Weight: 0.125000 Brand: Price: $ 3.16 |
Clip | 2 | $ 3.16 | ||
| 21 | 09401-31407 Clip
SKU: 09401-31407 Weight: 0.060000 Brand: Price: $ 6.08 |
Clip | 2 | $ 6.08 | ||
| 22 | 09408-00060 Clamp (NLA)
SKU: 09408-00060 Weight: 0.100000 Brand: Price: $ 1.54 |
Clamp (NLA) | 1 | $ 1.54 | ||
| 23 | 09408-00078 Clamp
SKU: 09408-00078 Weight: 0.100000 Brand: Price: $ 3.90 |
Clamp | 1 | $ 3.90 | S/N 680083 Older | |
| 24 | 09320-09059 Cushion
SKU: 09320-09059 Weight: 0.060000 Brand: Price: $ 3.31 |
Cushion | 1 | $ 3.31 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
