Suzuki DF 175 Parts Listings 2006 to 2008

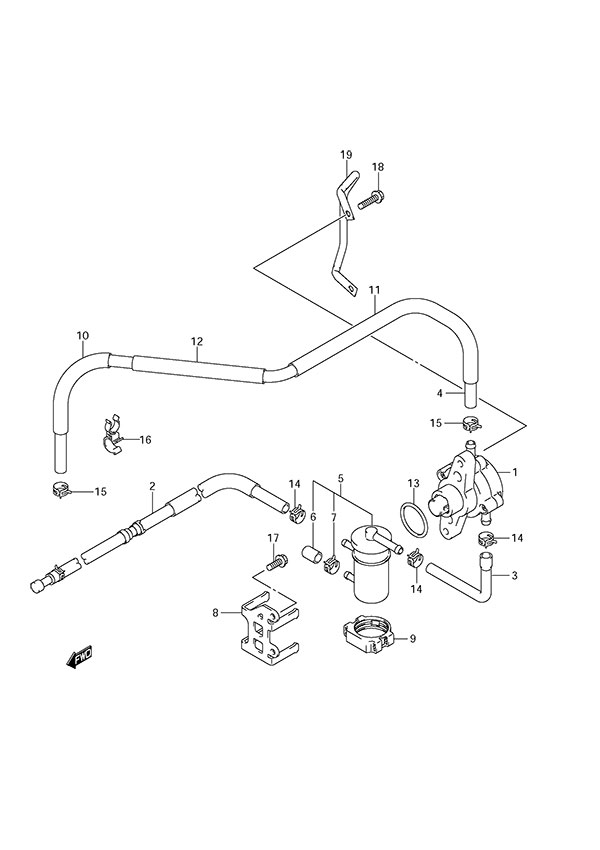

Fig. 13 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-96J01 Fuel Pump Assembly
SKU: 15100-96J01 Weight: 0.500000 Brand: Price: $ 179.71 |
Fuel Pump Assembly | 1 | $ 179.71 | ||
| 2 | 15190-96J24 Fuel Hose
SKU: 15190-96J24 Weight: 0.750000 Brand: Price: $ 100.15 |
Fuel Hose | 1 | $ 100.15 | Connector to Filter | |
| 3 | 15192-96J11 Fuel Hose
SKU: 15192-96J11 Weight: 0.060000 Brand: Price: $ 11.07 |
Fuel Hose | 1 | $ 11.07 | Filter to Pump | |
| 4 | 15193-96J11 Fuel Hose
SKU: 15193-96J11 Weight: 0.220000 Brand: Price: $ 27.80 |
Fuel Hose | 1 | $ 27.80 | Pump to Separator Requires Ref# 20, 21 22 | |
| 5 | 15410-96J00 Fuel Filter
SKU: 15410-96J00 Weight: 0.100000 Brand: Price: $ 17.76 |
Fuel Filter | 1 | $ 17.76 | ||
| 6 | 15419-87J00 Fuel Filter Cap
SKU: 15419-87J00 Weight: 0.060000 Brand: Price: $ 7.40 |
Fuel Filter Cap | 1 | $ 7.40 | ||
| 7 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
| 8 | 15421-96J00 Fuel Filter Bracket
SKU: 15421-96J00 Weight: 0.250000 Brand: Price: $ 8.36 |
Fuel Filter Bracket | 1 | $ 8.36 | ||
| 9 | 15422-96J01 Fuel Filter Clamp
SKU: 15422-96J01 Weight: 0.060000 Brand: Price: $ 6.41 |
Fuel Filter Clamp | 1 | $ 6.41 | ||
| 10 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:610->230 | |
| 11 | 18498-96J21 Hose Protector (13.5x16.5x370)
SKU: 18498-96J21 Weight: 0.250000 Brand: Price: $ 6.62 |
Hose Protector (13.5x16.5x370) | 1 | $ 6.62 | ||
| 12 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:610->280 | |
| 13 | 09280-33004 O-Ring
SKU: 09280-33004 Weight: 0.060000 Brand: Price: $ 2.27 |
O-Ring | 1 | $ 2.27 | ||
| 14 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 3 | $ 2.09 | ||
| 15 | 09401-13424 Clip
SKU: 09401-13424 Weight: 0.060000 Brand: Price: $ 2.16 |
Clip | 2 | $ 2.16 | ||
| 16 | 09408-00105 Clamp
SKU: 09408-00105 Weight: 0.100000 Brand: Price: $ 4.27 |
Clamp | 2 | $ 4.27 | ||
| 17 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 18-1 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 18-2 | 09103-06211 Bolt (6x25)
SKU: 09103-06211 Weight: 0.060000 Brand: Price: $ 2.88 |
Bolt (6x25) | 2 | $ 2.88 | DF175T: S/N 881157 Newer DF175Z: S/N 880191 Newer | |
| 19 | 13144-96J00 Fuel Pump Guard (NLA)
SKU: 13144-96J00 Weight: 0.100000 Brand: Price: $ 21.18 |
Fuel Pump Guard (NLA) | 1 | $ 21.18 | DF175T: S/N 881157 Newer DF175Z: S/N 880191 Newer | |
| 20 | 15194-96J11 Fuel Hose
SKU: 15194-96J11 Weight: 0.500000 Brand: Price: $ 31.27 |
Fuel Hose | 1 | $ 31.27 | Not Shown | |
| 21 | 15831-96J00 2 Way Union
SKU: 15831-96J00 Weight: 0.100000 Brand: Price: $ 7.13 |
2 Way Union | 1 | $ 7.13 | Not Shown | |
| 22 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 2 | $ 2.09 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
