Suzuki DF 175 Parts Listings 2006 to S/N 17502F-11XXXX 2006 to S/N 17502Z-11XXXX

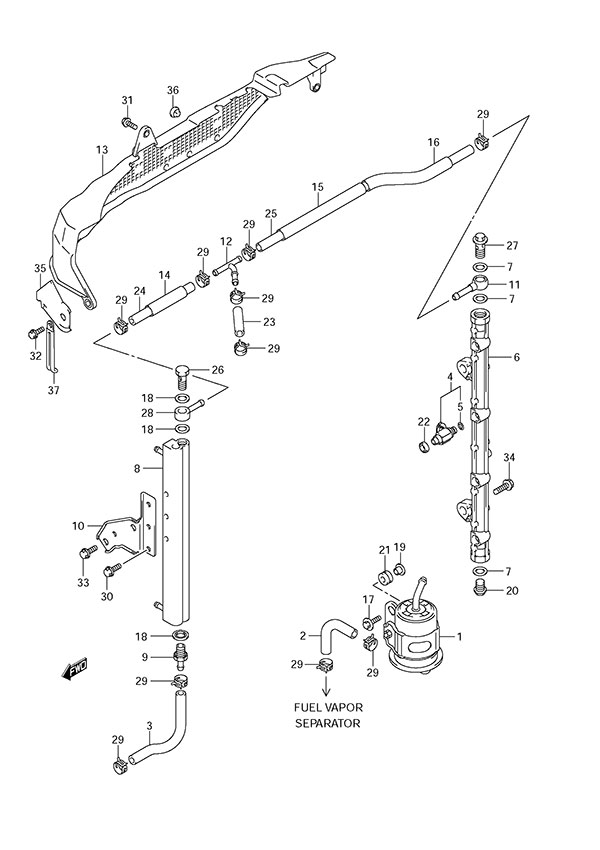

Fig. 12 - Fuel Injector
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 15440-96J00 H/P Fuel Filter
SKU: 15440-96J00 Weight: 0.860000 Brand: Price: $ 111.61 |
H/P Fuel Filter | 1 | $ 111.61 | ||
| 1-2 | 15440-96J01 H/P Fuel Filter
SKU: 15440-96J01 Weight: 0.860000 Brand: Price: $ 111.61 |
H/P Fuel Filter | 1 | $ 111.61 | DF175T: S/N 110093 Newer DF175Z: S/N 110012 Newer | |
| 2 | 15681-87L00 Fuel Hose
SKU: 15681-87L00 Weight: 0.200000 Brand: Price: $ 33.69 |
Fuel Hose | 1 | $ 33.69 | Separator to Filter | |
| 3 | 15681-96J11 Fuel Hose
SKU: 15681-96J11 Weight: 0.500000 Brand: Price: $ 17.27 |
Fuel Hose | 1 | $ 17.27 | Cooler to Separator | |
| 4 | 15710-96J00 Fuel Injector
SKU: 15710-96J00 Weight: 0.250000 Brand: Price: $ 214.11 |
Fuel Injector | 4 | $ 214.11 | ||
| 5 | 15717-16G00 O-Ring
SKU: 15717-16G00 Weight: 0.060000 Brand: Price: $ 10.51 |
O-Ring | 4 | $ 10.51 | ||
| 6 | 15751-96J00 Delivery Pipe
SKU: 15751-96J00 Weight: 0.100000 Brand: Price: $ 158.64 |
Delivery Pipe | 1 | $ 158.64 | ||
| 7 | 15762-93J00 Delivery Pipe Gasket
SKU: 15762-93J00 Weight: 0.060000 Brand: Price: $ 1.90 |
Delivery Pipe Gasket | 3 | $ 1.90 | ||
| 8 | 15770-96J00 Fuel Cooler
SKU: 15770-96J00 Weight: 1.000000 Brand: Price: $ 107.52 |
Fuel Cooler | 1 | $ 107.52 | ||
| 9 | 15773-90J10 UNION,FUEL HOSE
SKU: 15773-90J10 Weight: 0.000000 Brand: Price: $ 18.53 |
UNION,FUEL HOSE | 1 | $ 18.53 | ||
| 10 | 15790-96J00 Fuel Cooler Bracket
SKU: 15790-96J00 Weight: 0.100000 Brand: Price: $ 11.58 |
Fuel Cooler Bracket | 1 | $ 11.58 | ||
| 11 | 15830-77EA0 Delivery Pipe Union
SKU: 15830-77EA0 Weight: 0.100000 Brand: Price: $ 15.22 |
Delivery Pipe Union | 1 | $ 15.22 | ||
| 12 | 15830-99E00 3 Way Union
SKU: 15830-99E00 Weight: 0.060000 Brand: Price: $ 17.98 |
3 Way Union | 1 | $ 17.98 | ||
| 13 | 15851-96J02 GUARD,FUEL HOSE
SKU: 15851-96J02 Weight: 0.000000 Brand: Price: $ 33.83 |
GUARD,FUEL HOSE | 1 | $ 33.83 | ||
| 14 | 18498-99E21 Hose Protector (L:450)
SKU: 18498-99E21 Weight: 0.125000 Brand: Price: $ 9.24 |
Hose Protector (L:450) | 1 | $ 9.24 | L:450->70 | |
| 15 | 18498-93J01 Fuel Hose Protector (L:340)
SKU: 18498-93J01 Weight: 0.100000 Brand: Price: $ 7.78 |
Fuel Hose Protector (L:340) | 1 | $ 7.78 | L:340->220 | |
| 16 | 18498-99E21 Hose Protector (L:450)
SKU: 18498-99E21 Weight: 0.125000 Brand: Price: $ 9.24 |
Hose Protector (L:450) | 1 | $ 9.24 | L:450->120 | |
| 17 | 09116-06202 Bolt w/Washer (6x25)
SKU: 09116-06202 Weight: 0.250000 Brand: Price: $ 3.54 |
Bolt w/Washer (6x25) | 2 | $ 3.54 | ||
| 18 | 09168-12013 Gasket
SKU: 09168-12013 Weight: 0.060000 Brand: Price: $ 3.46 |
Gasket | 3 | $ 3.46 | ||
| 19 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 2 | $ 2.52 | ||
| 20 | 09247-14041 Delivery Pipe Plug
SKU: 09247-14041 Weight: 0.100000 Brand: Price: $ 4.27 |
Delivery Pipe Plug | 1 | $ 4.27 | ||
| 21 | 09320-08501 Cushion
SKU: 09320-08501 Weight: 0.060000 Brand: Price: $ 3.28 |
Cushion | 2 | $ 3.28 | ||
| 22 | 09320-08062 Cushion
SKU: 09320-08062 Weight: 0.060000 Brand: Price: $ 13.65 |
Cushion | 4 | $ 13.65 | ||
| 23-1 | 09356-75137-600 Fuel Hose (L:600)
SKU: 09356-75137-600 Weight: 0.060000 Brand: Price: $ 110.18 |
Fuel Hose (L:600) | 1 | $ 110.18 | 3 Way to Cooler L:600->50 | |
| 23-2 | 09343-75002-600 Hose (7.5x13.5x600)
SKU: 09343-75002-600 Weight: 0.250000 Brand: Price: $ 34.42 |
Hose (7.5x13.5x600) | 1 | $ 34.42 | 3 Way to Cooler DF175T: S/N 110001 Newer DF175Z: S/N 110001 Newer | |
| 24-1 | 09356-75137-600 Fuel Hose (L:600)
SKU: 09356-75137-600 Weight: 0.060000 Brand: Price: $ 110.18 |
Fuel Hose (L:600) | 1 | $ 110.18 | Filter to 3 Way L:600->120 | |
| 24-2 | 09343-75002-600 Hose (7.5x13.5x600)
SKU: 09343-75002-600 Weight: 0.250000 Brand: Price: $ 34.42 |
Hose (7.5x13.5x600) | 1 | $ 34.42 | Filter to 3 Way DF175T: S/N 110001 Newer DF175Z: S/N 110001 Newer | |
| 25-1 | 09356-75137-600 Fuel Hose (L:600)
SKU: 09356-75137-600 Weight: 0.060000 Brand: Price: $ 110.18 |
Fuel Hose (L:600) | 1 | $ 110.18 | 3 Way to Delivery Pipe L:600->430 | |
| 25-2 | 09343-75002-600 Hose (7.5x13.5x600)
SKU: 09343-75002-600 Weight: 0.250000 Brand: Price: $ 34.42 |
Hose (7.5x13.5x600) | 1 | $ 34.42 | 3 Way to Delivery Pipe DF175T: S/N 110001 Newer DF175Z: S/N 110001 Newer | |
| 26 | 09360-12008 Union Bolt
SKU: 09360-12008 Weight: 0.060000 Brand: Price: $ 9.81 |
Union Bolt | 1 | $ 9.81 | ||
| 27 | 09360-14009 Delivery Pipe Union Bolt
SKU: 09360-14009 Weight: 0.100000 Brand: Price: $ 12.28 |
Delivery Pipe Union Bolt | 1 | $ 12.28 | ||
| 28 | 09363-08004 Union
SKU: 09363-08004 Weight: 0.060000 Brand: Price: $ 16.69 |
Union | 1 | $ 16.69 | ||
| 29 | 09401-11425 Clip
SKU: 09401-11425 Weight: 0.060000 Brand: Price: $ 3.46 |
Clip | 10 | $ 3.46 | ||
| 30 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 31 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 32 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 33 | 01550-08167 BOLT
SKU: 01550-08167 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 2 | $ 2.84 | ||
| 34 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 2 | $ 2.82 | ||
| 35 | 15852-96J00 Fuel Hose Guard Guide
SKU: 15852-96J00 Weight: 0.500000 Brand: Price: $ 16.38 |
Fuel Hose Guard Guide | 1 | $ 16.38 | ||
| 36 | 09321-08025 CUSHION
SKU: 09321-08025 Weight: 0.000000 Brand: Price: $ 2.06 |
CUSHION | 3 | $ 2.06 | ||
| 37 | 29404-93J21 CLAMP
SKU: 29404-93J21 Weight: 0.000000 Brand: Price: $ 2.16 |
CLAMP | 1 | $ 2.16 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
