Suzuki DF 175 Parts Listings 2006 to S/N 17502F-11XXXX 2006 to S/N 17502Z-11XXXX

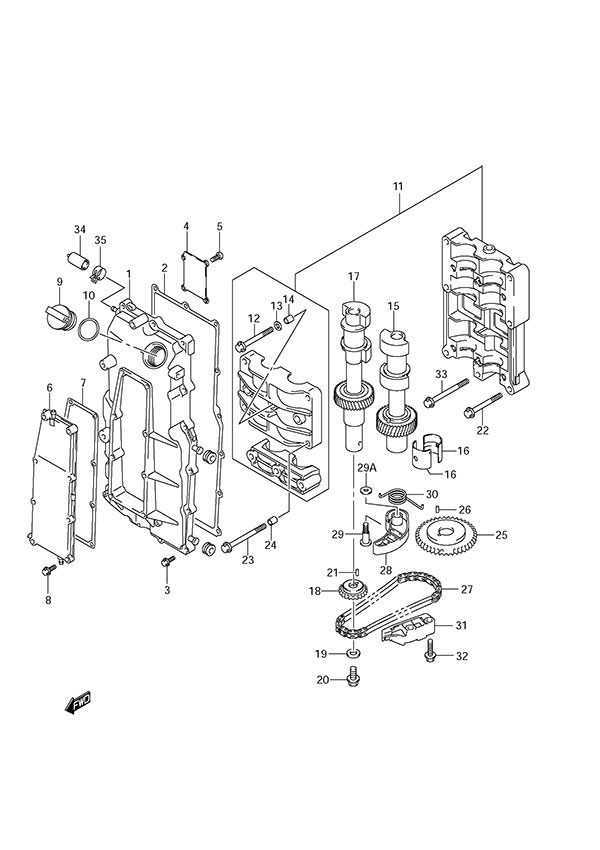

Fig. 4 - Balancer

Ref# Part Number Description Req Qty* Price Each Order Remarks
1-1 11330-96J00 Balancer Shaft Cover 1 $ 283.25

Not Available

1-2 11330-96J10 Balancer Shaft Cover 1 $ 286.34
DF175T: S/N 782633 Newer DF175Z: S/N 780481 Newer
2 11332-96J00 Balancer Cover Gasket 1 $ 34.60
3 01550-06257 BOLT 15 $ 2.33
4 11345-96J00 Balancer Cover Plate 1 $ 4.10

Not Available

DF175T: S/N 782632 Older DF175Z: S/N 780480 Older
5 02112-0612A SCREW 4 $ 1.44
DF175T: S/N 782632 Older DF175Z: S/N 780480 Older
6 11340-96J00 Balancer Water Jacket Cover 1 $ 164.92
7 11342-96J00 Balancer Water Jacket Cover Gasket 1 $ 11.24
8 01550-06257 BOLT 8 $ 2.33
9 11382-93J00 Oil Filler Cap 1 $ 5.26
10 09280-26006 O-Ring 1 $ 2.80
11 12600-96J10 Balancer Housing Assembly 1 $ 482.38
12 12643-96J00 Balancer Bolt 6 $ 6.91
13 12644-96J00 Washer 6 $ 3.00
14 04211-11129 11 X 12 DOWEL P 4 $ 1.78
15 12600-96801 Replaced by 12600-96802 1 $ 283.77

Not Available

Includes Ref# 17
16 12645-96J01 Balancer Bearing 8 $ 10.05
17 12600-96801 Replaced by 12600-96802 1 $ 283.77

Not Available

Includes Ref# 15
18 12665-96J00 Balancer Driven Sprocket 1 $ 55.41
19 09160-10039 Washer 1 $ 2.27
20 01550-1020A BOLT 1 $ 3.11
21 04221-04089 PIN 4X8 1 $ 1.11
22 09103-08414 Bolt (8x53) 2 $ 3.68
23 09103-08423 Bolt (8x80) 4 $ 4.58
24 04211-11129 11 X 12 DOWEL P 2 $ 1.78
25 12662-96J00 Balancer Drive Sprocket 1 $ 80.57
26 09202-05032 Pin (5x12) 1 $ 1.42
27 12670-96J00 Balancer Chain 1 $ 57.36
28-1 12670-96810 Bolt & Tensioner Set 1 $ 30.46
Includes Ref# 29-1
28-2 12671-96J01 Balancer Chain Tensioner 1 $ 28.08
2009 Newer
29-1 12670-96810 Bolt & Tensioner Set 1 $ 30.46
Includes Ref# 28-1
29-2 12672-96J01 Balancer Chain Tensioner Bolt 1 $ 11.23
2009 Newer
29A 09160-08079 Washer 1 $ 3.37
2009 Newer
30 12673-96J00 Balancer Chain Tensioner Spring 1 $ 9.43
31 12695-96J00 Balancer Chain Guide 1 $ 64.30
32 01550-0825A BOLT 2 $ 2.33
33 09103-08158 Bolt (8x75) 1 $ 5.89
34 09251-05006 Plug 1 $ 5.94
DF175T: S/N 780641 to 782632 DF175Z: S/N 780119 to 780480
35 09401-10411 Clip 1 $ 2.43
DF175T: S/N 780641 to 782632 DF175Z: S/N 780119 to 780480

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
