Suzuki DF 175 Parts Listings 2006 to S/N 17502F-11XXXX 2006 to S/N 17502Z-11XXXX

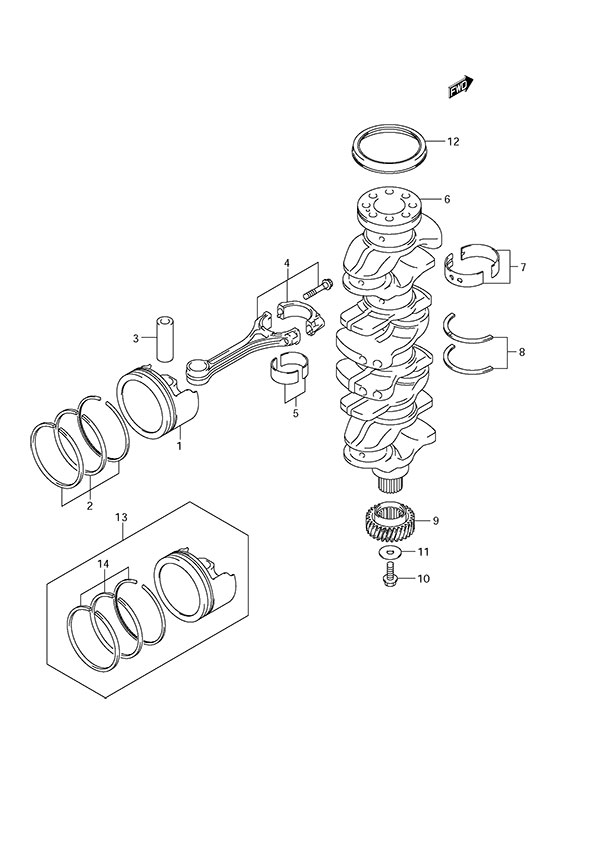

Fig. 3 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12111-96J01-0B0 Piston
SKU: 12111-96J01-0B0 Weight: 0.850000 Brand: Price: $ 200.12 |
Piston | 4 | $ 200.12 | ||
| 2 | 12140-96J00 Piston Ring Set
SKU: 12140-96J00 Weight: 0.100000 Brand: Price: $ 81.95 |
Piston Ring Set | 4 | $ 81.95 | ||
| 3 | 12151-96J00 Piston Pin
SKU: 12151-96J00 Weight: 0.260000 Brand: Price: $ 12.83 |
Piston Pin | 4 | $ 12.83 | ||
| 4 | 12160-96J10 Connecting Rod Assembly
SKU: 12160-96J10 Weight: 1.500000 Brand: Price: $ 149.61 |
Connecting Rod Assembly | 4 | $ 149.61 | ||
| 5-1 | 12100-96811-0A0 Conrod Bearing Set (Green)
SKU: 12100-96811-0A0 Weight: 0.100000 Brand: Price: $ 29.70 |
Conrod Bearing Set (Green) | 4 | $ 29.70 | ||
| 5-2 | 12100-96811-025 Conrod Bearing Set (Red) (US:0.25)
SKU: 12100-96811-025 Weight: 0.100000 Brand: Price: $ 30.70 |
Conrod Bearing Set (Red) (US:0.25) | 4 | $ 30.70 | Optional | |
| 6 | 12221-96J10 Crankshaft
SKU: 12221-96J10 Weight: 0.100000 Brand: Price: $ 2,511.12 |
Crankshaft | 1 | $ 2,511.12 | ||
| 7-1 | 12340-96J00-0B0 Crankshaft Bearing Set (Black)
SKU: 12340-96J00-0B0 Weight: 0.100000 Brand: Price: $ 30.11 |
Crankshaft Bearing Set (Black) | 5 | $ 30.11 | ||
| 7-2 | 12340-96J01-0C0 Crankshaft Bearing Set (NON)
SKU: 12340-96J01-0C0 Weight: 0.250000 Brand: Price: $ 38.53 |
Crankshaft Bearing Set (NON) | 5 | $ 38.53 | ||
| 7-3 | 12340-96J01-0D0 Crankshaft Bearing Set (Yellow)
SKU: 12340-96J01-0D0 Weight: 0.250000 Brand: Price: $ 37.10 |
Crankshaft Bearing Set (Yellow) | 5 | $ 37.10 | ||
| 7-4 | 12340-96J01-0E0 Crankshaft Bearing Set (Blue)
SKU: 12340-96J01-0E0 Weight: 0.250000 Brand: Price: $ 38.50 |
Crankshaft Bearing Set (Blue) | 5 | $ 38.50 | ||
| 7-5 | 12340-96J00-0F0 Crankshaft Bearing Set (Pink)
SKU: 12340-96J00-0F0 Weight: 0.100000 Brand: Price: $ 30.11 |
Crankshaft Bearing Set (Pink) | 5 | $ 30.11 | ||
| 7-6 | 12300-96810-0BA Crankshaft Bearing Set (Red/Black) (NLA)
SKU: 12300-96810-0BA Weight: 0.100000 Brand: Price: $ 28.34 |
Crankshaft Bearing Set (Red/Black) (NLA) | 5 | $ 28.34 | US:0.25 | |
| 7-7 | 12300-96810-0CA Crankshaft Bearing Set (Red) (NLA)
SKU: 12300-96810-0CA Weight: 0.100000 Brand: Price: $ 28.34 |
Crankshaft Bearing Set (Red) (NLA) | 5 | $ 28.34 | US:0.25 | |
| 7-8 | 12300-96810-0DA Crankshaft Bearing Set (Red/Yellow) (NLA)
SKU: 12300-96810-0DA Weight: 0.100000 Brand: Price: $ 28.34 |
Crankshaft Bearing Set (Red/Yellow) (NLA) | 5 | $ 28.34 | US:0.25 | |
| 7-9 | 12300-96811-0EA Crankshaft Bearing Set (Red/Blue) (NLA)
SKU: 12300-96811-0EA Weight: 0.250000 Brand: Price: $ 28.96 |
Crankshaft Bearing Set (Red/Blue) (NLA) | 5 | $ 28.96 | US:0.25 | |
| 7-10 | 12300-96810-0FA Crankshaft Bearing Set (Red/Pink)
SKU: 12300-96810-0FA Weight: 0.200000 Brand: Price: $ 30.11 |
Crankshaft Bearing Set (Red/Pink) | 5 | $ 30.11 | US:0.25 | |
| 8-1 | 12300-85830 Crank Thrust Bearing Set
SKU: 12300-85830 Weight: 0.080000 Brand: Price: $ 24.43 |
Crank Thrust Bearing Set | 1 | $ 24.43 | ||
| 8-2 | 12300-85830-012 Crank Thrust Bearing Set (OS:0.12)
SKU: 12300-85830-012 Weight: 0.250000 Brand: Price: $ 26.22 |
Crank Thrust Bearing Set (OS:0.12) | 1 | $ 26.22 | Optional | |
| 9 | 12242-96J00 Drive Gear
SKU: 12242-96J00 Weight: 2.000000 Brand: Price: $ 180.05 |
Drive Gear | 1 | $ 180.05 | ||
| 10 | 09103-10229 Crankshaft Bolt
SKU: 09103-10229 Weight: 0.100000 Brand: Price: $ 4.90 |
Crankshaft Bolt | 1 | $ 4.90 | ||
| 11 | 09160-10120 Washer (10x42x3)
SKU: 09160-10120 Weight: 0.100000 Brand: Price: $ 6.44 |
Washer (10x42x3) | 1 | $ 6.44 | ||
| 12 | 09283-91001 Crankshaft Oil Seal
SKU: 09283-91001 Weight: 0.120000 Brand: Price: $ 42.16 |
Crankshaft Oil Seal | 1 | $ 42.16 | ||
| 13 | 12100-96J01-050 Piston Set (OS:0.50)
SKU: 12100-96J01-050 Weight: 1.500000 Brand: Price: $ 260.48 |
Piston Set (OS:0.50) | 4 | $ 260.48 | Optional | |
| 14 | 12140-96J00-050 Piston Ring Set (OS:0.50)
SKU: 12140-96J00-050 Weight: 0.100000 Brand: Price: $ 86.30 |
Piston Ring Set (OS:0.50) | 4 | $ 86.30 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
