Suzuki DF 90A Parts Listings - 2014
S/N 09003F-410001 to 09003F-41XXXX

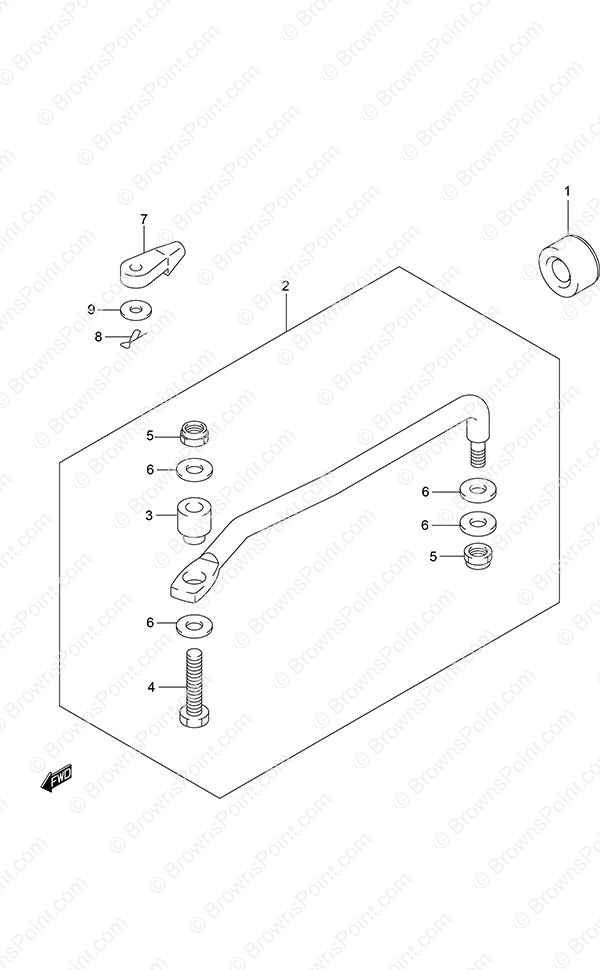

Fig. 43 - Drag Link
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41161-94400 Steering Cable Seal
SKU: 41161-94400 Weight: 0.060000 Brand: Price: $ 13.03 |
Steering Cable Seal | 1 | $ 13.03 | ||
| 2 | 67701-87L01 Drag Link Assembly
SKU: 67701-87L01 Weight: 2.000000 Brand: Price: $ 85.56 |
Drag Link Assembly | 1 | $ 85.56 | ||
| 3 | 67701-87L01 Drag Link Assembly
SKU: 67701-87L01 Weight: 2.000000 Brand: Price: $ 85.56 |
Drag Link Assembly | 1 | $ 85.56 | ||
| 4 | 67725-99E10 Replaced by 67725-99E20
SKU: 67725-99E10 Weight: 0.060000 Brand: Price: $ 7.19 |
Replaced by 67725-99E20 | 1 | $ 7.19 | ||
| 5 | 67726-99E00 Lock Nut
SKU: 67726-99E00 Weight: 0.060000 Brand: Price: $ 8.53 |
Lock Nut | 2 | $ 8.53 | ||
| 6 | 67728-99E00 Washer
SKU: 67728-99E00 Weight: 0.060000 Brand: Price: $ 2.74 |
Washer | 4 | $ 2.74 | ||
| 7 | 67467-89J01 Cable Connector
SKU: 67467-89J01 Weight: 0.060000 Brand: Price: $ 8.01 |
Cable Connector | 2 | $ 8.01 | ||
| 8 | 09385-06012 Clip
SKU: 09385-06012 Weight: 0.060000 Brand: Price: $ 2.02 |
Clip | 2 | $ 2.02 | ||
| 9 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.76 |
Washer (7x12x1.0) | 2 | $ 1.76 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
