Suzuki DF 90A Parts Listings - 2014
S/N 09003F-410001 to 09003F-41XXXX

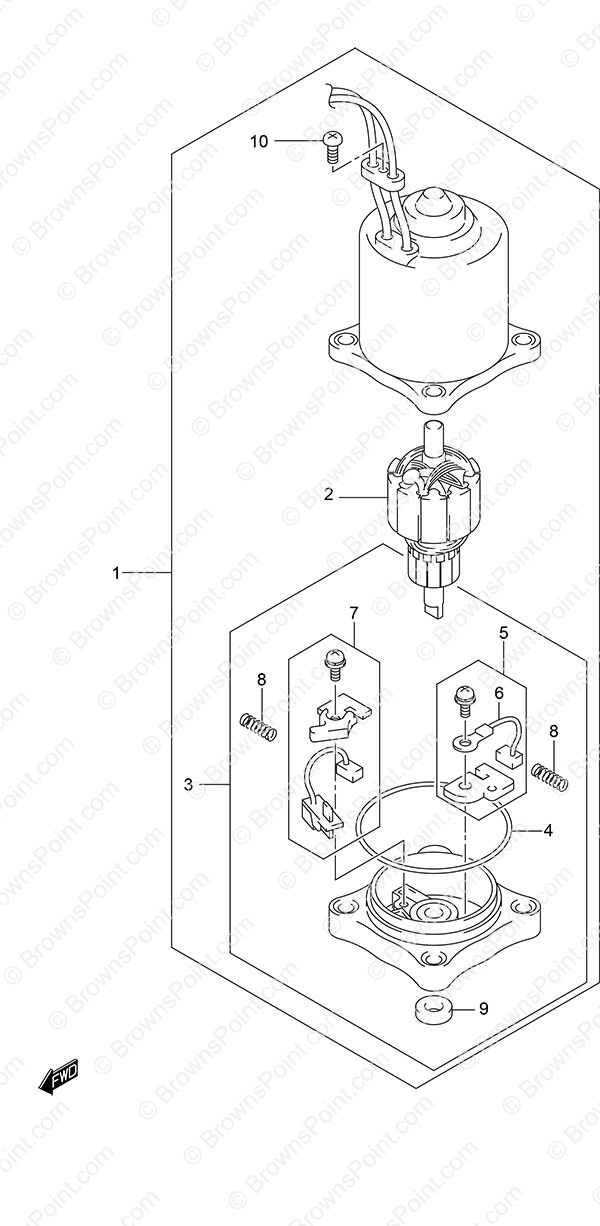

Fig. 34 - PTT Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 38100-87L04 PTT Motor Assembly
SKU: 38100-87L04 Weight: 0.000000 Brand: Price: $ 504.25 |
PTT Motor Assembly | 1 | $ 504.25 | ||
| 2 | 31311-93J00 Armature (NLA)
SKU: 31311-93J00 Weight: 0.850000 Brand: Price: $ 499.37 |
Armature (NLA) | 1 | $ 499.37 | ||
| 3 | 31173-94920 Brush Holder Assembly
SKU: 31173-94920 Weight: 1.000000 Brand: Price: $ 351.75 |
Brush Holder Assembly | 1 | $ 351.75 | ||
| 4 | 31123-94910 O-Ring
SKU: 31123-94910 Weight: 0.060000 Brand: Price: $ 15.23 |
O-Ring | 1 | $ 15.23 | ||
| 5 | 31133-90J20 Brush Assembly
SKU: 31133-90J20 Weight: 0.000000 Brand: Price: $ 9.99 |
Brush Assembly | 1 | $ 9.99 | ||
| 6 | 31133-94910 Brush
SKU: 31133-94910 Weight: 0.060000 Brand: Price: $ 13.00 |
Brush | 1 | $ 13.00 | ||
| 7 | 31136-90J20 Breaker Assembly
SKU: 31136-90J20 Weight: 0.060000 Brand: Price: $ 59.62 |
Breaker Assembly | 1 | $ 59.62 | ||
| 8 | 31135-94900 Spring
SKU: 31135-94900 Weight: 0.060000 Brand: Price: $ 5.20 |
Spring | 2 | $ 5.20 | ||
| 9 | 33799-97E00 Oil Seal
SKU: 33799-97E00 Weight: 0.060000 Brand: Price: $ 24.08 |
Oil Seal | 1 | $ 24.08 | ||
| 10 | 31111-94900 Yoke Screw
SKU: 31111-94900 Weight: 0.060000 Brand: Price: $ 4.54 |
Yoke Screw | 1 | $ 4.54 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
